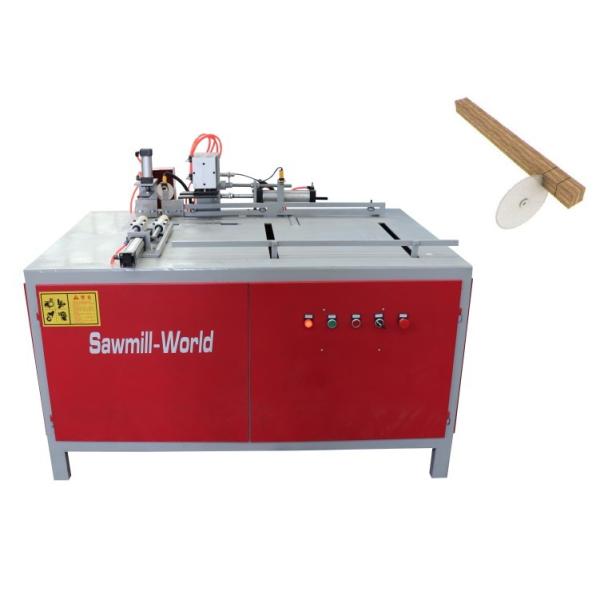

Block Cutting Machine For Wooden Pallet Automatic Small Wood Pallet Block Saw Cutting Cutter Band Saw Making Machine
Block Cutting Machine For Wooden Pallet Automatic Small Wood Pallet Block Saw Cutting Cutter Band Saw Making Machine
Block Cutting Machine For Wooden Pallet Automatic Small Wood Pallet Block Saw Cutting Cutter Band Saw Making Machine
Block Cutting Machine For Wooden Pallet Automatic Small Wood Pallet Block Saw Cutting Cutter Band Saw Making Machine
Block Cutting Machine For Wooden Pallet Automatic Small Wood Pallet Block Saw Cutting Cutter Band Saw Making Machine
Block Cutting Machine For Wooden Pallet Automatic Small Wood Pallet Block Saw Cutting Cutter Band Saw Making Machine
Block Cutting Machine For Wooden Pallet Automatic Small Wood Pallet Block Saw Cutting Cutter Band Saw Making Machine
Block Cutting Machine For Wooden Pallet Automatic Small Wood Pallet Block Saw Cutting Cutter Band Saw Making Machine
Block Cutting Machine For Wooden Pallet Automatic Small Wood Pallet Block Saw Cutting Cutter Band Saw Making Machine
Block Cutting Machine For Wooden Pallet Automatic Small Wood Pallet Block Saw Cutting Cutter Band Saw Making Machine
Block Cutting Machine For Wooden Pallet Automatic Small Wood Pallet Block Saw Cutting Cutter Band Saw Making Machine
Block Cutting Machine For Wooden Pallet Automatic Small Wood Pallet Block Saw Cutting Cutter Band Saw Making Machine
Specifications
Brand Name :
SH
Model Number :
JD-1500
Certification :
ISO9001
Place of Origin :
Shandong Province, China
MOQ :
1 SET
Price :
US $6,800 - 18,500 / Set
Payment Terms :
T/T, Western Union
Supply Ability :
1500sets/year
Delivery Time :
within 20 days
Packaging Details :
container loading of wood chamfer machine
Name :
Automatic Wood Pallet Block Saw Cutting Machine
Saw Blade diameter :
400mm
Processing max. length :
1500mm
Cutting thickness :
50 to 120mm
Cutting width :
60- 200mm
Total power :
7.5kw
Efficiency :
1500-1800P/H
Weight :
350kgs
Warranty :
1 Year
After-sales service :
video technical support, spare parts
Description

Automatic Pallet Block Cutting Machine

  • Technical data
Model JD-1500
Cutting wood max. length 1500mm
Cutting Thickness 50-120mm
Cutting Width 60-200mm
Pallet foot pier size 30-200mm
Saw Diameter 400mm
Motor 7.5kw/3phase
Production capacity 1500-1800P/H
Weight 350kgs
  • Detailed Image

Block Cutting Machine For Wooden Pallet Automatic Small Wood Pallet Block Saw Cutting Cutter Band Saw Making Machine

Block Cutting Machine For Wooden Pallet Automatic Small Wood Pallet Block Saw Cutting Cutter Band Saw Making Machine

Related Products:

Wood Pallet Machine Lumber Cutoff Saw, Automatic Woodworking Cross Cutoff Saw With Table

Automatic Wood Cut Off Saw Machine

Model
DZ-450
DZ-600
Saw Blade diameter
450mm*30mm
600mm*30mm
Feeding table length
2m/ 4m/ 6m
2m/ 4m/ 6m
Discharge table length
1200mm
1200mm
Cutting height
10-120mm
10-140mm
Cutting width
30- 200mm
30- 300mm
Cutting section thickness*width
Max. 120*150mm,100*200mm
Max.120*300mm,140*280mm
Feeding speed
5-30m/min
5-30m/min
Cutting speed
40pcs/min
45pcs/min
Cutter spindle rotation speed
3000rpm
3000rpm
Servo drive motor power
0.75kw
1kw
Cutting motor power
7.5kw/11HP
11kw/15HP
Total power
8.5kw
12.5kw
Pressing method
Cylinder, 0.5-0.7Mpa
Cylinder, 0.5-0.7Mpa
Cutting tolerance
In +/-1mm
In +/-1mm
Dust collection port
100mm*2pc
100mm*2pc
Electrical components
Schneider
Schneider
PLC Touching screen
Siemens
Siemens
Voltage
380v 50Hz 3 phase
380v 50Hz 3 phase

Block Cutting Machine For Wooden Pallet Automatic Small Wood Pallet Block Saw Cutting Cutter Band Saw Making MachineBlock Cutting Machine For Wooden Pallet Automatic Small Wood Pallet Block Saw Cutting Cutter Band Saw Making Machine

Wood Chamfer Machine

Technical data:

Model EPWC-7050
Convey servo motor 1kw
Hydraulic motor 2.2kw
Total motor 7.2kw
Voltage 380v 50Hz 3phase
Cutter type 45° V milling cutter, left and right
Working length 600-1500mm
Working thickness 17-35mm
Working width 80-150mm
Productivity 500-700pc/h
Hydraulic pressure 0.4-0.5Mpa
Control system Siemens
Machine dimension 4450*800*1400mm
Packing dimension 3220*920*1760mm
Machine weight 1040kg

Photo:

Block Cutting Machine For Wooden Pallet Automatic Small Wood Pallet Block Saw Cutting Cutter Band Saw Making Machine

Multi Blades Circular Saw for wood panels cutting off

  • cutting both ends of the panels in same length
  • cutting length is adjustable
  • with auto feeding
  • chain drive

Technical data:

Multi blades cutting off circular saw
Model QT2000 QT3000 QT4000
Cutting height 100mm 100mm 100mm
Cutting width 2000mm 3000mm 4000mm
Circular blade diameter 300mm 300mm 300mm
Main motor power 3kw x2 3kw x3 3kw x4
weight 620kgs 820kgs 1020kgs
Overall size 3200x1800x1150mm 2200x1800x1150mm 4800x1800x1150mm

Photos:

Block Cutting Machine For Wooden Pallet Automatic Small Wood Pallet Block Saw Cutting Cutter Band Saw Making Machine

Pneumatic Cross Cut Sawmill For Planks
Model SH274 SH276
Max Cutting Width

150mm(Thick about 110mm)

300mm(Thick about 40mm)

650mm(Thick about 50mm)

200mm(Thick about200mm)
Saw Blade Diameter 450MM 620MM
Motor Power 5.5KW 7.5KW
Weight 300KG 550KG
Overall Dimension 2900*930*1100MM 4250*1150*1300MM
Block Cutting Machine For Wooden Pallet Automatic Small Wood Pallet Block Saw Cutting Cutter Band Saw Making Machine
