SS1873-G4 K450 SNAP ON BOTTLING LINE CONVEYOR GRIPPER CHAIN FOR ELEVATOR CONVEYOR SYSTEM
SS1873-G4 K450 SNAP ON BOTTLING LINE CONVEYOR GRIPPER CHAIN FOR ELEVATOR CONVEYOR SYSTEM
SS1873-G4 K450 SNAP ON BOTTLING LINE CONVEYOR GRIPPER CHAIN FOR ELEVATOR CONVEYOR SYSTEM
SS1873-G4 K450 SNAP ON BOTTLING LINE CONVEYOR GRIPPER CHAIN FOR ELEVATOR CONVEYOR SYSTEM
SS1873-G4 K450 SNAP ON BOTTLING LINE CONVEYOR GRIPPER CHAIN FOR ELEVATOR CONVEYOR SYSTEM
SS1873-G4 K450 SNAP ON BOTTLING LINE CONVEYOR GRIPPER CHAIN FOR ELEVATOR CONVEYOR SYSTEM
Specifications
Place of Origin :
China
Brand Name :
Zhiyue
Certification :
ISO9001/FDA
Model Number :
SS1873-G4-K450
MOQ :
100mtrs
Price :
0-30usd
Packaging Details :
10ft/box
Delivery Time :
5-30days
Payment Terms :
T/T LC DP WESTERNUNION MONERYGRAM
Supply Ability :
10000mtrs/M
Structure :
Top Chain
Function :
Conveyor Chain
Standard or Nonstandard :
Standard
Material :
POM
Color :
brown and white
link chains :
ss304 or carbon steel
Description
SS1873-G4 SNAP ON BOTTLING LINE CONVEYOR GRIPPER CHAIN FOR ELEVATOR CONVEYOR SYSTEMS

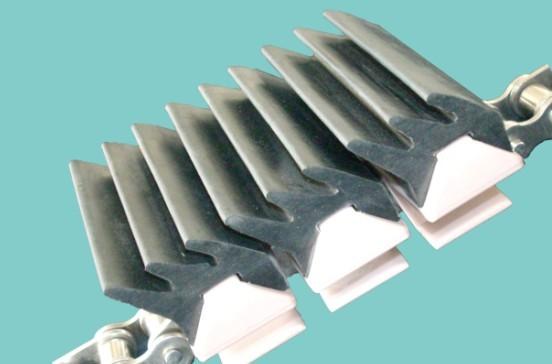

The Gripper chain is designed for vertical conveyors where the items are conveyed between

two uni Grip links.The gripper 1873 chain supplied with moulded rubber inserts.

The main application for Grip 1873-G4 is vertical conveying of cans or bottles.

The flights for the 1873-G4 chain are the Snap-On type. The uni Grip chains have a

0.75 in. pitch side flexing roller base chain. The recommended temperature area for the uni

Grip chain is -40 to +80°C (-40 to +176°F).

Pitch: 19.05mm

Width: 82.5mm /114.3mm

Code: 1873SS-G4-K325

1873SS-G4-K325

Materials: POM Rubber inserts stainless steel base chains
SS1873-G4 K450 SNAP ON BOTTLING LINE CONVEYOR GRIPPER CHAIN FOR ELEVATOR CONVEYOR SYSTEM

SS1873-G4 K450 SNAP ON BOTTLING LINE CONVEYOR GRIPPER CHAIN FOR ELEVATOR CONVEYOR SYSTEM

SS1873-G4 K450 SNAP ON BOTTLING LINE CONVEYOR GRIPPER CHAIN FOR ELEVATOR CONVEYOR SYSTEM

SS1873-G4 K450 SNAP ON BOTTLING LINE CONVEYOR GRIPPER CHAIN FOR ELEVATOR CONVEYOR SYSTEM

snap on chains and flex chains.pdf
