white color Plastic table top chains 440tab-k472 flexible top chains pitch 19.05mm slat top conveyor chain
white color Plastic table top chains 440tab-k472 flexible top chains pitch 19.05mm slat top conveyor chain
white color Plastic table top chains 440tab-k472 flexible top chains pitch 19.05mm slat top conveyor chain
white color Plastic table top chains 440tab-k472 flexible top chains pitch 19.05mm slat top conveyor chain
white color Plastic table top chains 440tab-k472 flexible top chains pitch 19.05mm slat top conveyor chain
white color Plastic table top chains 440tab-k472 flexible top chains pitch 19.05mm slat top conveyor chain
Specifications
Place of Origin :
China
Brand Name :
Zhiyue
Certification :
ISO9001
Model Number :
LF440tab-k472
MOQ :
100mtrs
Price :
0-30usd
Packaging Details :
10ft/box
Delivery Time :
5-30days
Payment Terms :
T/T LC DP WESTERNUNION MONERYGRAM
Supply Ability :
10000mtrs/M
Structure :
Top Chain
Function :
Conveyor Chain
Standard or Nonstandard :
Standard
Material :
POM
Color :
white
Description

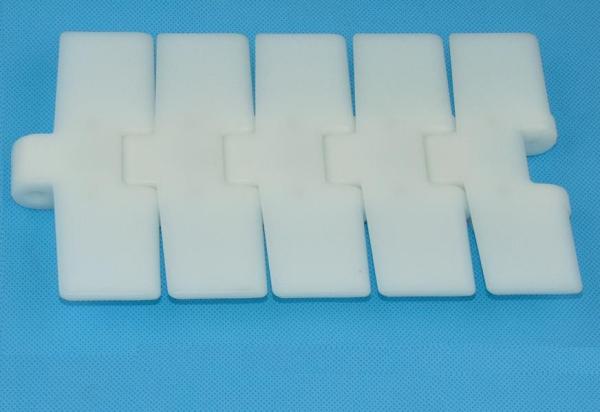

white color Plastic table top chains 440tab-k472 flexible top chains pitch 19.05mm slat top conveyor chains

The pitch of 440 TAB is half of the pitch of the chains 880.

The smaller pitch 19.1 mm (0.75 in.) enables tight transfers and allows the use of a shorter dead plate.

The reduced gap size between links enables more stable conveying small products.

The 440 TAB is suitable for short conveyors and high speed applications.
white color Plastic table top chains 440tab-k472 flexible top chains pitch 19.05mm slat top conveyor chain
Code Width Weight Backflex Radius Min. Radius
mm kg/m mm mm
LF440TAB-K472 120 1.50 50

175

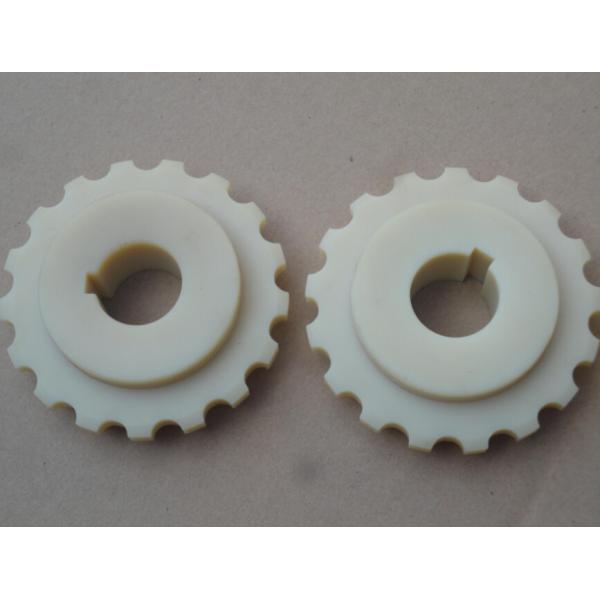

Sprockets
white color Plastic table top chains 440tab-k472 flexible top chains pitch 19.05mm slat top conveyor chain

No. of teeth

Pitch Dia.

Outside Dia.

Bore

mm

mm

mm

17

103.7

104.7

○/□min.20 ○/□max.40

19

115.7

117

21

127.8

129

23

139.9

140.7

25

152

153

white color Plastic table top chains 440tab-k472 flexible top chains pitch 19.05mm slat top conveyor chain

Plastic flat top chains.pdf
