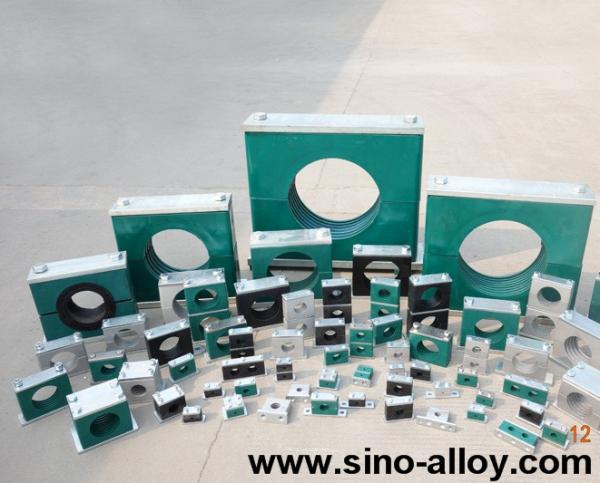

Hydraulic heavy duty pipe clamps / heavy series pipe clamps /heavy pipe clamps/tube clamps
Hydraulic heavy duty pipe clamps / heavy series pipe clamps /heavy pipe clamps/tube clamps
Specifications
Place of Origin :
China
Brand Name :
YMP
Certification :
ISO 9001
Model Number :
YMPH*G*
MOQ :
50
Price :
1 USD/PC
Packaging Details :
in cartons
Delivery Time :
7 days
Payment Terms :
T/T
Supply Ability :
100000 pieces per week
Description
1) Size range:
fit for tube / pipe size O.D. 6mm -508 mm
2) Structure:
Assembly including cover plate, welded plate (elongated plate available), clamp bodies (2), high strength bolts (2).
Heavy duty rail nut pipe clamps (H-G3 series) available: cover plate + clamp body(2)+ bolts(2) + rail nuts(2), installed on channels or rails.
Stacking heavy duty pipe clamps (H-G5) available (max. 5 layers): Stackable Bolts + Clamp body + safety locking plates.
3) Material:
Cover Plate: Galvanized Carbon steel / stainless steel(304/316)
Welded Plate: Galvanized Carbon steel / stainless steel (304/316)
Bolts: High strength carbon steel(galvanized) / stainless steel (304/316)
Clamp Body: Polypropylene(PP) / Polyamide(PA) / Aluminum(AL)
Excellent UV, weathering and chemical resistance - even under extreme conditions.
4) Working Temperature:
PP -30 centi degree up to +90 centi degree in dark green colour
PA -40 centi degree up to +120 centi degree in dark colour
Alu. for high temperature application.
5) Application:
Heavy duty pipe clamps are suitable for oil, liquid and gas pipe / tube installation and fastening in the hydraulic system in different areas such as the metallurgy, construction machinery, petroleum industry, chemical industry, ship buliding, power station and so on.
