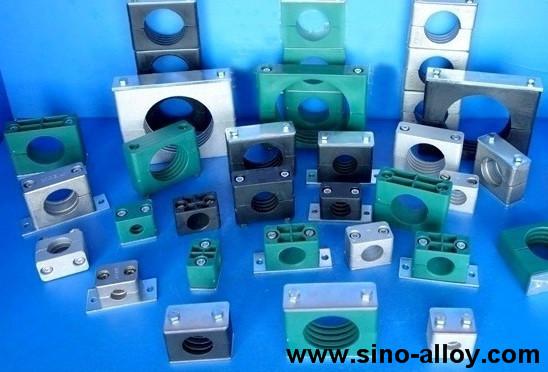

Standard hydraulic pipe clamp, PP grooved inside, 304 stainless steel plates
Standard hydraulic pipe clamp, PP grooved inside, 304 stainless steel plates
Specifications
Place of Origin :
China
Brand Name :
YMP
Certification :
ISO 9001
Model Number :
304SS-YMPLPG3
MOQ :
30
Packaging Details :
in cartons
Delivery Time :
7 days
Payment Terms :
T/T, L/C
Usage :
Pipe Clamp
Structure :
Stauff clamp
Standard or Nonstandard :
Standard
Description
Light duty pipe clamps / standard series tube clamps / standard hydraulic pipe clamps & tube clamps according to DIN 3015 part 1, PP clamp body and 304 stainless steel plates and bolts:
1) Size range:
fit for tube / pipe size O.D. 6mm -102mm
2) Structure:
Assembly including cover plate, welded plate (elongated plate available), clamp bodies (2), high strength bolts (2).
Rail clamps (L-G9 series) available: cover plate + clamp body(2)+ bolts(2) + rail nuts(2), installed on steel channels or rails.
Stackalbe Clamps (L-G13) available (max. 5 layers): Stackable Bolts + Clamp body + safety locking plates.
3) Materials:
Cover Plate: 304 stainless steel
Welded Plate: 304 stainless steel
Bolts: 304 stainless steel
Clamp Body: Polypropylene(PP), grooved inside
Excellent UV, weathering and chemical resistance – even under extreme conditions.
4) Working Temperature:
PP -30 centi degree up to +90 centi degree in dark green colour
5) Application:
This product is suitable for oil, liquid and gas pipe /tube installation and fastening in the hydraulic system in different areas such as the metallurgy, construction machinery, petroleum industry, chemical industry, ship buliding, power station and so on.
