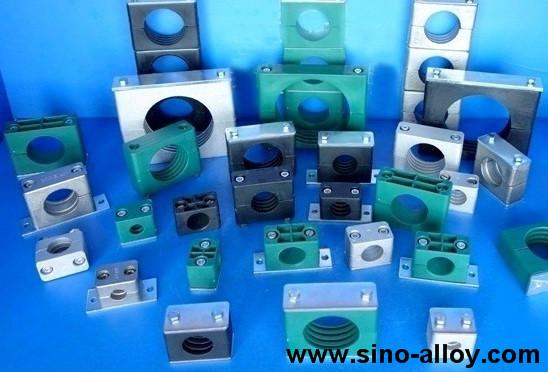

Standard pipe clamps, Polyamide inner grooved inside, galvanized steel
Standard pipe clamps, Polyamide inner grooved inside, galvanized steel
Specifications
Place of Origin :
China
Brand Name :
YMP
Certification :
ISO 9001
Model Number :
YMPLNG3
MOQ :
50
Price :
1 USD/PC
Packaging Details :
in cartons
Delivery Time :
7 days
Payment Terms :
T/T
Supply Ability :
100000 pieces per week
Usage :
Pipe Clamp
Standard or Nonstandard :
Standard
Description
1) Size range:
fit for tube / pipe size O.D. 6mm -102mm
2) Structure:
Assembly including cover plate, welded plate (elongated plate available), clamp bodies (2), high strength bolts (2).
Rail clamps (L-G9 series) available: cover plate + clamp body(2)+ bolts(2) + rail nuts(2), installed on steel channels or rails.
Stackalbe Clamps (L-G13) available (max. 5 layers): Stackable Bolts + Clamp body + safety locking plates.
3) Materials:
Cover Plate: Galvanized Carbon steel(mild steel)
Welded Plate: Galvanized Carbon steel
Bolts: Galvanized carbon steel
Clamp Body: Polyamide (PA)
Excellent UV, weathering and chemical resistance – even under extreme conditions.
4) Working Temperature:
PA -40 centi degree up to +120 centi degree in dark green colour
5) Application:
This product is suitable for oil, liquid and gas pipe /tube installation and fastening in the hydraulic system in different areas such as the metallurgy, construction machinery, petroleum industry, chemical industry, ship buliding, power station and so on.
