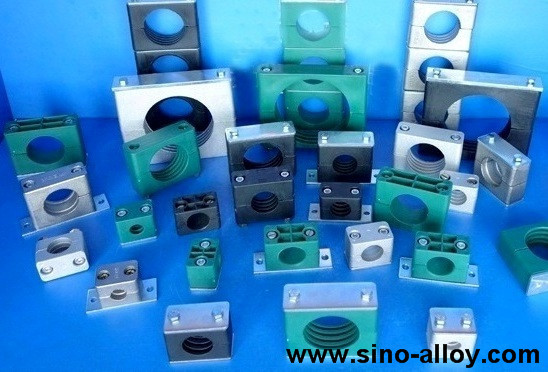

Standard hydraulic pipe clamps with aluminum pipe clamp body,galvanized steel plates&bolts
Standard hydraulic pipe clamps with aluminum pipe clamp body,galvanized steel plates&bolts
Specifications
Place of Origin :
China
Brand Name :
YMP
Certification :
ISO 9001
Model Number :
YMPLLG
MOQ :
50
Packaging Details :
in cartons
Delivery Time :
7 days
Payment Terms :
T/T
Supply Ability :
100000 pieces per week
Usage :
Pipe Clamp
Material :
Aluminium
Structure :
Stauff clamp
Standard or Nonstandard :
Standard
Description

Standard series stauff pipe clamps with aluminum clamp body according to DIN 3015-1:

Standard series hydraulic aluminum pipe clamps / tube clamps according to DIN 3015 part 1, with galvanized steel plates and bolts, details as below:
1) Size range:
fit for tube / pipe size O.D. 6mm -102mm
2) Structure:
Assembly including cover plate, welded plate (elongated plate available), aluminum pipe clamp bodies (2), high strength bolts (2).
Rail nut aluminum pipe clamps (L-G9 series) available: cover plate + aluminum pipe clamp body(2)+ bolts(2) + rail nuts(2), installed on steel channels or rails.
Stacking aluminum pipe clamps (L-G13) available (max. 5 layers): Stacking Bolts + aluminum pipe clamp body + safety locking plates.
3) Materials:
Cover Plate: Galvanized Carbon steel(mild steel)
Welded Plate: Galvanized Carbon steel
Bolts: Galvanized carbon steel
Clamp Body: Aluminum
Excellent UV, weathering and chemical resistance – even under extreme conditions.
4) Working Temperature:
up to 300 ℃
5) Features:
Hyraulic aluminum pipe clamps produced by Younglee have below advantages.
- Excellent UV, weathering and chemical resistance – even under extreme conditions.
- Strong strength, accurate dimensions, good corrosion resistance and durable in use;
6) Application:
Standard hydraulic aluminum pipe clamp is suitable for oil, liquid and gas pipe /tube installation and fastening in the hydraulic system under high termperature in different areas such as the metallurgy, construction machinery, petroleum industry, chemical industry, ship buliding, power station and so on.
