Honed tube is widely used for producing hydraulic cylinders and pneumatic cylinders, our factory is one of the leading hydraulic cylinder honed tube suppliers in China. We manufacture and supply cylinder honed tubes made of carbon steel grades and stainless steel grades.

Our factory's honed tube is produced by honing process or skiving & roller burnishing process, using “Suitable To Hone” Cold Drawn Seamless Tubes. The type of the processing is determined by the size, available mold and the request of the customer.

Our Steel Honed tubes mostly is made of high quality carbon steel grades ST52.3, SAE 1020. The raw material steel mother tubes are from top quality China steel manufacturer.

Product details of our honed tubes

Here below is the detailed description of our honed cylinder tubes.

Inner Diameter Range: 32 mm to 800 mm;

Length: random length and fixed length available. Max. length 15m.

Tube Straightness: max 1mm per 1000mm;

Manufacturing method: Seamless, Hot Rolled, Cold Rolled, Cold Drawn

Delivery Condition: BK, BK+S

Inside surface Roughness: Ra 0.2μm to Ra 0.4μm

Inner diameter Tolerance: ISO H7,H8,H9

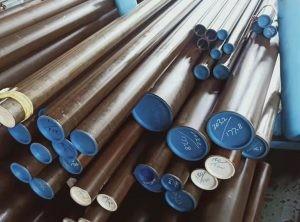

Protection: Anti-rust oil on inside and outside surface, plastic caps in both ends.

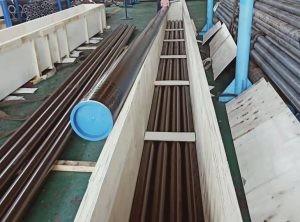

Packing: Bundle with steel strip and PE sheet or wooden case

Our honed cylinder tubes are available in both metric dimensions and imperial dimensions.

Size list of honed tubes

With many years' experiences, we had supplied our honed tubes to cusomters in home and oversea countries, including Vietnam, USA, Canada, Singapore, Australia, UAE, South Africa, Indonisia, Thailand and so on.

As one of the leading hydraulic cylinder honed tube manufacturers and suppliers in China, we sell hydraulic honed tubing to customers and provide full range of technical support. Please contact us for more information.
