Multifunctional Non Woven Face Mask Making Machine Servo Shifted Accurate Positioning

Introduction

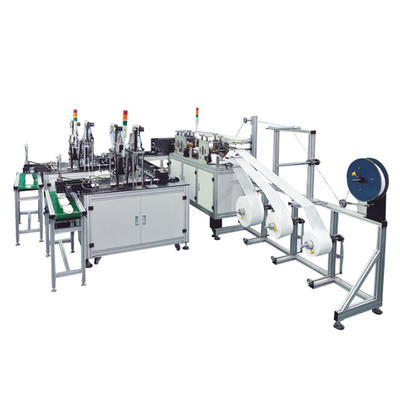

This Non Woven Face Mask Making Machine is a fully automatic one-to-two mask machine, one body machine drives two ear band machines. After the main body machine outputs the mask body, the mask body sheet is conveyed to the turning mechanism by a conveyor belt structure. The reversing mechanism is used to flip the mask plate onto the belt connected to the ear band machine, and then the mask sheet is conveyed to the first mask plate on the front of the ear band machine through the conveyor belt, and finally the mask sheet is placed on the ear band by the cylinder pressing In the mask plate of the machine, the ear band machine is used to complete the welding of the ear bands of the mask and the edging, thereby completing the production of an ear band mask product. This machine adopts PLC, touch screen control, single-phase motor for main conveyor belt, stepping motor turning, precise transmission, stable control and adjustable speed.

Features

1. It’s all-in-one designed and full automatically from material feeding to product finishing.

2. Product can be shaped at a constant pressure which is no harmful to the materials but still with good filtration.

3. It’s servo shifted with accurate positioning, the knife is imported to ensure a smooth cutting edge.

4. Multifunctional with reasonable design, high efficient.

Welding principle: by means of air compressor to provide air power into the cylinder for a linear reciprocating motion of gas and raising the pressure in compressor cylinder piston compression air supply from one side of the piston can produce pressure, air pressure forces the pistons to generate thrust, through the titanium alloy welding head with two ultrasonic welding head surface rubbing against each other (high frequency vibration of tens of thousands of times per second) to form a fusion between the molecular layer
