System Construction

Suitable Raw Materials

Features

1. High stability, low failure rate, beautiful appearance without rust.

2. Computer PLC programming control, servo drive, high degree of automation.

3. Photoelectric detection of raw materials to avoid mistakes and reduce waste.

4. The automatic mask making machine is automatic from material feeding to mask collection.
5. High automation in ear-loop welding, edge wrapping, counting, and material discharging.

6. The ultrasonic technique does no harm to the characteristic of the material. Easy and safe operation.
7. Artistic and durable, aluminum alloy board, lean and practicality.
8. Faster, Rotary connection device of Independent innovation design.
9. More stable, upgraded machine, touch screen, Taiwan photoelectric detection, stable performance, and low failure rate.

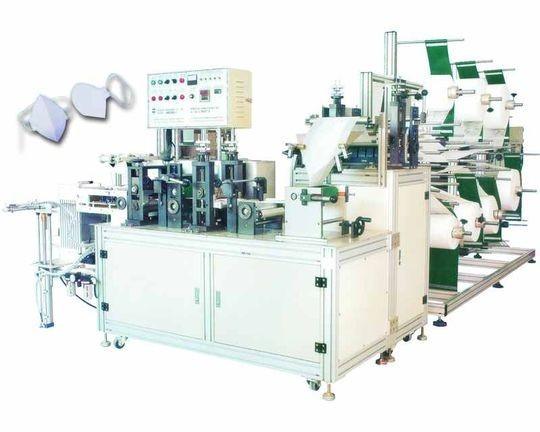

The equipment structure

1. Equipment configuration cloth roll Max 6 sets, roll diameter Max600mm;
2. Cloth roll using the active roll method, according to the tension roller position automaticroll;
3. Nose strip welding module: including nasal strip roll, nasal strip flat, fixed long transport, cutting, welding function;
4. Fabric composite welding unit: the use of ultrasonic welding head and steel mold welding method, welding roller parallelity, position precision adjustable, welding system has cooling function;
5. Earband welding unit; the equipment earband welding using earband type (non-head-mounted), the whole roll onthe, after drive and tension control, fixed long cut, earband length can be adjusted, using ultrasonic welding, welding solid;
6. The equipment has the printing function, the printing and dyeing Log position can be adjusted, the content needs to be provided in advance by Party A;
7. Pull ingest drive unit, using servo motor control main drive roller, drive cloth, smooth operation, pressure precision adjustable;
8. Folding molding unit: the use of adjustable triangular plate, height, angle adjustable, to ensure that the mask is neutral to fold.
9. Forming welding unit: the use of ultrasonic welding, welding solid, clear pattern, welding system pressure adjustable, welding system has cooling device, ultrasonic welding system technical parameters adjustable;
10. Forming cutting unit: rolling knife wheel: knife pad wheel. Pressure adjustable, material: high-speed steel.
11. Waste separation unit, automatic scrap frame;
12. Control system: the device contains PLC control system, touch screen operating system.

FAQ

1. Q: Can you provide overseas services?

A: Yes, we can.

2. Q: How to use the machine?

A: Before sending the packaging machine to you, we will install it and test it, and then pack the whole device in a wooden box, so you do n’t need to install it again,

3. Q: Test packaging before shipment?

A: we will surely 100% of the experimental test machine will be normal without problems.

4. Q: What is the warranty period?

A: One year warranty for the whole machine.

5. Q: What is the payment term?

A: Accept L / C or TT.

6. Q: What is the delivery time?

A: 15-20 days after receiving the deposit. Contact: 7 * 24 hours online service If you need to pack other materials / products or have any questions about the packaging machine, please feel free to email me or call us.
