High Accuracy Thermal Imaging Thermometer / Thermal Infrared Thermometer
High Accuracy Thermal Imaging Thermometer / Thermal Infrared Thermometer
Specifications
Brand Name :
OEM
Model Number :
OEM
Certification :
CE FDA
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
Enough stock
Delivery Time :
7 days
Packaging Details :
Standard Carton Box or Wooden Case
Name :
Heat Signature Sensor
Temperature range :
- 20 - 300 C / 4 F - 572 F
Temperature Sensitivity :
0.07°C
Display :
3.2"
Application :
Industrial, Commercial, etc
OEM :
Available
Description

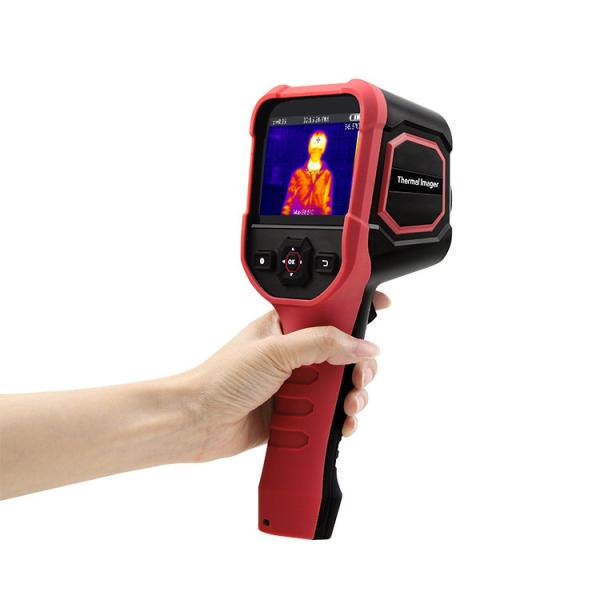

LCD Display Thermal Imaging Thermometer , Red Color Imaging IR Thermometer
Product Description

IR Thermal Imagers are designed with infrared detector (80*60 pixel , as the core and supported with high-quality optical lens, ease-of-use operating system. It is precise to measure, clear to view on images, easy to carry with and offers a price you can totally afford. Choosing a UTi80 means a significant work effectiveness and high temperature measurement accuracy, which is especially a perfect choice for users who are already used to point-contact thermometers.
Applicable industries:electric power,construction,electronics,smelting,energy,railway,automobile,petrochemical.

Specifications

Specifications
Model UTi80 UTi100 UTi160A
Sensor Type Uncooled Focal Plane Arrays
Resolution 80 x 60 100 x 80 160*120
View of View / Minimum Focus Distance 10°×7.5°/0.1m 12°×9.4°/0.1m 20°×15°/0.1m
Spatial Resolution (IFOV) 2.2mrad
Image Mode Infrared
Focus Manual
Infrared Spectral Band 8~14um
NETD ≤0.08℃@30℃
Temperature Range -20℃~300℃
Accuracy ±2°C or ±2% (whichever is greater)
Features
Display Type 2.8"TFT LCD; Ratable
Palettes Iron, Iron-Invert, Rainbow, Feather, Grey, Grey Inverted
Images Adjustable Auto/Manual
Image Format *·UIR
Video Output Support: PAL(50Hz) or NTSC(60Hz) (socket selection required)
Measurement Mode Movable Spot, Area(MAX,MIN)
Parameters Setting Emissivity, Distance, Temperature, Relative Humidity
Self Temperature Calibration Every 60 Seconds
High/Low Temperature Alarm √
Laser Pointer √
Image Capture √
Image Storage 2GB SD Card
Temperature Units ℃/℉
Support Languages English/Simplified Chinese
Factory Setting √
Power Mode Standard / Power Saving
Analyzing Software Standard Version
Water Proof Rating IP54
Impact/Vibration 25G/2G

Consideration

1. During the installation and use of the product, all electrical safety regulations must be strictly observed.

2. Please make sure that the product is installed firmly.

3. If the product does not work properly, please contact the after-sales service. Do not disassemble or modify the product in any way. (The company does not assume any responsibility for problems caused by unauthorized modification or repair.

4. Do not immerse the product in water.

5. If the equipment does not work properly, please do not disassemble it for repair, otherwise it will affect the equipment warranty.

6. Avoid extreme or extreme environments such as extreme high temperature (or low temperature), high humidity, vibration, radiation, and chemical corrosion during installation and use.

FAQ

Q1: Can I get some samples?

A: For test instruments we accept sample order but not free.

Q2: How to ship the orders and how to pay?

A: We usually ship by courier such as Fedex, TNT, DHL, EMS, UPS ect.

We accept payment T/T, WU, Paypal, Alipay, Wechat ect.

Q3: What's your MOQ?

A: This depend on the model number, most models MOQ is 1pcs.

Q4: How about delivery time?

A: Popular model always in stock, so can deliver same day after payment confirmed. (Chinese holiday not included)

Q5: Is there a discount?

A: Different quantity has different discount.
