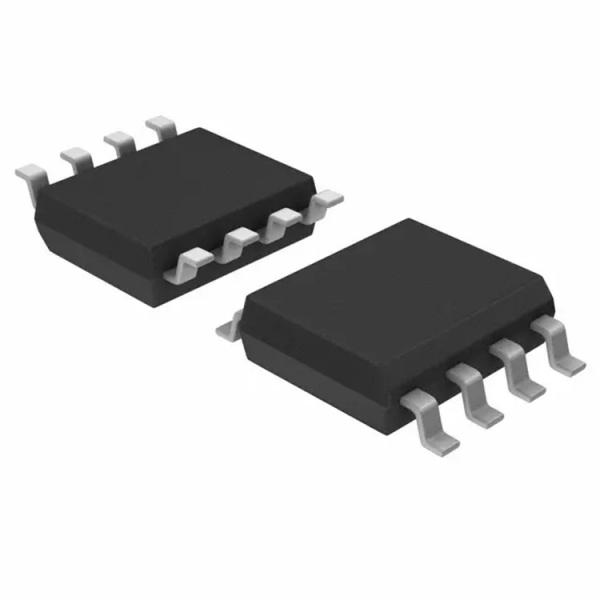

diodes/TBD62783AFNG Transistor Array IC USB Power / Load Switch TOSHIBA
diodes/TBD62783AFNG Transistor Array IC USB Power / Load Switch TOSHIBA
diodes/TBD62783AFNG Transistor Array IC USB Power / Load Switch TOSHIBA
diodes/TBD62783AFNG Transistor Array IC USB Power / Load Switch TOSHIBA
diodes/TBD62783AFNG Transistor Array IC USB Power / Load Switch TOSHIBA
diodes/TBD62783AFNG Transistor Array IC USB Power / Load Switch TOSHIBA
diodes/TBD62783AFNG Transistor Array IC USB Power / Load Switch TOSHIBA
diodes/TBD62783AFNG Transistor Array IC USB Power / Load Switch TOSHIBA
diodes/TBD62783AFNG Transistor Array IC USB Power / Load Switch TOSHIBA
diodes/TBD62783AFNG Transistor Array IC USB Power / Load Switch TOSHIBA
Specifications
Brand Name :
TOSHIBA
Model Number :
TBD62783AFNG(Z,EL)
Certification :
/
Place of Origin :
N/S
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
4000 PCS
Delivery Time :
2-7 work days
Brand :
TOSHIBA
Operating Supply Voltage :
- 0.5 V to 50 V
Output current (Max) :
500mA
Output Type :
P-Channel
Ratio (Input:Output) :
1:1
Mounting Type :
SMT
Description

TOSHIBA TBD62783AFNG(Z,EL) USB power switch/load switch

diodes/TBD62783AFNG Transistor Array IC USB Power / Load Switch TOSHIBAProduct Categories USB power switch/load switch, power management
Output Current (Max) 500mA
Output Type P-Channel
Ratio (Input:Output) 1:1
Failsafe -
Mounting Type SMT
Number of Outputs 8
Brand Toshiba
Load Voltage 50V
Supply Voltage (Max) Not Required
Characteristics -
Operating temperature -40~+85℃
Input Type Non-Inverting
Series
 -
Switch Type General Purpose
Number of Outputs 8
Output Configuration High Side
Output Current (Max) 500mA
Supply Voltage (Vcc/Vdd) Not Required
Interface On/Off
Package/Housing SOIC18
Original manufacturer Toshiba Corporation
8channel source type DMOS transistor array
TBD62783A series are DMOS transistor array with 8 circuits. It has a clamp diode for switching inductive loads built-in in each output. Please be careful about thermal conditions during use.
Precautions for Using
This IC does not include built-in protection circuits for excess current or overvoltage. Therefore, if the short−circuit between adjacent pins or between outputs, the short-to-power or ground fault has occurred, the current or voltage beyond the absolute maximum rating is impressed, and IC destroys. When designing, please consider enough in power supply line, output line and GND line. In addition, so as not to continue to flow a current that exceeds the absolute maximum rating of the IC, please insert the appropriate fuse in the power supply line.
