Fixed Output EMI Filter IC 260kHz LM2672MX-5.0/NOPB For EMI Chamber
Fixed Output EMI Filter IC 260kHz LM2672MX-5.0/NOPB For EMI Chamber
Fixed Output EMI Filter IC 260kHz LM2672MX-5.0/NOPB For EMI Chamber
Fixed Output EMI Filter IC 260kHz LM2672MX-5.0/NOPB For EMI Chamber
Fixed Output EMI Filter IC 260kHz LM2672MX-5.0/NOPB For EMI Chamber
Fixed Output EMI Filter IC 260kHz LM2672MX-5.0/NOPB For EMI Chamber
Fixed Output EMI Filter IC 260kHz LM2672MX-5.0/NOPB For EMI Chamber
Fixed Output EMI Filter IC 260kHz LM2672MX-5.0/NOPB For EMI Chamber
Fixed Output EMI Filter IC 260kHz LM2672MX-5.0/NOPB For EMI Chamber
Fixed Output EMI Filter IC 260kHz LM2672MX-5.0/NOPB For EMI Chamber
Fixed Output EMI Filter IC 260kHz LM2672MX-5.0/NOPB For EMI Chamber
Fixed Output EMI Filter IC 260kHz LM2672MX-5.0/NOPB For EMI Chamber
Specifications
Brand Name :
Texas Instruments
Model Number :
LM2672MX-5.0/NOPB
Certification :
ISO & TUV
Place of Origin :
N/S
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
9999999+PCS
Delivery Time :
2-7 work days
Type :
EMI Filter
Input impedance :
250VDC/100MOHM MIN
Application :
EMC Chamber
Temperature range :
-20 /+80 oC
Description

EMI Filter IC Texas Instruments/TI LM2672MX-5.0/NOPB

ECAD Module PCB Symbol,Footprint & 3D Model
Supply and Demand Status Limited
Fake Threat In the Open Market 37 pct.
Popularity Medium

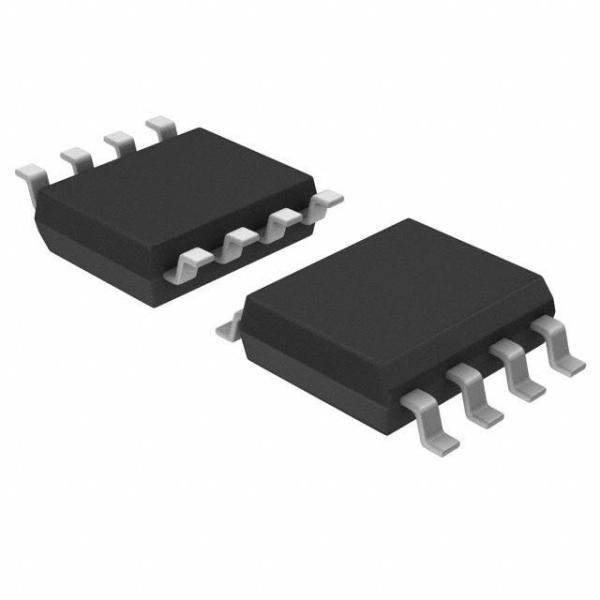

Case / Package 8-SOIC
Mounting SMD (SMT)
Temperature Range - Operating -40°C to 125°C (TJ)
Synchronous Rectifier No
Frequency - Switching 260kHz
Output Current 1A
Nominal Output Voltage (Min/Fixed) 5V
Maximum Input Voltage 40V
Minimum Input Voltage 6.5V
Number of Outputs 1
Output Type Fixed
Topology Buck
Purpose Step-Down
Status Active
Packaging Reel - TR
Manufacturer Texas Instruments
Categories Integrated Circuits

Features for the LM2672

  • Efficiency up to 96%
  • Available in 8-Pin SOIC and PDIP Packages
  • Requires only 5 External Components
  • 3.3-V, 5-V, 12-V, and Adjustable Output Versions
  • Adjustable Version Output Voltage Range: 1.21 V
    to 37 V
  • ±1.5% Maximum Output Voltage Tolerance Over
    Line and Load Conditions
  • Specified 1-A Output Load Current
  • Wide Input Voltage Range: 8 V to 40 V
  • 260-kHz Fixed Frequency Internal Oscillator
  • TTL Shutdown Capability, Low Power Standby
    Mode
  • Soft-Start and Frequency Synchronization
  • Thermal Shutdown and Current Limit Protection

Description for the LM2672

The LM2672 series of regulators are monolithic integrated DC-DC converter built with a LMDMOS process. These regulators provide all the active functions for a step-down (buck) switching regulator, capable of driving a 1-A load current with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version.

Requiring a minimum number of external components, these regulators are simple to use and include patented internal frequency compensation, fixed frequency oscillator, external shutdown, soft-start, and frequency synchronization.

The LM2672 series operates at a switching frequency of 260 kHz, thus allowing smaller sized filter components than what is required with lower frequency switching regulators. Because of its very high efficiency (>90%), the copper traces on the printed-circuit board are the only heat sinking required.
