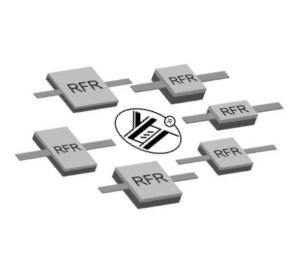

50w DC 3GHz 6*6mm Leaded Chip Attenuators 1db To 10db
50w DC 3GHz 6*6mm Leaded Chip Attenuators 1db To 10db
Specifications
Brand Name :
YLT
Place of Origin :
China
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram, Paypal
Delivery Time :
5-8 work days
MOQ :
100PCS
Supply Ability :
13Million PCS for RF Resistor, 7Million PCS for RF Attenuator
Packaging Details :
Inside Box + Outside Carton Plus Pallet or Wooden Case if Necessary
Impedance :
50 Ω
Power Rating :
50w
Substrate Material :
BeO、 AlN 、Al2O3
Attenuation Value :
1-10dB
Attenuation Tolerance :
1～10dB ±0.6dB 11～20dB ±0.8dB 21～30dB ±1.0dB
Frequency :
DC～3GHz
Operating Temperature :
-55～+150℃
Temperature Coefficient :
≤ 150ppm/℃
VSWR :
1.20
Description

​Leaded Chip Attenuators 50w 1-10db DC-3 6*6

  • (Impedance):50 Ω
  • 额定功率(Power Rating):2～500 Watts
  • 基片材料(Substrate Material):BeO, AlN ,Al2O3
  • 衰减值(Attenuation Value):1～30dB
  • 衰减公差(Attenuation Tolerance): 1～10dB ±0.6dB
  • 11～20dB ±0.8dB
  • 21～30dB ±1.0dB
  • ( Frequency):DC～6GHz
  • (Operating Temperature):-55～+150℃
  • (Temperature Coefficient):≤ 150ppm/℃
  • 符合RoHS要求(RoHS Compliant)

Product Reference

Power Rating Attenuation Frequency (Max) Dimensions Model
(W) Value(dB) (GHz) VSWR W L T H I Tw 　
50 1～10,15,20,30 DC-3 1.20 6 6 1 1.9 6 1 RFRXX-50A11XXA

(We can provide the customized product according to the customers’ requirement, such as Lead Length Attenuation Value and Configuration. )
50w DC 3GHz 6*6mm Leaded Chip Attenuators 1db To 10db



50w DC 3GHz 6*6mm Leaded Chip Attenuators 1db To 10db

Chip terminals FAQ

Q1: When can I get the company profile, price and product information?
A4:Usually we offer you with these information within 1 hour after we get your inquiry.
Q5: How could I get a sample?
A5: If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all
related shipping costs.Express delivery charge depends on the quantity of the samples.
Q6: What is your payment terms?
A6: For first order,we need deposit,then we can start produce goods for you.
After we have good relation and know each other better, you can pay us before shipment and no need deposit.
