3W DC 30GHz Electrode Resistance
3W DC 30GHz Electrode Resistance
3W DC 30GHz Electrode Resistance
3W DC 30GHz Electrode Resistance
3W DC 30GHz Electrode Resistance
3W DC 30GHz Electrode Resistance
Specifications
Brand Name :
YLT
Model Number :
chip
Place of Origin :
China
Price :
Negotiable
Payment Terms :
D/P
Delivery Time :
5-8 work days
Standard Resistance :
50Ω
Resistance Tolerance :
±5%（default）;±2%;±1%
Frequency :
DC-30GHz
Temperature Coefficient :
≤ 150ppm/℃
Temperature Range :
-55～+150℃
VSWR :
1.50
Description

electorde resisitance 50Ω 3w DC- 30GHz BeO AlN Al2O3 1.27 * 2.54




3W DC 30GHz Electrode Resistance

  • (Standard Resistance):50Ω
  • (Substrate Material):BeO, AlN,Al2O3
  • (Resistance Tolerance):± 5%(default)；±2%；±1%
  • (Power Rating):5～500W
  • (Temperature Range):-55～+150℃
  • (Temperature Coefficient):≤ 150ppm/℃
  • (RoHS Compliant)

(We can provide the customized product according to the customers’ requirement, such as Resistance and Configuration. )

3W DC 30GHz Electrode Resistance
3W DC 30GHz Electrode Resistance

3W DC 30GHz Electrode Resistance

额定功率 频率范围 最大驻波比 尺寸 产品型号
Power Rating Frequency VSWR Dimensions(mm) Model
(W) (GHz) (Max) W L H A B C 　
1 DC-30 1.30 0.5 1 0.25 N/A N/A N/A RFR50N-1CT24801B

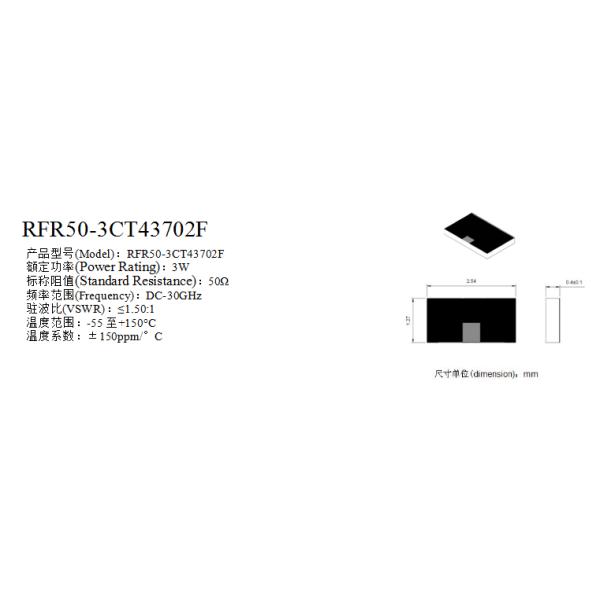

3 DC-30 1.50 1.27 2.54 0.6 1.54 0.5 0.6 RFR50-3CT43702F
5 DC-6 1.25 1.27 2.54 0.6 1.54 0.4 0.6 RFR50N-5CT27001B
12 DC-6 1.20 1.5 3 0.38 N/A N/A N/A RFR50N-12CT15803B
5 DC-12 1.35 2.5 3 0.6 N/A N/A N/A RFR50-5CT0214B
25 DC-6 1.20 2.5 5 1 N/A N/A N/A RFR50N-25CT0337B
150 DC-4 1.20 6.35 6.35 1.5 1.27 0.76 N/A RFR50N-150CT4803B


Chip terminals FAQ
Q1: When can I get the company profile, price and product information?
A4:Usually we offer you with these information within 1 hour after we get your inquiry.
Q5: How could I get a sample?
A5: If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all
related shipping costs.Express delivery charge depends on the quantity of the samples.
Q6: What is your payment terms?
A6: For first order,we need deposit,then we can start produce goods for you.
After we have good relation and know each other better, you can pay us before shipment and no need deposit.
