Packaging Line Chocolate Bar/Tablet Fold Packing Machine with Heat-sealing and Glueing
Packaging Line Chocolate Bar/Tablet Fold Packing Machine with Heat-sealing and Glueing
Packaging Line Chocolate Bar/Tablet Fold Packing Machine with Heat-sealing and Glueing
Packaging Line Chocolate Bar/Tablet Fold Packing Machine with Heat-sealing and Glueing
Packaging Line Chocolate Bar/Tablet Fold Packing Machine with Heat-sealing and Glueing
Packaging Line Chocolate Bar/Tablet Fold Packing Machine with Heat-sealing and Glueing
Packaging Line Chocolate Bar/Tablet Fold Packing Machine with Heat-sealing and Glueing
Packaging Line Chocolate Bar/Tablet Fold Packing Machine with Heat-sealing and Glueing
Packaging Line Chocolate Bar/Tablet Fold Packing Machine with Heat-sealing and Glueing
Packaging Line Chocolate Bar/Tablet Fold Packing Machine with Heat-sealing and Glueing
Packaging Line Chocolate Bar/Tablet Fold Packing Machine with Heat-sealing and Glueing
Packaging Line Chocolate Bar/Tablet Fold Packing Machine with Heat-sealing and Glueing
Specifications
Type :
Packaging Line
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Condition :
New
Application :
Machinery & Hardware
Packaging Type :
Film, Foil, Aluminum foil heat sealing and paper glueing
Packaging Material :
Wood
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
380v/220v
Place of Origin :
Sichuan, China
Brand Name :
Shengli
Dimension(L*W*H) :
4288x2559x2105mm
Weight :
6000 KG
Warranty :
1 Year
Key Selling Points :
High-accuracy
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Motor, PLC
Packing Speed :
60-100pics/min (According to the size)
Chocolate Size :
L:80-183 W:40-82 H:10-40 (mm)
Total Power :
15.0KW
Power Supply :
380V 50HZ 3PH (Can be customized)
Air Supply :
Pressure: 0.6MPa Flow: 0.6 M³/Min
Wrapper Material :
Foil,Wax paper,BOPP.etc.(Must be easy to fold)
Wrapper Width :
Inner Max.225mm, Outer Max.250mm
Wrapper Roller Size :
Inner Dia:76-90mm,Outer Dia≤300mm
Melting Gum Device :
Robatech(Switzerland)
Packaging Details :
Wooden case package as an international trade package.
Port :
ShangHai / Shenzhen / Guangzhou
Supply Ability :
10 Set/Sets per Month
Price :
$84,000.00 - $125,000.00/sets
MOQ :
1pc
Description
Product Overview

SL-SBZB100D Chocolate Bar Folded Packing Machine

SL-SBZB100D series packing machine is design for big size chocolate bar and ice cream block. Inner heat sealing and outer packing can be completed at one time, box packing machine is optional. With the advantage of fast packaging, good consistency, low failure rate, and long service life.
FEATURES AT A GLANCE


On-site installation
Packaging Line Chocolate Bar/Tablet Fold Packing Machine with Heat-sealing and Glueing
Packaging Line Chocolate Bar/Tablet Fold Packing Machine with Heat-sealing and Glueing
Packing Machine
Packaging Line Chocolate Bar/Tablet Fold Packing Machine with Heat-sealing and Glueing
Manual Table
Packaging Line Chocolate Bar/Tablet Fold Packing Machine with Heat-sealing and Glueing

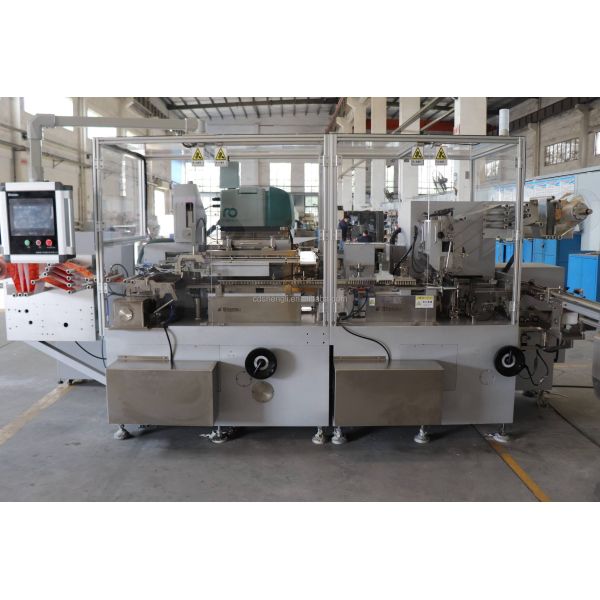

Front elevation
SALES AND SERVICE NETWORK
Packaging Line Chocolate Bar/Tablet Fold Packing Machine with Heat-sealing and Glueing
