Model

Material


SL-SBZB450D

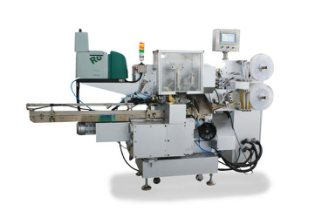

Folded Packing Machine

Machine body: spherical iron ;

Clamp: alloy steel ;

Product Touching Area: stainless steel 304 and PU.

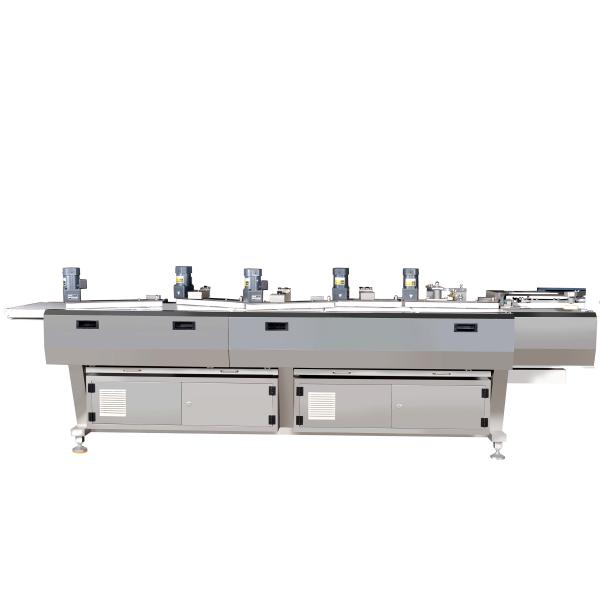

SL-SBZL500

Sorting Conveyor

Machine body: carbon steel

Product Touching Area: PU, SUS304

Main

Specification

and

Technical

Parameters

Packing Speed

260ppm

Size

of chocolate

length

80mm

width

45mm

Height

35mm

Total power

8.0kW

Power supply

380V/220V 50HZ 3P (Customized)

Air supply

0.6Mpa

Qualification rate of packaging

98%

Layout Diagram(just for reference )

(2)Fold Packing Machine Main Components

l Servo motor for feeding paper Japanese(Panasonic )

l Touch screen Taiwan(Weinview)7.5”

l Frequency converter Taiwan(Delta)

l Candy sensor Germany(LEUZE)

l Color code sensor Germany(SICK)

l Paper broken proximity switch Germany(LEUZE)

l Oversize candy proximity switch Germany(LEUZE)

l Origin proximity switch Germany(LEUZE)

l Encoder Japanese(Omron)

l Solid relay Japanese(Omron)

l Switch power supply China

l RO melting gum machine Swiss(Robert)

3. Arranging and Feeding Machine Technical Specification and Main Components

4. Company Introduction:

Chengdu ShengLi Machinery Equipment Co., LTD is one company which are professional in the design, development, production, and sales of food processing and packing machinery and specializing in providing automatic food processing solutions and customer services for decades (Chengdu WealthRise Complete Mechanical Engineering Co., Ltd is a wholly foreign-owned enterprise founded in 2004 ).

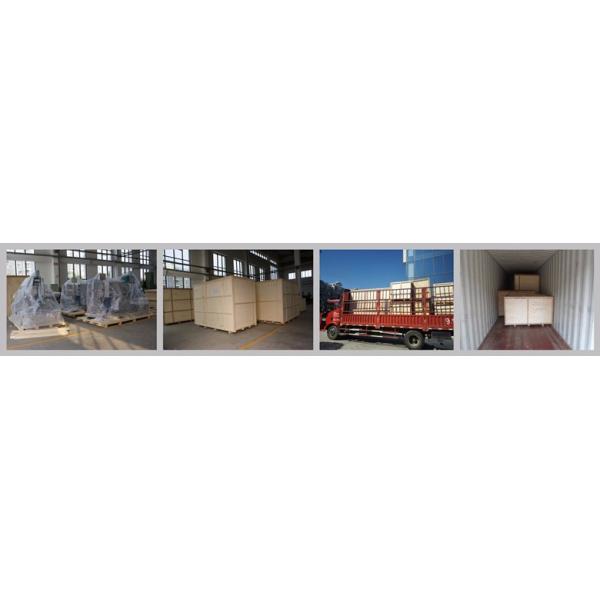

5. Package and Shipping

(1)Package Standard: Wooden case package as an international trade package

(2)Package Supply and Recovery: Supplier supply package according to customer requirements and recovery depend on customer

(3)FOB SHANGHAI / SHENZHEN / NINGBO port

(4)Package Size and Weight(just for reference )

6. Other Terms

6.1.The Condition and Limits supplier charge: Guarantee one year in standard operation

6.2.Acceptance Inspection and Means: According to enterprise standards in supplier factories, if

If you have any suggestions please tell us in one mouth after debugging

6.3.Spare Parts Guarantee one year, except spare parts loss because of incorrect operation.

6.4.Other Terms: The facility’s installation and debugging should be finished in BUYER’s

factory by the assigned engineer (usually ONE person) from the SELLER’s factory.BUYER

should afford all the expenses generated as soon as the engineer is away from China,

which including transportation,meals,accommodations,as well as additional USD80 per

person per day during installation and debugging.
