Full Automatic Electric Driven Double-twist Chocolate Wrapping Machine at Affordable
Full Automatic Electric Driven Double-twist Chocolate Wrapping Machine at Affordable
Full Automatic Electric Driven Double-twist Chocolate Wrapping Machine at Affordable
Full Automatic Electric Driven Double-twist Chocolate Wrapping Machine at Affordable
Full Automatic Electric Driven Double-twist Chocolate Wrapping Machine at Affordable
Full Automatic Electric Driven Double-twist Chocolate Wrapping Machine at Affordable
Full Automatic Electric Driven Double-twist Chocolate Wrapping Machine at Affordable
Full Automatic Electric Driven Double-twist Chocolate Wrapping Machine at Affordable
Full Automatic Electric Driven Double-twist Chocolate Wrapping Machine at Affordable
Full Automatic Electric Driven Double-twist Chocolate Wrapping Machine at Affordable
Full Automatic Electric Driven Double-twist Chocolate Wrapping Machine at Affordable
Full Automatic Electric Driven Double-twist Chocolate Wrapping Machine at Affordable
Specifications
Type :
Wrapping Machine
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory, Food Shop, Food & Beverage Shops
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
None
Showroom Location :
None
Condition :
New
Application :
Food, Chocolate
Packaging Type :
Film, Foil, Wrapping,Twisting Wrapping
Packaging Material :
Paper, Plastic, PET
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
380V 50Hz.3-Phase
Place of Origin :
Sichuan, China
Brand Name :
Shengli
Dimension(L*W*H) :
2900*1500*2000mm
Weight :
2500 KG
Certification :
CE Certification
After-sales Service Provided :
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Warranty :
1 Year
Key Selling Points :
High Productivity
Marketing Type :
Hot Product 2019
Machinery Test Report :
Not Available
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
PLC, Gear, Motor, Engine, Bearing, Gearbox
Air Supply :
0.6MPa
Wrapping speed :
300 ppm
Machine type :
Horizontal wrapping machine
Candy size :
L*W*H: 10-80*4-45*4-35 MM
Match machine :
Conveyor machine
Conveyor :
Stainless Steel /SIGELING Belt
Control system :
PLC+touch screen
Wrapping type :
Single twist and double twist wrapping machine
Photoelectric eye :
SICK
Packaging Details :
Wooden case package as international trade package.
Port :
shanghai
Supply Ability :
4 Set/Sets per Month
Price :
$42,000.00/sets 1-2 sets
MOQ :
1pc
Description
Product Description

Product Application

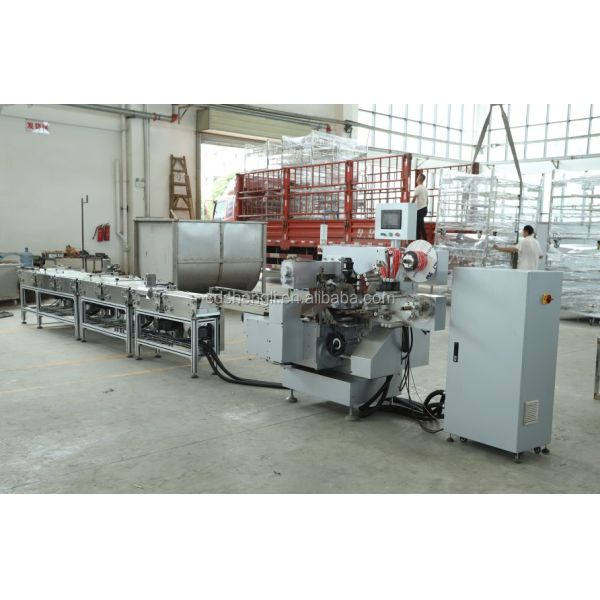

SL-SBSN450 series automatic chocolate candy wrpping machine with automatic conveyor. This machine uses a servo motor to control the wrapping paper, and the photoelectric eye detects the wrapping paper color code and transmits the signal. The matching conveyor machine can adjust the speed in sections, fully automatic conveying, photoelectric transmission detection and conveying material information.

SPECIFICATIONS FOR CANDY PACKING MACHINE

Packing Machine
Wrapping speed
260-300
ppm
Size range
10-80*4-45*4-35
mm
Qualification rate of packaging
97
%

Conveyor Machine
Total Power
1.5
KW
Frequency Converter
Taiwan
(Delta)
Compressed Air
0.6
Mpa
Dimensions of case
(L*W*H)
Wrapping machine
2960*1560*2150*1
mm
Conveyor machine
2360*860*1250*1
mm
1560*860*1260*2
mm
Full Automatic Electric Driven Double-twist Chocolate Wrapping Machine at Affordable
Full Automatic Electric Driven Double-twist Chocolate Wrapping Machine at Affordable
Full Automatic Electric Driven Double-twist Chocolate Wrapping Machine at Affordable
Full Automatic Electric Driven Double-twist Chocolate Wrapping Machine at Affordable

Main Features

1. Adopt PLC & program software, easy operating and setting. Auto human touch screen and three colors warning light, self-failure diagnosis, clear failure display.
2.Fully automatic program-controlled with servo motors, highly stable and reliable
3.Flexible in color sensor settings, paper feeding self-tracking, and correction during packing, providing a consistent packing style and a good product appearance.
4.Self-protection for the abnormal product.
5. Online product feeding status monitoring-only feeding wrapping paper when the product arrives desired position, which keeps paper consumption at an extremely low level.
6. Removable truckle with the machine, height can be adjusted.
7. Large space switch power supply, an electrical device's brand can be chosen.

Detailed Images
Full Automatic Electric Driven Double-twist Chocolate Wrapping Machine at Affordable




Wrapping paper bracket


Main Features

Name: photoelectric eye
Brand: SICK
Original: Germany

Full Automatic Electric Driven Double-twist Chocolate Wrapping Machine at Affordable
Full Automatic Electric Driven Double-twist Chocolate Wrapping Machine at Affordable




Clip the sugar





Conveyor machine


Full Automatic Electric Driven Double-twist Chocolate Wrapping Machine at Affordable
Our Service
Full Automatic Electric Driven Double-twist Chocolate Wrapping Machine at Affordable
Full Automatic Electric Driven Double-twist Chocolate Wrapping Machine at Affordable

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
