PET Packaging Material 260ppm Horizontal Single Top Twist Chocolate Wrapping Machine
PET Packaging Material 260ppm Horizontal Single Top Twist Chocolate Wrapping Machine
PET Packaging Material 260ppm Horizontal Single Top Twist Chocolate Wrapping Machine
PET Packaging Material 260ppm Horizontal Single Top Twist Chocolate Wrapping Machine
PET Packaging Material 260ppm Horizontal Single Top Twist Chocolate Wrapping Machine
PET Packaging Material 260ppm Horizontal Single Top Twist Chocolate Wrapping Machine
PET Packaging Material 260ppm Horizontal Single Top Twist Chocolate Wrapping Machine
PET Packaging Material 260ppm Horizontal Single Top Twist Chocolate Wrapping Machine
PET Packaging Material 260ppm Horizontal Single Top Twist Chocolate Wrapping Machine
PET Packaging Material 260ppm Horizontal Single Top Twist Chocolate Wrapping Machine
PET Packaging Material 260ppm Horizontal Single Top Twist Chocolate Wrapping Machine
PET Packaging Material 260ppm Horizontal Single Top Twist Chocolate Wrapping Machine
Specifications
Type :
Packaging Line
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory, Food Shop, Food & Beverage Shops, Chocolate Candy factory
Showroom Location :
None
Condition :
New
Application :
Food, Chocolate/Candy
Packaging Type :
Film, Twisting wrapping
Packaging Material :
Plastic, PET
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
380V/220V 50HZ,3-Phase
Place of Origin :
Sichuan, China
Brand Name :
ShengLi
Dimension(L*W*H) :
L2960*W1560*H2150mm
Weight :
2600 KG
Warranty :
1 Year
Key Selling Points :
Easy to Operate
Machinery Test Report :
Not Available
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, PLC, Engine, Gearbox
After-sales Service Provided :
Engineers available to service machinery overseas
Wrapping Speed :
260ppm
Size of chocolate :
Diameter 10-32mm; High: 10-30mm
Qualification rate of packaging :
>=98%
Wrapper width :
80-130mm
Control system :
PLC+touch Screen
Wrapping type :
Single/double layer wrap
After-sales Service :
24-hour online service
Signals :
Photoelectric
Quality requirement :
Food grade
Marketing Type :
Hot Product 2019
Packaging Details :
Wooden case package as the international trade package
Port :
Shanghai
Supply Ability :
4 Set/Sets per Month
Price :
$35,000.00 - $45,000.00/sets
MOQ :
1pc
Description

High-speed Full Automatic Chocolate Single Top Twist Wrapping Machine

Main Packing Machine

Specification

and

Technical

Parameters

Model No

SL-SBDN260

Packing Speed

260ppm

Products size

Diameter (Round) Height

10-32(mm);17-30(mm)

6-22(mm) ; 10-30(mm)

Total power

3KW

Power supply

380V/220V 50HZ 3P

Air supply

0.6Mpa

Qualification rate of packaging

>=97%

Air displacement

0.6 m³/min

Wrapper

Wrapper width

80-130mm

Wrapper material

Foil/PET/Film and so on

Arranging and Feeding Machine Technical Specification and Main Components

Total Power

1 KW

Compressed Air

0.6Mpa

Frequency Converter

Taiwan(Delta)

Gross weight

Packing machine

1600kG

Feeding Conveyor

1000KG

Dimensions

of case

(L*W*H)

Packing machine

2960*1560*2150mm*1

Feeding Conveyor

2360*860*1250mm*1

1560*860*1260mm*2

Product Description

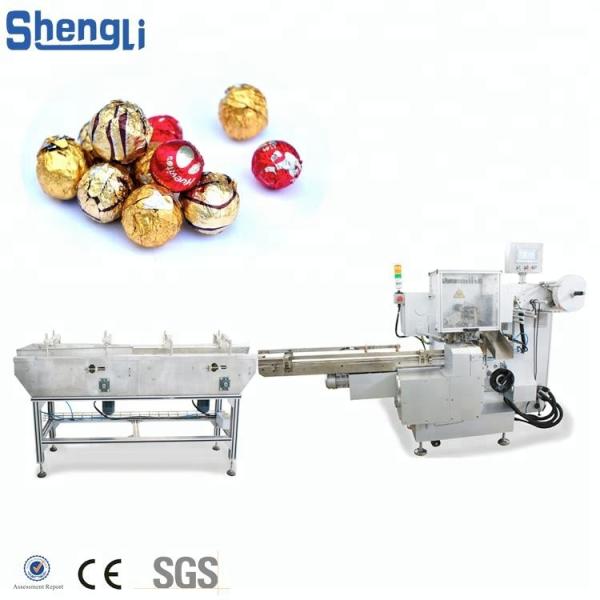

This complete machine is a fully automatic high-speed wrapping machine, which using the automatic control to convey and pack foods, such as chocolate, press candy, pralines and other food which are not easily be handled or fragile.

The complete machine consists of one set SL-SBDN260 Top-twisting Packing Machine and one set SL-SBZL500 Arranging and Feeding Machine.

Arranging and feeding machine Wrapping machine

PET Packaging Material 260ppm Horizontal Single Top Twist Chocolate Wrapping MachinePET Packaging Material 260ppm Horizontal Single Top Twist Chocolate Wrapping MachinePET Packaging Material 260ppm Horizontal Single Top Twist Chocolate Wrapping Machine

Application Range

SL-SBDN260 series automatic packing machines are mainly used for the single twist style wrapping of chocolates/pralines/pressed candies, and etc. The model uses foil for twisting packing and is suitable for various kinds of products in different shapes and sizes, providing an excellent packing performance.

PET Packaging Material 260ppm Horizontal Single Top Twist Chocolate Wrapping MachinePET Packaging Material 260ppm Horizontal Single Top Twist Chocolate Wrapping Machine

Product Details

PET Packaging Material 260ppm Horizontal Single Top Twist Chocolate Wrapping Machine

PET Packaging Material 260ppm Horizontal Single Top Twist Chocolate Wrapping Machine

Main Components

  • Servo motor for feeding paper Japan(Omron )
  • Touchscreen Japan(Omron)
  • Frequency converter Taiwan(Delta)
  • Candy sensor Germany(SICK)
  • Color code sensor Germany(SICK)
  • Paper broken proximity switch Germany(SICK)
  • Oversize candy proximity switch Germany(SICK)
  • Origin proximity switch Germany(SICK)
  • Encoder Japan(Omron)
  • Solid relay Japan(Omron)
  • Switch power supply Japan(Omron)
  • Precision potentiometer Japan(Omron)
  • PLC Japan(Omron)
Advantages

1. Adopt PLC & program software, easy operating and setting. Auto-human touch screen and three color warning light, self-failure diagnosis, clear failure display.

2.Fully automatic program-controlled with servo motors, highly stable and reliable

3.Flexible in color sensor settings, paper feeding self-tracking, and correction during packing, providing a consistent packing style and a good product appearance.

4.Self-protection for abnormal product

5. Online product feeding status monitoring-only feeding wrapping paper when the product arrives desired position, which keeps paper consumption at an extremely low level.

6. Removable truckle with the machine, height can be adjusted.

7. Large space switch power supply, election trial device’s brand can be chosen.

Company Introduction

Chengdu ShengLi Mechanical Equipment Co., LTD is one company which are professional in the design, development, production, and sales of food processing and packing machinery and specializing in providing automatic food processing solutions and customer services for decades (Chengdu WealthRise Complete Mechanical Engineering Co., Ltd is a wholly foreign-owned enterprise founded in 2004 ).

PET Packaging Material 260ppm Horizontal Single Top Twist Chocolate Wrapping Machine

PET Packaging Material 260ppm Horizontal Single Top Twist Chocolate Wrapping Machine

Packing & shipping

(1)Package Standard: Wooden case package as the international trade package

(2)Package Supply and Recovery: Supplier supply package according to customer requirements and recovery depends on customer

(3)Package Size and Weight(just for reference )

PET Packaging Material 260ppm Horizontal Single Top Twist Chocolate Wrapping Machine
