Top Twist Chocolate Wrapping Machine with Automatic Function and Foil Packaging Type
Top Twist Chocolate Wrapping Machine with Automatic Function and Foil Packaging Type
Top Twist Chocolate Wrapping Machine with Automatic Function and Foil Packaging Type
Top Twist Chocolate Wrapping Machine with Automatic Function and Foil Packaging Type
Top Twist Chocolate Wrapping Machine with Automatic Function and Foil Packaging Type
Top Twist Chocolate Wrapping Machine with Automatic Function and Foil Packaging Type
Top Twist Chocolate Wrapping Machine with Automatic Function and Foil Packaging Type
Top Twist Chocolate Wrapping Machine with Automatic Function and Foil Packaging Type
Top Twist Chocolate Wrapping Machine with Automatic Function and Foil Packaging Type
Top Twist Chocolate Wrapping Machine with Automatic Function and Foil Packaging Type
Top Twist Chocolate Wrapping Machine with Automatic Function and Foil Packaging Type
Top Twist Chocolate Wrapping Machine with Automatic Function and Foil Packaging Type
Specifications
Type :
Wrapping Machine
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory, Food Shop, Food & Beverage Shops
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
None
Showroom Location :
None
Condition :
New
Application :
Food
Packaging Type :
Film, Foil
Packaging Material :
Plastic, Paper
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
380 V
Place of Origin :
Sichuan, China
Brand Name :
SL
Dimension(L*W*H) :
2960*1250*2150 MM
Weight :
2600 KG
Certification :
CE
After-sales Service Provided :
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Warranty :
1 Year
Key Selling Points :
High-accuracy
Marketing Type :
Hot Product 2019
Machinery Test Report :
Not Available
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
PLC, Motor, Engine, Bearing, Pump
Matched machine :
Arranging and feeding machine/conveyor
Main Function :
chocolate/candy wrapping machine
Packing speed :
260 pics/min
Product dimensions :
(D*H)10-32*10-30 mm
Package paper material :
PET
Air Supply :
0.6 MPa
Main control :
PLC
Control system :
OMRON
Photoelectric eye :
SICK
Packaging Details :
Export standard wooden case package and 4 cases will be for 1 set machines in 20 GP.
Port :
Any port in China
Supply Ability :
10 Set/Sets per Month Automatic Chocolate Top Twist Packing Machine
Price :
$45,000.00/sets >=1 sets
MOQ :
1pc
Description
Product Description

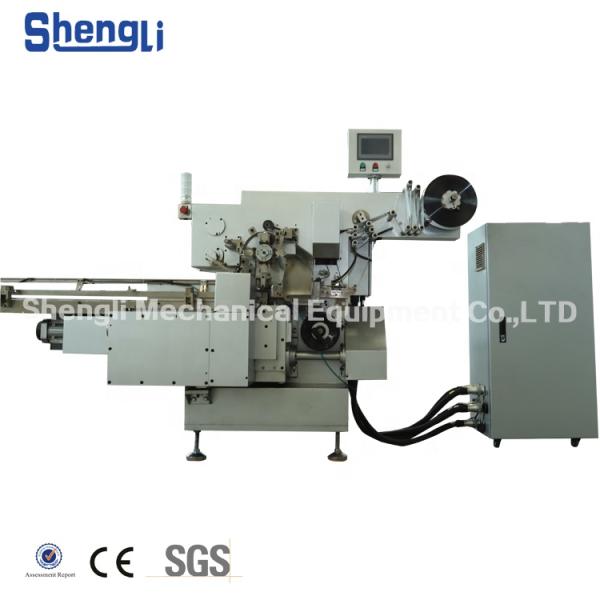

Full Automatic Chocolate Candy Top Twist Wrapping Machine

SL-SBDN260 series automatic packing machine is used for the top-twisting style wrapping of chocolates, pralines, pressed candies, and etc. The model uses foil for twisting wrapping and is suitable for various kinds of products in different shapes and sizes, providing excellent wrapping performance.

Top Twist Chocolate Wrapping Machine with Automatic Function and Foil Packaging Type Top Twist Chocolate Wrapping Machine with Automatic Function and Foil Packaging Type

Technical parameters

SL-SBDN260 series Automatic Chocolate Top Twist Wrapping Machine
1

Wrapping Speed

260 pics/min

2

Product Dimensions

(D * H):10-32*10-30 mm
3

Total Power

 3 KW
4

Power Supply

380 V, 50 Hz, 3-Phase
5

Air Supply

0.6 MPa

SL-SBZL400 Arranging and Feeding Machine
1 Feeding speed 300-500 pics/min(speed matched with packing machine)
2 Total power 2.3kw
3 Power Supply 380 V 50 Hz 3P
4 Air Supply 0.6 MPa
Advantages

1. Arranging and feeding machine can be chosen according to different product properties

2. Use single layer wrapping paper, paper material: Aluminum foil, PET, PVC, composite material, etc.

3. Adopt PLC & program software, easy operating and setting. Auto-human touch screen and three color warning light, self failure diagnosis, clear failure display.

4.Fully automatic program-controlled with servo motors, highly stable and reliable

5.Flexible in color sensor settings, paper feeding self-tracking, and correction during packing, providing a consistent packing style and a good product appearance.

6.Self-protection for the abnormal product.

7. Online product feeding status monitoring-only feeding wrapping paper when the product arrives desired position, which keeps paper consumption at an extremely low level.

8. Removable truckle with the machine, height can be adjusted.

9. Large space switch power supply, an electrical device’s brand can be chosen.

Bigger cover for the machine, safe with operator

Functions show

Top Twist Chocolate Wrapping Machine with Automatic Function and Foil Packaging Type

Company Information

Chengdu ShengLi Mechanical Equipment Co., LTD is one company which are professional in the design, development, production, and sales of food processing and wrapping machinery and specializing in providing automatic food processing solutions and customer services for decades (Chengdu WealthRise Complete Mechanical Engineering Co., Ltd is a wholly foreign-owned enterprise founded in 2004 ).

Top Twist Chocolate Wrapping Machine with Automatic Function and Foil Packaging Type

Packing & shipping

(1)Package Standard: Wooden case package as the international trade package

(2)Package Supply and Recovery: Supplier supply package according to customer requirements and recovery depends on customer

(3)Package Size and Weight(just for reference )

Gross weight

Wrapping machine

1600KG

Total 2600KG

Feeding Conveyor

1000KG

Dimensions

of machine

(L*W*H)

Wrapping machine

2960*1560*2150mm*1

Total 16m³

Feeding Conveyor

1560*860*1250mm*2

2360*860*1250mm*1










Top Twist Chocolate Wrapping Machine with Automatic Function and Foil Packaging Type
