Product Name:

Full Automatic High-Speed Chocolate Tresor Dore Packing Packing Machine

(Chocolate like Ferrero Rocher with wafer coated)

(1 UNIT CHOCOLATE PACKING MACHINE+1 UNIT ARRANGING AND FEEDING MACHINE)

Product Description:

1. Main Instruction

This complete machine is a fully automatic high-speed packing machine, which uses automatic control to convey and pack foods, such as chocolate and other food which are not easily be handled or fragile.

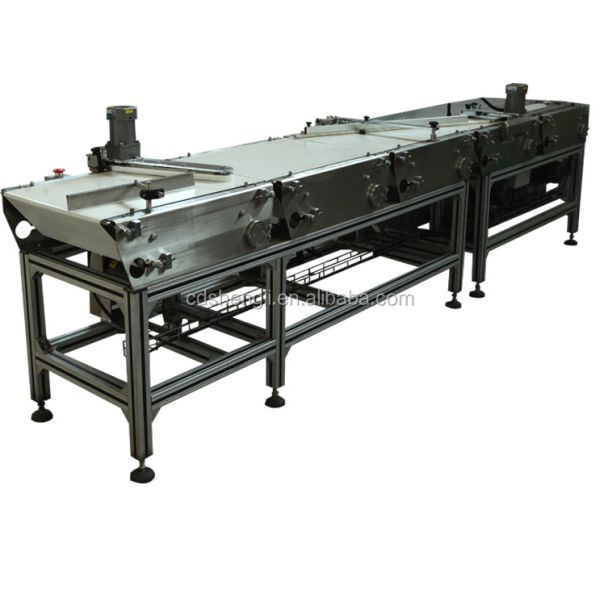

The complete machine consists of one unit SL-SBJS260 Tresor Dore Packing Machine and one unit SL-SBZL300JArranging and Feeding Machine.

Special Features:

1. Adopt PLC & program software, easy operating and setting.Auto-human touch screen and three-color warning light, self failure diagnosis, clear failure display.

2. Two languages show on the touch screen.

3. Fully automatic program-controlled with servo motors, highly stable and reliable

4. Flexible in color sensor settings, paper feeding self-tracking, and correction during packing, providing a consistent packing style and a good product appearance.

5. Self-protection for abnormal product

6. Online product feeding status monitoring-only feeding wrapping paper when the product arrives desired position, which keeps paper consumption at an extremely low level.

7. Removable truckle with the machine, height can be adjusted.

7. Large space switch power supply, electrical device’s brand can be chosen.

2. Packing Machine Technical Specification and Main Components

(1). Main Specification and Technical Parameters

Table 1

Table2

Table3

Table 4

Table 5

(2). Main Components

l Servo motor for feeding paper Japanese(Panasonic )

l Touch screen Taiwan(Weinview)7.5”

l Frequency converter Taiwan(Delta)

l Candy sensor Germany(LEUZE)

l Color code sensor Germany(SICK)

l Oversize candy proximity switch Germany(LEUZE)

l Origin proximity switch Germany(LEUZE)

l Encoder Italian(LIKA)

l Solid relay Japanese(Omron)

l Switch power supply China

l Precision potentiometer Moxie(Duoquan)

l PLC Chengdu(SL)

3.Arranging and Feeding Machine Technical Specification and Main Components

4. Package and Shipping

(1)Package Standard: Wooden case package as international trade package.

(2)Package Supply and Recovery: Supplier supply package according to customer requirements and recovery depend on the customer.

(3)Package Size and Weight(just for reference )

(4)FOB SHANGHAI

6. Other Terms

6.1.The Condition and Limits supplier charge: Guarantee one year in standard operation

6.2.Acceptance Inspection and Means: According to enterprise standards in the supplier factory, if you have any suggestions please tell us in one mouth after debugging

6.3.Spare Parts and Tools Instruction: Check-in Appendix 1

6.4.Spare Parts Guarantee one year, except spare parts loss because of incorrect operation.

6.5.Other Terms: The Facility’s installation and debugging should be finished in the BUYER’s factory by the assigned engineer (usually ONE person) from the SELLER’s factory.BUYER should

afford all the expenses generated as soon as the engineer is away from China, which includes transportation, meals, accommodations, as well as an additional USD50 per person per day during installation and debugging
