60m/min Bag On Roll Making Machine , Perforated Bottom Sealing Bag Making Machine
60m/min Bag On Roll Making Machine , Perforated Bottom Sealing Bag Making Machine
60m/min Bag On Roll Making Machine , Perforated Bottom Sealing Bag Making Machine
60m/min Bag On Roll Making Machine , Perforated Bottom Sealing Bag Making Machine
60m/min Bag On Roll Making Machine , Perforated Bottom Sealing Bag Making Machine
60m/min Bag On Roll Making Machine , Perforated Bottom Sealing Bag Making Machine
60m/min Bag On Roll Making Machine , Perforated Bottom Sealing Bag Making Machine
60m/min Bag On Roll Making Machine , Perforated Bottom Sealing Bag Making Machine
Specifications
Brand Name :
CHOVYTING
Model Number :
CW-1000PR
Certification :
CE & ISO
Place of Origin :
CHINA
MOQ :
1 SET
Price :
40000-60000USD/SET
Payment Terms :
L/C, T/T, D/P
Supply Ability :
300SETS/YEAR
Delivery Time :
80DAYS
Packaging Details :
Wooden pallet with stretch film
Charavteristic :
High productivity
Product Name :
Sealed Plastic Bag on Roll Making Machine
Speed of Bag Making :
250pcs/min
Type :
Plastic Bag Making Machine
Inverter :
Yaskawa Japan
Specificion :
6600(L)x3300(W)x1900mm(H)
PLC :
Panasonic Japan
Roll Type :
with Core
Weight :
4100kg
Sealing & Cutting :
Heat-Sealing Heat-Cutting
Description
Fully Automatic Perforated Bottom Sealed Plastic Bag on Roll Making Machine

Product Description

Brief Introduction

This machine is producing bottom sealing perforated bag on roll. Servo-driven system , fully auto exchange system ruduce the labour force.
With shuttle system,make the bag length up to 10meters.

Optional device:
T-shirt bag on roll device;
Hot slitting device;
In-line gusset device;

Technical Variable:

Model: CW-1000PR
Unwind width: 120-900mm*φ600mm(3inch core)
Thickness:

12um HDPE,120um LDPE Max

60um LDPE with gusset
Bag length: 200-1000mm
Line speed 60m/min
Rewind width: 900mm*φ400mm(3 inch core)

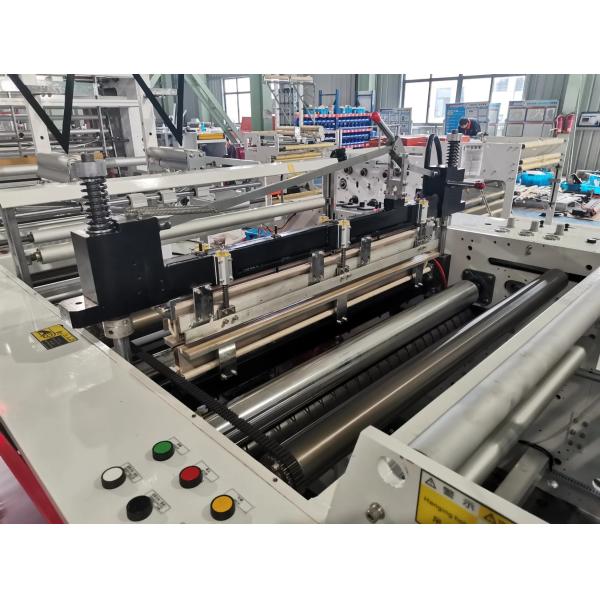

Detailed Photos

60m/min Bag On Roll Making Machine , Perforated Bottom Sealing Bag Making Machine

UNWINDER PART:

1. Adopt automatic vacuum-pressure loading the mother material
2. Equip with non-material,or the material is cut,the machine automatically stop device.
3. The unwinding tension is action feeding type
The material which can be suitable for CW-1000PRare the normal rolling tube material or the material which is already folded by film blowing machine. The material can be HDPE,LDPE,LLDPE,and recycle material.

60m/min Bag On Roll Making Machine , Perforated Bottom Sealing Bag Making Machine

Rewinding unit

Can be single line or devided into double lines. Can be with paper core or without paper core. Can be choose to have optional labelling unit.

About Us

1. CHOVYTING was founded in 1999 with 5 million registered capital, and covers an area of 10,000 square meters, Equipped with professional production equipment, such as CNC, lathe machine, slotting machine and so on.
2. Currently CHOVYTING has more than 120 employees, 10 person for research and development, 12 person for sale, and 10 technical person for after sales that includes 5 person work in overseas all year round.
3. Closely with international advanced technology production technology, ChOCYTING has more than 20 patents, developed including automatic inside glue patch bag making machine, 500pcs/min super high speed t shirt bag making machine and 250pcs/min high speed wicketer bag making machine. Multiple series and hundreds of models of bag making machine. Due to the changing of market demand, CHOVYTING is willing and able to customize the machine. All production from CHOVYTING have passed ISO9001:2000, CE, B.V, SGS and GMC. CHOVYTING also is the gold supplier of alibaba and made in China.

60m/min Bag On Roll Making Machine , Perforated Bottom Sealing Bag Making Machine

1. ISO 9001:2000, GSG, SGS, CE, Production Assessment, Gold Supplier certificated
2. With 16 patents for different machines, for eg, CW-800BFS wicket bag machine and CW-800NJT glue patch bag making machine is our Exclusive products in CHINA mainland
3. All machines will be examined and tested before delivery by 5 professional engineers (with more than 15 years machine
experience)

60m/min Bag On Roll Making Machine , Perforated Bottom Sealing Bag Making Machine

Production Capacity:

Product Line Name Production Line Capacity Actual Units Produced (Previous Year)
Bag Making Machine; Film Blowing Machine; Printing Machine; Slitting Machine Bag Making Machine: 30 Sets / Month, Film Blowing Machine: 25 Sets / Month, Printing Machine: 15 Sets / Month, Slitting Machine: 15 Sets / Month Bag Making Machine: 320 Sets, Film Blowing Machine: 200 Sets, Printing Machine: 100 Sets, Slitting Machine: 100 Sets

FAQ:

Q1- Is your company a factory or a trading company?
A1- CHOVYTING is a factory


Q2- Where is your factory? How can i visit your company?
A2- CHOVYTING located in Ruian city, Zhejiang province, China. Its about 40 minutes from shanghai by plane (4 hours by train). All our clients from home and abroad are warmly welcome to visit us.


Q3- What is the suitable material for your machines?
A3- PE, OPP, Composite material, etc. Are suitable for CHOVYTING machines


Q4- What is type machines do you have?
A4 - special for all of plastic bag making machine, like shopping bag, diaper bag, courier bag, stand up zipper pouch ,rolling garbage bag, bread bag, chicken bag etc...


Q5- How many years of your factory
A5- CHOVYTING MACHINERY setted up in 1999


Q6- What is certificate of machine do you have
A6- CE, ISO 2016, and more than 100 piece Patent of machine


Q7- What about your company the development of your company
A7- CHOVYTING Titled as “National key and new products” and Pass identification of the provincial new product; and honored as”patent model enterprise”


Q8- How many exhibition we took part in
A8- We start to took part in CHINAPLAS from 2008 to now, and also K show in German, NPE in America, Arabplast in Dubai, Plastic Eurasia in Turkey etc.


Q9- how many workers from your company
A9- CHOVYTING has more than 150 employees


Q10-what is size of your factory
A10- CHOVYTING factory place have more than 10000 Square meters
