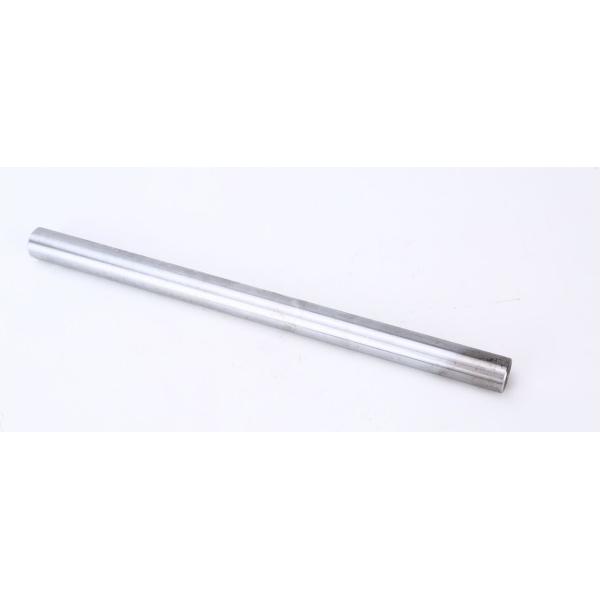

Hard Chrome Plating Induction Hardened Rod HRC50-60 Steel Material
Hard Chrome Plating Induction Hardened Rod HRC50-60 Steel Material
Specifications
Brand Name :
chunfa
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1 ton
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
400ton per month
Delivery Time :
30days
Packaging Details :
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
Chrome Thickness :
20-30 micron
Core Hardness :
25-35 HRC
Diameter :
6-100 mm
Diameter Tolerance :
ISO f7
Impact Strength :
≥ 20 J
Induction Hardness :
HRC50-60
Length :
1000-6000 mm
Material :
Steel
Product :
Induction hardened piston rod
Roundness :
0.01 mm
Standard Length :
1000mm - 8000mm
Straightness :
0.5 mm/m
Surface Hardness :
55-62 HRC
Surface Treatment :
Chrome Plating
Tolerance :
ISO f7
Description

High Precision Hard Chrome Hydraulic Cylinder Rod For Heavy Machine

Chrome Thickness: 20-30 Micron Name: Induction Hardened Piston Rod
Material: Steel Tensile Strength: Not Less Than 610 N/MM2
Yield Strength: Not Less Than 355 N/MM2 Surface Condition: Hard Chrome Plating
High Light:

hardened steel bar

,

induction hardened chrome bar

,

precision Induction hardened piston rod

High Precision Hard Chrome Hydraulic Cylinder Rod For Heavy Machine

Detailed Product Description

1. Material: CK45, ST52, 20MnV6, 42CrMo4, 40Cr

2. Diameter: 6mm - 1000mm

3. Length: 1000mm - 8000mm

4. Complete manufactured equipment
5. Condition: Chrome plated, Quenched / Tempered, Induction hardened, Q / T Induction hardened
6. Case depth:1.5mm - 2.5mm Induction hardness:HRC50 - 60

Detailed Description

1.CHEMICAL COMPOSITION

Material C% Mn% Si% S% P% V% Cr%
Ck45 0.42-0.50 0.50-0.80 0.04 0.035 0.035
ST52 0.22 1.6 0.55 0.035 0.04
20MnV6 0.16-0.22 1.30-1.70 0.10-0.50 0.035 0.035 0.10-0.20
42CrMo4 0.38-0.45 0.60-0.90 0.15-0.40 0.03 0.03 0.90-1.20
40Cr 0.37-0.45 0.50-0.80 0.17-0.37 0.80-1.10

2.MECHANCIAL PROPERTIES

Material T.S N/MM2 Y.S N/MM2 E%(MIN) CHARPY CONDITION
CK45 610 355 15 >41J NORMALIZE
CK45 800 630 20 >41J Q + T
ST52 500 355 22 NORMALIZE
20MnV6 750 590 12 >40J NORMALIZE
42CrMo4 980 850 14 >47J Q + T
40Cr 1000 800 10 Q + T

3. SUPPLY CONDITION

Ground and chrome plated

4. CHROME THICKNESS

20 to 30 micron

5. SURFACE ROUGHNESS

Ra≤0.2 micron and Rt≤2 micro

6. TOLERANCES ON DIA

ISO f7 on the diameter

7.OVALITY

Half of the tolerance ISO f7

8. STRAIGHTNESS

≤0.2MM/M

9. SURFACE HARDNESS

850-1150HV (vickers 100g)

10.COHESION

No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling

in water)

11 .POROSITY

Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10

12 CORROSION RESISTANCE

Test in natural salt spray according to ASTM B 117-72hours

Results evaluation according to ISO 4540 RATING 7-10

13. WELDABILITY

Good

14. PACKING

Anti rust oil to be applied on material and each rod to be packed in paper sleeve

15. CERTIFICATE

All certificate related with material heat treatment and plating is required

We imported one continous chrome plating line from Italy at the beginning of 2016. With this new chrome plating line, we will improve efficiency and product quality a lot.The new chrome plating line is the first one in China and will be the only one in the next five years!
