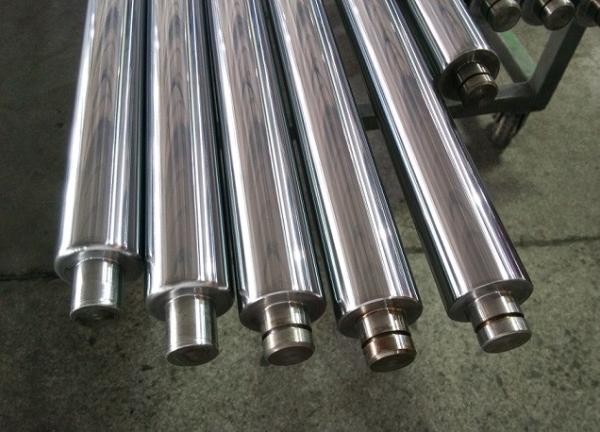

40Cr / CK45 Hard Chrome Plated Rod Tempered Rod For Hydraulic Cylinder
40Cr / CK45 Hard Chrome Plated Rod Tempered Rod For Hydraulic Cylinder
40Cr / CK45 Hard Chrome Plated Rod Tempered Rod For Hydraulic Cylinder
40Cr / CK45 Hard Chrome Plated Rod Tempered Rod For Hydraulic Cylinder
40Cr / CK45 Hard Chrome Plated Rod Tempered Rod For Hydraulic Cylinder
40Cr / CK45 Hard Chrome Plated Rod Tempered Rod For Hydraulic Cylinder
Specifications
Brand Name :
HY
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1 tons
Price :
Negotiation
Payment Terms :
CIF,FOB or other
Supply Ability :
30tons a day
Delivery Time :
30days
Packaging Details :
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
Product :
Chrome plated rod
Material :
Stainless steel, Carbon steel
Surface roughness :
Ra≤0.2micron and Rt≤2micro
Surface hardness :
850-1150 HV (vickers 100g)
Surface treatment :
Chrome plated
Chrome thickness :
20-30 micron
Description

40Cr / CK45 Hard Chrome Plated Rod Tempered Rod For Hydraulic Cylinder

Detailed Product Description

1. Material: CK45, ST52, 20MnV6, 42CrMo4, 40Cr

2. Tensile strength: Not less than 610 N/MM2

3. Yield strength: Not less than 355 N/MM2

4. Advanced inspection apparatus

5. Condition: Chrome plated, Quenched / Tempered, Induction hardened, Q / T Induction hardened

Detailed Description

1.CHEMICAL COMPOSITION

Material

C%

Mn%

Si%

S%

P%

V%

Cr%

Ck45

0.42-0.50

0.50-0.80

0.04

0.035

0.035

ST52

0.22

1.6

0.55

0.035

0.04

20MnV6

0.16-0.22

1.30-1.70

0.10-0.50

0.035

0.035

0.10-0.20

42CrMo4

0.38-0.45

0.60-0.90

0.15-0.40

0.03

0.03

0.90-1.20

40Cr

0.37-0.45

0.50-0.80

0.17-0.37

0.80-1.10

2.MECHANCIAL PROPERTIES

Material

T.S N/MM2

Y.S N/MM2

E%(MIN)

CHARPY

CONDITION

CK45

610

355

15

>41J

NORMALIZE

CK45

800

630

20

>41J

Q + T

ST52

500

355

22

NORMALIZE

20MnV6

750

590

12

>40J

NORMALIZE

42CrMo4

980

850

14

>47J

Q + T

40Cr

1000

800

10

Q + T

3. SUPPLY CONDITION

Ground and chrome plated

4. CHROME THICKNESS

20 to 30 micron

5. SURFACE ROUGHNESS

Ra≤0.2 micron and Rt≤2 micro

6. TOLERANCES ON DIA

ISO f7 on the diameter

7.OVALITY

Half of the tolerance ISO f7

8. STRAIGHTNESS

≤0.2MM/M

9. SURFACE HARDNESS

850-1150HV (vickers 100g)

10.COHESION

No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling

in water)

11 .POROSITY

Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10

12 CORROSION RESISTANCE

Test in natural salt spray according to ASTM B 117-72hours

Results evaluation according to ISO 4540 RATING 7-10

13. WELDABILITY

Good

14. PACKING

Anti rust oil to be applied on material and each rod to be packed in paper sleeve

15. CERTIFICATE

All certificate related with material heat treatment and plating is required

FAQ:

Q: 1. Can I have a sample order?

A: Yes
Q: 2. How long is the lead time for sample?
A: Current sample needs 1-3 days, customized sample needs 5~7days.

Q: 3. what express do you often use to send the samples?
A: DHL, TNT, or SF. It usually takes 3-5 days to arrive.
If sample is ok, finally we will go to mass production.
Welcome to our factory to have a visit! Please contact us in your free time!

40Cr / CK45 Hard Chrome Plated Rod Tempered Rod For Hydraulic Cylinder
