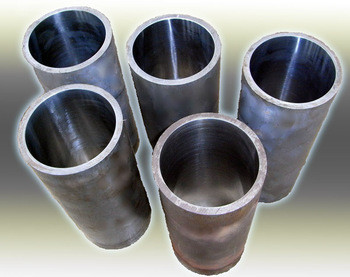

Stainless Steel Honed Hydraulic Cylinder Tubing 5.0m - 5.8m
Stainless Steel Honed Hydraulic Cylinder Tubing 5.0m - 5.8m
Specifications
Brand Name :
HY
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
5 tons
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
30tons a day
Delivery Time :
30days
Packaging Details :
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
Product name :
Hydraulic cylinder tube
Material :
Steel
Length :
5m - 5.8m
Inside honed dia :
H8
Roughness :
Ra 0.2 - 0.4 um
Delivery status :
Stress Relieving Annealed
Description

Stainless Steel Honed Hydraulic Cylinder Tubing 5.0m - 5.8m

Detailed Product Description

1. Specification
GB/T, DIN2391, EN10305-1

2. Delivery Condition
Stress Relieving Annealed a ( +SR, BKS)
As per the request, + N (NBK) or + C ( BK) is available.

3. Outer Diameter
< 40 mm +/-0.2mm
From 40 to 100 mm +/-0.3mm
>100mm +/-0.5mm

4. Wall Thickness
<100mm OD +/-5%
>100mm +/-7.5%

5. Straightness 0.5/1000mm

6. Inside Honed Dia ISO H8

7. Rourghness Ra 0.2~0.4um

8. Length 5.0-5.8m

9. Fix length tolerance
Length<500 +3mm
500< length <=2000 +5mm
2000<length <5000 +10mm
5000<length<7000 +20mm

10. Stencilling Mark
Mill Logo + Specification + Delivery Condition + Steel Grade + Size + Heat Number

11. Tube Ends
Tube ends shall cut square to the tube axis and be free from excessive burrs.
Both ends protected with Plastic caps.

As the result of stress relieved annealing after the final drawing, residual stresses are reduced,

forming within defined limits is made possible, and dimensional changes during/after machining are

minimized.
