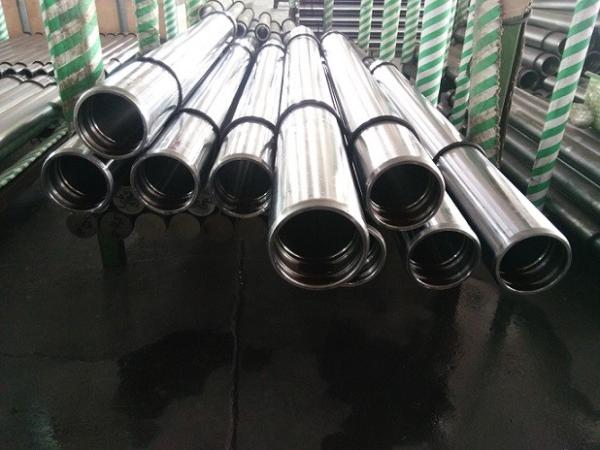

Cold Drawn Hollow Round Bar Corrosion Resistant High Precision
Cold Drawn Hollow Round Bar Corrosion Resistant High Precision
Cold Drawn Hollow Round Bar Corrosion Resistant High Precision
Cold Drawn Hollow Round Bar Corrosion Resistant High Precision
Specifications
Brand Name :
HY
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
5 tons
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
30tons a day
Delivery Time :
30days
Packaging Details :
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
Product name :
Hollow round bar
Raw material :
Steel
Tensile strength :
Not less than 610 N/MM2
Yield strength :
Not less than 355 N/MM2
Surface treatment :
Hard chrome plating
Chrome thickness :
20-30 micron
Description

Cold Drawn Hollow Round Bar Corrosion Resistant High Precision


Detailed Product Description

1. Material: CK45, ST52, 20MnV6, 42CrMo4, 40Cr
2. Diameter: 6mm - 1000mm
3. Length: 1000mm - 8000mm
4. Advanced inspection apparatus
5. Condition: Chrome plated, Quenched / Tempered, Induction hardened, Q / T Induction hardened


Detailed Description
1.CHEMICAL COMPOSITION

Material

C%

Mn%

Si%

S%

P%

V%

Cr%

Ck45

0.42-0.50

0.50-0.80

0.04

0.035

0.035

ST52

0.22

1.6

0.55

0.035

0.04

20MnV6

0.16-0.22

1.30-1.70

0.10-0.50

0.035

0.035

0.10-0.20

42CrMo4

0.38-0.45

0.60-0.90

0.15-0.40

0.03

0.03

0.90-1.20

40Cr

0.37-0.45

0.50-0.80

0.17-0.37

0.80-1.10


2.MECHANCIAL PROPERTIES

Material

T.S N/MM2

Y.S N/MM2

E%(MIN)

CHARPY

CONDITION

CK45

610

355

15

>41J

NORMALIZE

CK45

800

630

20

>41J

Q + T

ST52

500

355

22

NORMALIZE

20MnV6

750

590

12

>40J

NORMALIZE

42CrMo4

980

850

14

>47J

Q + T

40Cr

1000

800

10

Q + T


3. SUPPLY CONDITION
Ground and chrome plated
4. CHROME THICKNESS
20 to 30 micron
5. SURFACE ROUGHNESS
Ra≤0.2 micron and Rt≤2 micro
6. TOLERANCES ON DIA
ISO f7 on the diameter
7.OVALITY
Half of the tolerance ISO f7
8. STRAIGHTNESS
≤0.2MM/M
9. SURFACE HARDNESS
850-1150HV (vickers 100g)
10.COHESION
No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling
in water)
11 .POROSITY
Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10
12 CORROSION RESISTANCE
Test in natural salt spray according to ASTM B 117-72hours
Results evaluation according to ISO 4540 RATING 7-10
13. WELDABILITY
Good
14. PACKING
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
15. CERTIFICATE
All certificate related with material heat treatment and plating is required

We imported one continous chrome plating line from Italy at the beginning of 2016. With this new chrome plating line, we will improve efficiency and product quality a lot.
