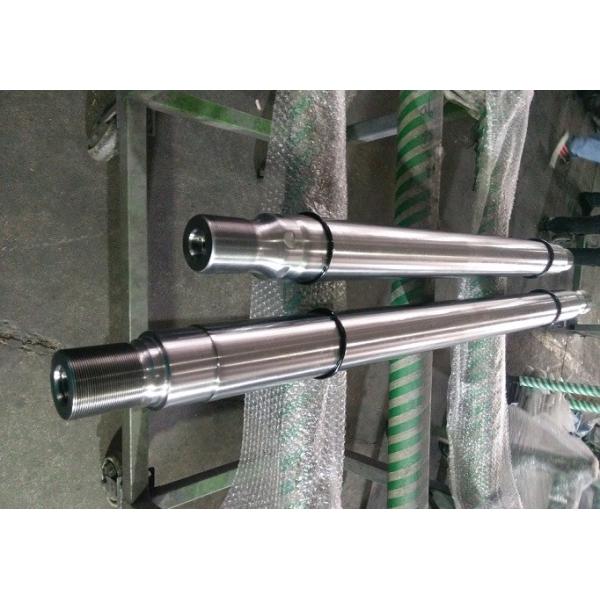

ISO F7 Micro Alloy Steel Hydraulic Cylinder Rods Diameter 35-140 Mm Better Tensile Strength


Product Description

1. The directly turning non-quenched and tempered steel products are used for manufacturing injection

molding machine draglink, engineering machinery push rod and hydraulic prop with the feature that

hardened and tempered steel mechanical property needless quenched and tempered process.

2. Hardness: Hardness is more uniform on the whole cross section than quenched and tempered

42CrMo4, 40Cr and CK45

3. Turning performance: Turning performance is commensurate to 42CrMo4, 40Cr and CK45 or be

superior to them.
4. Save manufacturing expenses and avoid waste in the tempering process.
5. Shortened processing periods, enhance productivity and reduce the occupied capital.

6. Low processing cost, needless quenched and tempered process and the second turning

Detailed Description

1. MATERIAL: HY4700, HY4520

2. CHEMICAL COMPOSITION(%)

3. MECHANICAL PROPERTIES

4. SUPPLY CONDITION
Ground and chrome plated
5. CHROME THICKNESS
20 to 30 micron
6. SURFACE ROUGHNESS
Ra≤0.2 micron and Rt≤2 micron

7 .SURFACE HARDNESS
850-1150HV (vickers 100g)
8. STRAIGHTNESS
≤0.2MM/M

9. TOLERANCES ON DIA
ISO f7 on the diameter
10.OVALITY
Half of the tolerance ISO f7

11. CORROSION RESISTANCE
Test in natural salt spray according to ASTM B 117-120hours
Results evaluation according to ISO 4540 RATING 7-10

12. COHESION

No craks,breaking or detaching after thermic shock(warming up at 300 celsius degrees

and cooling in water)

13 .POROSITY
Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10

14. WELDABILITY
Good
15. PACKING
Anti rust oil to be applied on material and each rod to be packed in paper sleeve

16. CERTIFICATE
All certificate related with material heat treatment and plating is required
