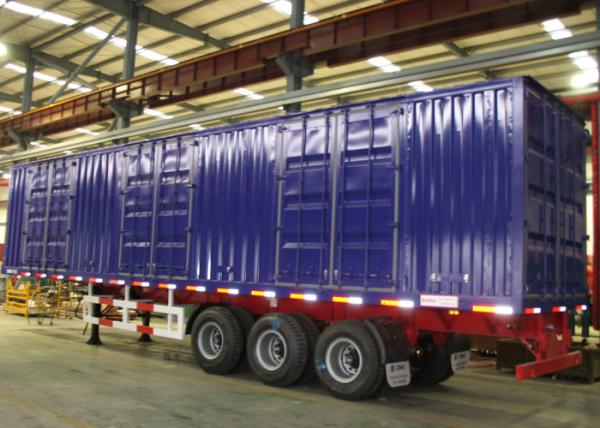

50ft Enclosed Steel Dry Freight Box Trailer Dry Freight Van With Three Axles
50ft Enclosed Steel Dry Freight Box Trailer Dry Freight Van With Three Axles
50ft Enclosed Steel Dry Freight Box Trailer Dry Freight Van With Three Axles
50ft Enclosed Steel Dry Freight Box Trailer Dry Freight Van With Three Axles
50ft Enclosed Steel Dry Freight Box Trailer Dry Freight Van With Three Axles
50ft Enclosed Steel Dry Freight Box Trailer Dry Freight Van With Three Axles
Specifications
Brand Name :
GET
Model Number :
9323XXY-GB
Certification :
ISO9001/TS16949
Place of Origin :
CHINA
MOQ :
3 SETS
Payment Terms :
L/C, T/T
Supply Ability :
100 units per month
Delivery Time :
20 WORKING DAYS
Packaging Details :
IN CASE OR ON BOX
Core Material :
Steel
Size :
Customized
Profiles :
Steel box
box Type :
Closed steel box
Description

50ft Closed Steel dry freight box Trailer with 3 axles for bulk and case packed cargos

Dry Freight truck Box or van trailers are the most common type. They are quite simply a metal or composite box on wheels with some doors on the back, though some offer additional access doors on the sides.

The Dry Freight truck body we supplied with composite panels, Core Material with XPS, Waterproof Plywood, Honeycomb, composited with Surface material of FRP, Aluminum Plate or Steel Plate for different Dry Cargo box demands.

50ft Closed Steel dry freight box Trailer with 3 axles for bulk and case packed cargos 9323XXY-GB
overall outside dimension (mm) Length 14600
Width 2550
Height (unload) 4000
Outside dimension of Drop Side body (mm) Length 14400
Width 2528
Height 2500
capacity(L) 　
GVW(kg) 40000
vehicle total weight(kg) 8000
rated payload(kg) 32000
Wheel base(mm) 8000+1310+1310
Tread(mm) Tread at front 　
Tread at rear 2040/2040/2040
Front/Rear Overhang(mm) /2380
Approach/Departure angle(°) /13
Rated payload of Vehicle saddle 16000
Axle BPW 12T*3
Axle Capacity kgs /8000/8000/8000
Tyres 425/65R22.5*6
Trailer Material Carbon Steel
Transport Material : Bulk or Light box cargos
Twist Locks 　
Insulated Cover nile
Suspension AIR SPRING SUSPENSION
Leaf Spring 　
Remark:
BOX WALL MATERIAL:
CARBON STEEL PAD OR CORRUGATED SHEET
Frame Structure
Tail Door: Steel pad with Container lock
WABCO Brake System, Clearance: 540m
Floor: 3mm Checked Steel Flatbed
Option: Floor center Moveable parts for Roil and Heavy Srcroll with fix system
Steel Structure:
Material:High strength low alloy steel with 350 MPa yield strength is used for welded I-beam and 235 MPa in other fabricated parts.
Floor:3mm thick checkered steel plate.
OEM Parts Configuration:
King Pin: 3.5” /2” exchangeable king pin, Supplier: JOST.
Landing Gear: 2 speed road side winding with sand shoe,Type: JOST C200T.
Suspension:Mechanical suspension with 11 / 10/ 8/7 leaf spring (W100mm x T12mm per leaf). options: Bogie Suspension, Air Spring Suspension
Axles: square axle with 12/13/14/15/20 tons capacity. Supplier & type: BPW/ FUWA/SAF/L1. Made in China..
Tires: 11R22.5 OPTIONS: 12R22.5, 315/80R22.5,385/65R22.5 ,
Brake System: Dual air brake system, Wabco relay emergency valve, OPTIONS: ABS.
Brake Chamber: 30 type on front axle.30/30 type on other axles,
Electrical System: Complete 24V installation with modular wiring harness. 7 pole plug placed at front in accordance to ISO
Others:
Spare Tire Carrier: Equipped two sets per chassis without spare tire.
Side Guard: Steel.
Tool Box: Equipped one set.
Painting: Color by customer’s requirement.
Marking: By customer’s requirement.
Options: Oil Tanker: 300L carbon steel.
