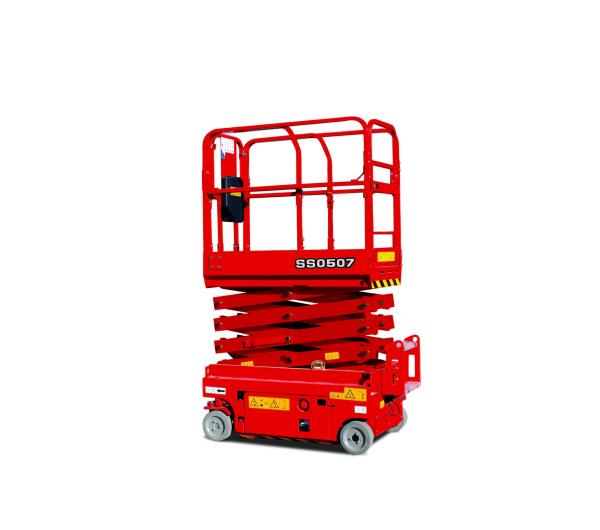

6m 20ft Height Lift GETSS050 Electric Hydraulic Scissor Lift Long Lasting Performance
6m 20ft Height Lift GETSS050 Electric Hydraulic Scissor Lift Long Lasting Performance
Specifications
Brand Name :
GET
Model Number :
GETSS0507
Certification :
EU Directive 2006/42/EC,harmonized standard EN280:2013+A1:2015 Standard Compliance: CE compliance,EU Directive 2006/42/EC,harmonized standard EN280:2013+A1:2015
Place of Origin :
China
MOQ :
2 units
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
500 Units /month
Delivery Time :
15-30 working days
Max. Working Height :
6.3 m
lift Capacity :
230 kgs
Platform Extension :
0.9 m
Platform Height :
20 ft
Description
6.3 m Electric Scissor lifter - Aerial Work Platforms- 20ft height lift - four wheel drive - GETSS0507
Product Description
Optimization and match of hydraulic system delivers longer lasting performance
Optimized electronic control system for better brake ability on a long downhill
Improved steering mechanism reduces tire wear during turning
Battery powered with zero emission and environmental-friendly
Model GETSS0507
Lift Capacity (kg) 230
Lift Capacity Extension (kg) 113
Max Platform Occupants 2
Max Working Height (m) 6.3
Max Platform Height (m) 4.3
Overall Length (m) 1.53
Overall Width (m) 0.81
Stowed Height-Rails Unfolded (m) 2.13
Stowed Height-Rails Folded (m) 1.87
Platform Size(LXW) (m) 1.35X0.7
Platform Extension Length (m) 0.6
Ground Clearance(Stowed)(m) 0.05
Ground Clearance(Raised)(m) 0.016
Wheelbase (m) 1.12
Turning Radius(Inside/Outside)(m) 0/1.5
Driving Motor 24V/0.5kw
Lifting Motor 24V/1.6KW
Driving Speed(Stowed) (km/h) 4
Driving Speed(Raised) (km/h) 0.5
Up/Down Speed (second) 25/20
Battery 2×12V/150Ah
Charger 24V/30A
Max Gradeability (%) 25
Max Slope (°) 1.5°/3°
Tyre 230×80
Machine Weight kg 990
Pictures 　
EU Directive 2006/42/EC,harmonized standard EN280:2013+A1:2015
Standard Compliance: CE compliance,EU Directive 2006/42/EC,harmonized standard EN280:2013+A1:2015
Product specifications are subject to change without for notice or obligation.
Technical Parameters
 　
Model
 SS1432E
Platform Capacity 510 lbs
Capacity On Deck Extension 250 lbs
Platform Occupants 2
Work Height(A+2) 20ft8in
Overall Length(B) 5ft
Overall Width(C) 2ft8in
Overall Height - Rails Down 6ft3in
Overall Height - Rails Up 7ft
Platform Extension 2ft
Drive Speed (Lowered/Elevated) 2.48/0.31 mph
Lift/Lower Time 25/20sec
Gradeability 25%
Max. Slope 1.5°/3°
Machine Weight 2140 lbs
