Mechanical Suspension Bogie Suspension In Trucks Low Mounting Series 24T
Mechanical Suspension Bogie Suspension In Trucks Low Mounting Series 24T
Specifications
Brand Name :
GET
Model Number :
Bogie Suspension
Certification :
ADR,DOT
Place of Origin :
CHINA
MOQ :
5
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 UNITS / MONTH
Delivery Time :
10 WORKING DAYS
Packaging Details :
CASES
Description

Truck Trailer Mechanical Suspension , Bogie suspension , low Mounting Series , 24T , 28T , 32T , 36T

Truck Trailer Mechanical Suspension , Bogie suspension , low Mounting Series , 24T , 28T , 32T , 36T
Type of suspension Low Mounting Series
Capacity of Bogie suspension 24T,28T,32T,36T
Track of Bogie suspension 1840MM/1847mm
Optional : ABS
W-Bogie

This suspension system is designed to handle heavy loads under very special conditions and extremely rough terrain. High capacities and exceptional high spring travel ensure optimized operation in off-road conditions.
Features and Benefits

Proven
This suspension system provides a direct connection between the trailer frame and the trunnion support eliminating additional fastener brackets.

Strong
The trunnion connection is extremely strong and wear-resistant. Thick walled brass bushings, mounted as floating elements, guarantee durability and reduced maintenance of the trunnion tube bearing.

Easy to Install
The solid mounting bracket fits all trailer styles. Easy installation saves time and cost.

Reliable
The spring ends are secured to the axles and clamped in rubber. Strong and reliable leaf-springs maintain axle-alignment in all road-conditions.

Better Ride Quality
The extremely high spring travel ensures superior handling in off-road condition.

Model Variations
This suspension will be manufactured according to your requirements.

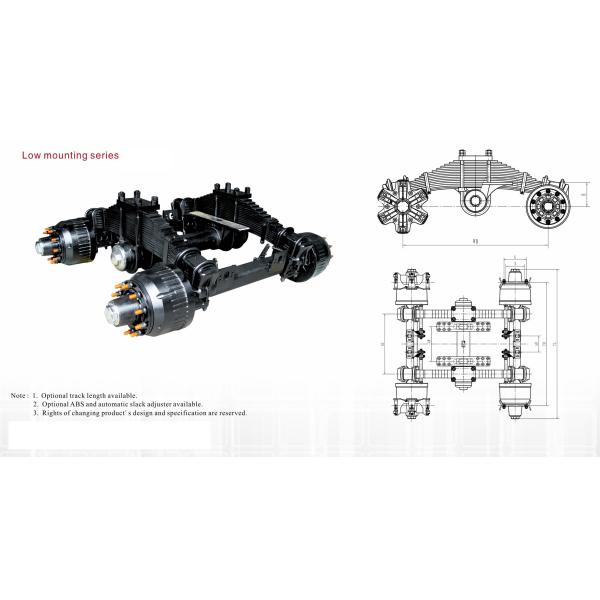

Low Mounting Series
Bogie suspension Model Bogie suspension
Capacity (kg)		 Brake Seriesφ x Width (mm) (TD)
Track TR (mm)		 (SC)
Spring center (mm)		 (WB)
Wheel Base mm		 Distanceof Brake Chamber
mm		 Bearing H
Height of Pedesta
mm		 (AM)
Support Center
mm		 Type of Wheel Wheel Stud P.C.D/ PILOT HOLE DIAMETER Tyre Rim Spacer Spring Wide/QTY Weight
KGS		 (TL)
Total Length
mm
GET BLG1868 2*18000 S420*200 1840 900 1550 243 32222/32314 263 520 Spoke Wheel 6-M20x2 / 12.00R24 8.5V-24 147-24 120mm/17p 2538 2250
GET BLG1811 2*18000 S420*220 1840 900 1550 262 32222/32314 263 520 Disc Wheel 10-M22x1.5 335/281 12.00R20 8.5V-20 - 120mm/17p 2376 2250
GET BLG1816 2*16000 S420*200 1854 900 1550 262 32222/32314 263 520 Disc Wheel 10-M22x2 335/281 12.00R20 8.5V-20 φ382/φ281/14 120mm/17p 2376 2235
GET BLG1668 2*16000 S420*200 1840 900 1550 243 32222/32314 263 520 Spoke Wheel 6-M20x2 / 12.00R24 8.5V-24 147-24 120mm/17p 2510 2250
GET BLG1667 2*16000 S420*200 1840 900 1550 243 32222/32314 263 520 Spoke Wheel 6-M20x2 / 12.00R24 8.5V-24 130-20 120mm/17p 　 2250
GET BLG1611 2*16000 S420*200 1840 900 1550 243 32222/32314 263 520 Disc Wheel 10-M22x1.5 335/281 12.00R20 8.5V-20 - 120mm/17p 2354 2250
GET BLG1616 2*16000 S420*200 1854 900 1550 243 32222/32314 263 520 Disc Wheel 10-M22x2 335/281 12.00R20 8.5V-20 φ382/φ281/14 120mm/17p 2354 2235
GET BLG1468 2*14000 S420*200 1846 900 1550 245 32219/33215 263 520 Spoke Wheel 6-M20x2 / 12.00R24 8.5V-24 147-24 120mm/17p 2402 2190
GET BLG1411 2*14000 S420*200 1840 900 1550 245 32219/33215 263 520 Disc Wheel 10-M22x1.5 335/281 12.00R20 8.5V-20 - 120mm/17p 2270 2190
GET BLG1416 2*16000 S420*200 1854 900 1550 245 32219/33215 263 520 Disc Wheel 10-M22x2 335/281 12.00R20 8.5V-20 φ382/φ281/14 120mm/17p 2270 2175
GET BLG1268 2*12000 S420*180 1847 980 1500 392 33118/33213 245 660 Spoke Wheel 6-M20x2 / 12.00R24 8.5V-24 147-24 90mm/18p 1913 2150
GET BLG1267 2*12000 S420*180 1847 980 1400 392 33118/33213 245 660 Spoke Wheel 6-M20x2 / 12.00R24 8.5V-24 130-20 90mm/18p 　 2150
GET BLG1211 2*12000 S420*180 1840 980 1400 421 33118/33213 245 660 Disc Wheel 10-M22x1.5 335/281 12.00R20 8.5V-20 - 90mm/18p 1767 2160
GET BLG1216 2*12000 S420*180 1854 980 1400 421 33118/33213 245 660 Disc Wheel 10-M22x2 335/281 12.00R20 8.5V-20 φ382/φ281/14 90mm/18p 1767 2145
