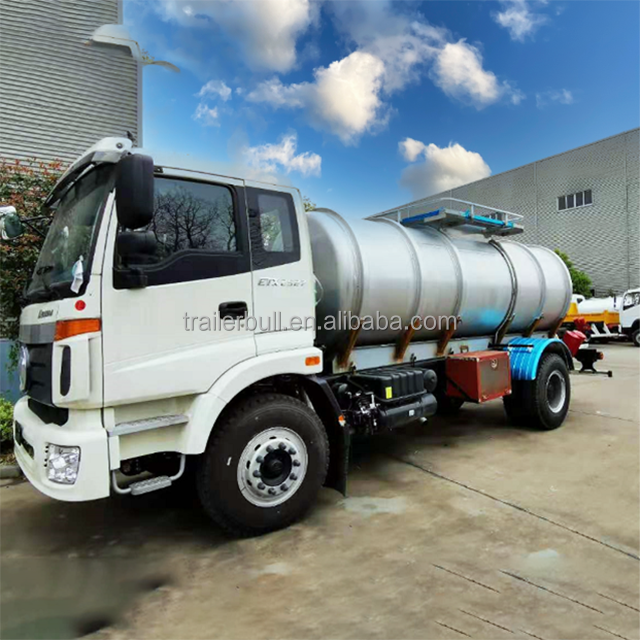

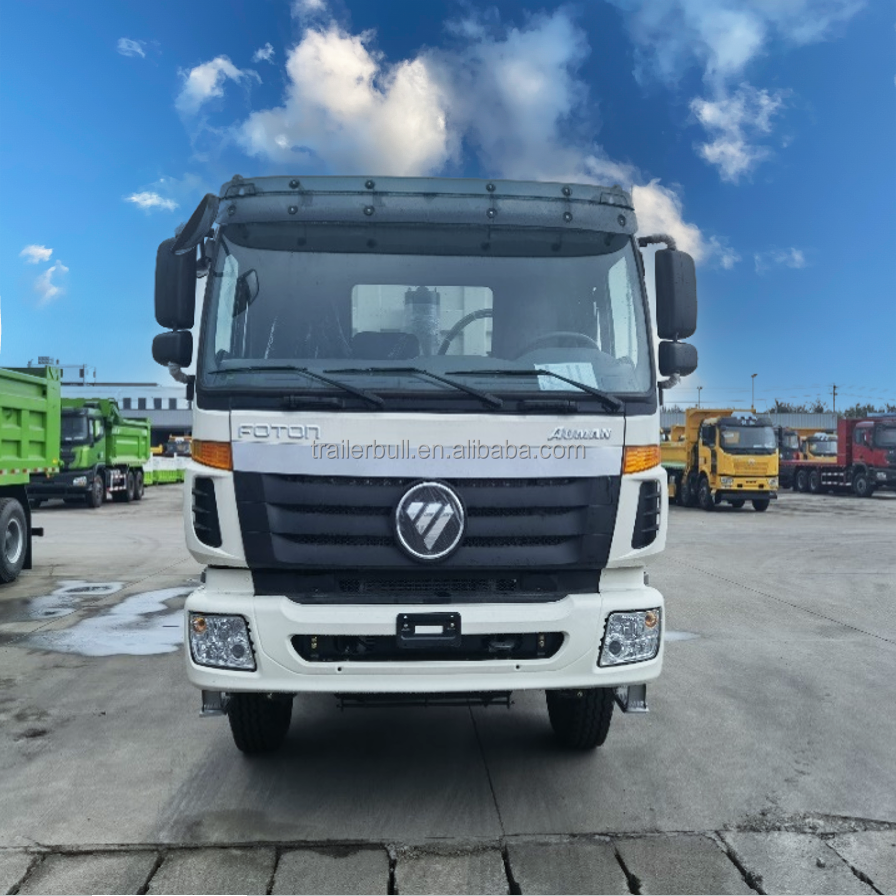

Truck Model | | BJ5182GSS-1 | |

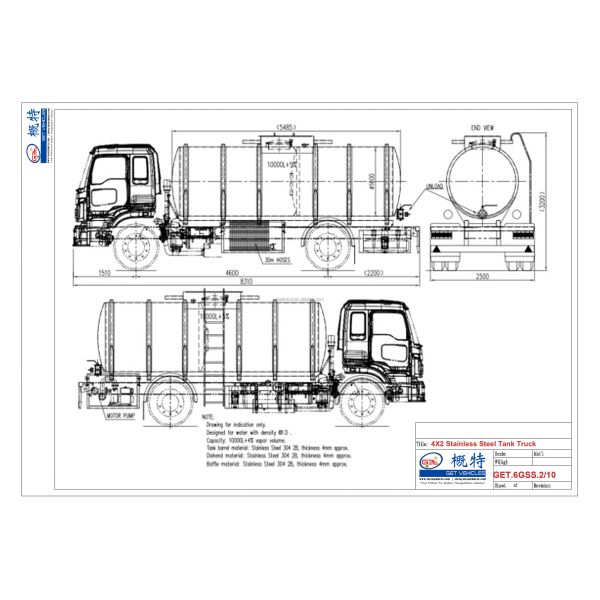

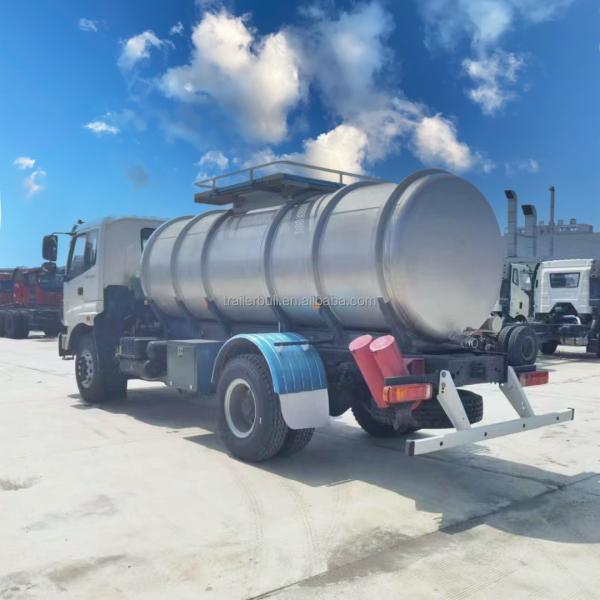

Main Parameters | Overall Dimension LxWxH mm | 8310×2500×3200 | |
| Drive Type | 42 | |
| Wheelbase mm | 4600 | |
| Tread (F/R) mm | 2010/1865 | |
Weight Details | Tare Weight kg | 7004 | |
| Capacity kg | 10866 | |
| Passenge Carrier | 3 | |
| G.V.Wkg | 18000 | |
Performace Parameters | MAX. Speedkm/h | 89 | |
| Max. gradability% | 38 | |
Engine | Model | WP10.270E32 | |
| DisplacementL | 9.726 | |
| / Powerkw/rpm | 199/270(2200 | |
| / Max.TortueN.m/rpm | 1100(1200-1600) | |
Transmission | Model | 9JS119T-B(Q) | |
Clutch | Model | diaphragm spring clutch | |
Rear Axle | / Model /Ratio | 13Tdouble reduction/4.8 | |
Suspension | / Front | Longitudinal leaf spring + cylinder shock absorber,9 | |
| / Rear | Longitudinal main and auxiliary leaf springs,9+6 | |
Steering | | AM75L | |
Brake System | Service brake | Double circuit pneumatic drum | |
| Parking Brake | Energy storage spring air brake | |
| Auxiliary brake | Engine exhaust brake | |
Tires | | 6+1/11.00R20 | |
Fuel tank (L) | | 380 | |
Others | | Manual cab lift, airbag seat, manual rearview mirror glass lifter, air conditioning |
A.TANK BARREL | | | ||
1. Tank Profile | Round shape | | ||
2. Test pressure | Hydrostatic test to5 psi (35 Kpa) on each compartment. 5pas (35Kpa) | | ||
| | | ||
3. Working pressure | Atmospheric. | | ||
4. Capacity | 10000L plus 3~5% ullage. 10000L+3-5% | | ||
5. Compartments | Single compartment. | | ||
6. Interior weld finish | Not polished or grinded (W-0). | | ||
7. Exterior weld finish | Not polished or grinded (W-0). | | ||
8. Shell material | Stainless steel 304 2B. 304 2B | | ||
a) Top | 3.7mm nominal. 3.7mm | | ||
b) Sides | 3.7mm nominal. 3.7mm | | ||
c) Bottom | 3.7mm nominal. 3.7mm | | ||
9. End Plate | Stainless steel 304 2B, 3.7mm nominal. 3.7mm | | ||
| All single heads dished and flanged. | | ||
10. Bulkhead | Nil. | | ||
11. Baffle / Surge Heads | Stainless steel 304 2B, 3.7mm nominal. 3.7mm | | ||
| Dished with flap. | | ||
| 2 pcs.2 | | ||
12. Spill molding and rollover protection | Stainless steel around the dome with drain hose. | | ||
13. Spill molding lids | Nil. | | ||
14. Outer rings | 304-2B stainless steel, 60mm height, 3mm nominal, continuously welded. 304 2B 60mm3mm | | ||
| | | ||
15. Frame | Carbon steel independent. | | ||
16. Loaders and brackets | Carbon steel. | | ||
| | | ||
15. Isolation | Nil. | | ||
16. Exterior lining | Nil. | | ||
B. TANK FITTINGS AND PIPING | | | ||
| | | ||
1. Manholes | 20" diameter with 6 stainless steel wing nuts, located at the top center | | ||
| 1 pc. 2061 | | ||
2. Pressure Vacuum Vent | Two per compartment. 6~12 kPa pressure, 2~4 kPa vacuum. | | ||
| 26~12 kPa , 2~4 kPa | | ||
| Chinese Brand | | ||
| | | ||
6.Foot valve | Nil. | | ||
7. Discharge system | 3 diameter discharge with 3" diameter butterfly valve, 3" stainless steel male camlock coupling and quick cap, located at the back of the tank. | | ||
| | | ||
8. Piping | Nil. | | ||
9. Thermometer | Nil. | | ||
10. Steam trace | Nil. | | ||
11. Overfill Prevention | Nil. | | ||
12. Tow Hook | Nil. | | ||
13. Product Indicators | Nil. | | ||
| | | ||
C. ACCESSORIES | | | ||

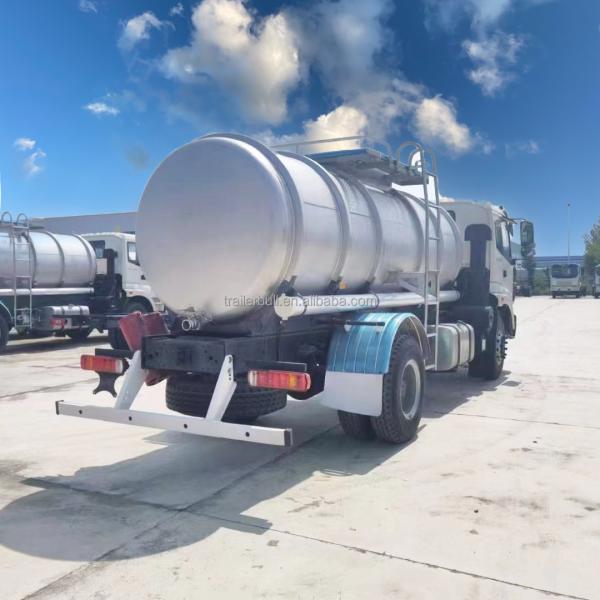

1. Ladder | Stainless steel, 400mm wide, with non skid rungs and lateral handles, mounted at right middle of tanker. 400mm | | ||
| | | ||
2. Walkway | Extruded aluminium around dome. | | ||
| | | ||
3. Hose Carries | 1 no, hose carrier (round tubes) to fit 159 x 6meter (236") hose close type complete with brackets to be installed at the right side. | | ||
4. Hose | Firemen type flexible discharge hoses, 30m 2.5" for discharge. and flexible plastics suction hoses, 5.9m 3"for suction, 3" female camlock coupling at both ends. 2.530 | | ||
5. Motor Pump | BRIGGS & STRATTON Gasoline motor , 4 stroke motor, fuel tank capacity 4.0 liters of gasoline, WB30 pump with a 3" input and outlet diameter, 7m suction head, discharge capacity 900L/min (238Gal/min) pump head pressure 33 m, weight 30kg. +WB 30 | | ||
6. Toolbox | Nil. | | ||
7. Rear Bumper | Aluminium member to accommodate light assembly and number plate to cover full width of the tank. | | ||
| Steel bumper with ground clearance 500mm approx. | | ||
| 500mm | | ||
9. Hazchem Plate | Nil. | | ||
10. Mudguard | Aluminum over suspension and the upper coupler. | | ||
| Mud flaps rigid plastic at the rear. | | ||
11. Lights & Wiring | 24V. ISO 1185 7 pin socket. 24ISO 1185 | | ||
| Harness: oil and vapour proof cable. | | ||
| Front: nil. | | ||
| Side: | | ||
| Mark lamp 3Pcs/side, LED.3LED | | ||
| Reflector 3Pcs/side 3 | | ||
| Turning lamp 1Pcs/side, LED.1 | | ||
| Rear Bump: | | ||
| Reverse lamp R-L 2Pcs, LED. 2 | | ||
| Turning lamp R-L 2Pcs, LED. 2 | | ||
| Brake lamp R-L 2Pcs, LED. 2 | | ||
| Register plate light | | ||
| Rear top: nil. | | ||
| Brand of Wiring: Phillips | | ||
| | | ||
12. Reverse alarm | Nil. | | ||
13. Connector Box | At the center in the front dishend | | ||
14. Sticker | 50mm wide red-white reflective sticker, mounted at both sides and rear bump. 50mm | | ||
15. Hand rail | Nil. | | ||
16. Fire Extinguisher | 8kg , 2Pcs. 8 | | ||
| Carbon steel extinguisher holder located on the landing gear on the curb side. | | ||
17. Drains hose | water drains hose 2", installed at the back of spill molding2 | | ||
| | | ||
18. Wheel chocks | Nil. | | ||
19. Traffic cone | Nil. | | ||
21. Spare wheel bracket | 1set | | ||
| Carbon steel, basket type, located behind the landing gear. | | ||
21. Painting | Polyurethane medium Aluminium gray, applied over epoxy primer on carbon steel elements | |
