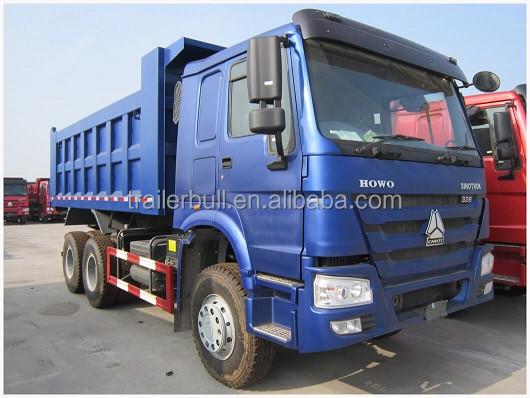

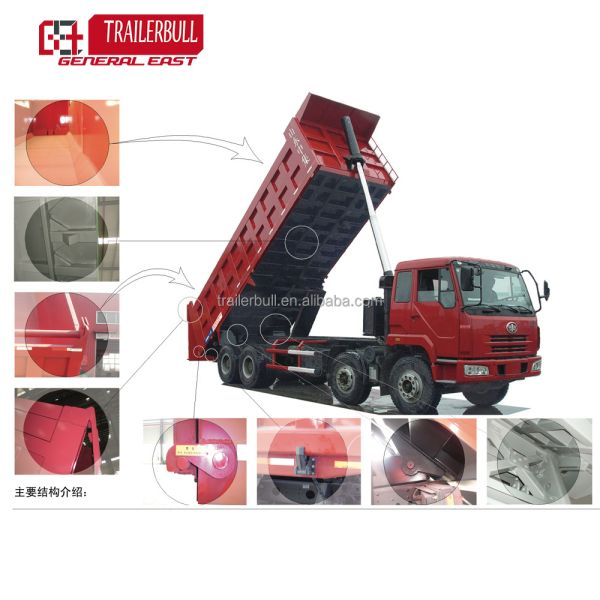

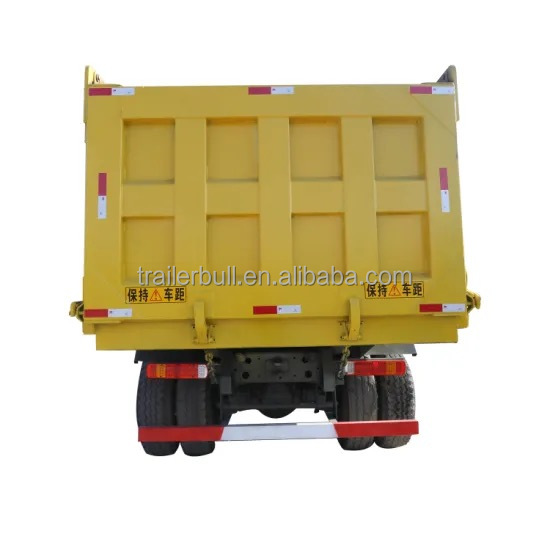

HOWO 6*4-336HP-18cbm-Dump tipper truck | | | ZZ3257N3247B | ||
Weight Parameter | Vehicle Dead weight(kg) | | 12090 | ||
| Rated loading capacity l(kg) | | 19900 | ||
| Gross vehicle weight(kg) | | 32000 | ||
Dimension Parameter | External Dimensions(mm) | Length | 7934 | ||
| | Width | 2496 | ||
| | Height | 3386 | ||
| Dimensions fo the tipper Van(mm) | Length | 5400 | ||
| | Width | 2300 | ||
| | Height | 1500 | ||
| Thickness of the Tipper Van(mm) | Floor | 8 | ||
| | Side | 6 | ||
| Hydraulic System | | Hyva | ||
| wheelbase(mm) | | 3225+1350 | ||
| Tread (mm) | Front | 2022 | ||
| | Rear | 1830/1830 | ||
| Overhang Front/Rear (mm) | | 1500/1859 | ||
| Approach/Departure Angle(°) | | 19/24 | ||
Performance Parameter | Maximum driving speed(km/h) | | 75 | ||
Recommended Configuration | Engine 4 stroke direct injection diesel engine | Engine Type | WD615.69 | ||
| | | Euro II emission standard | ||
| | Rated power (Hp) | 336 | ||
| | Displacement L | 9.726 | ||
| | Fuel | Diesel | ||
| Transmission | | HW15710 | ||
| Clutch(mm) | | 420 | ||
| Axle Capacity( kgs) | Front | 6500 | ||
| | Rear | 13000*2 | ||
| Fuel Tank(L) | | 300 | ||
| Chassis Cross-section(mm) | | 300*80*8 | ||
| Suspension(Front,Back) | | 9/12,10/12 | ||
| Tyre | | 11R22.5*11 |
