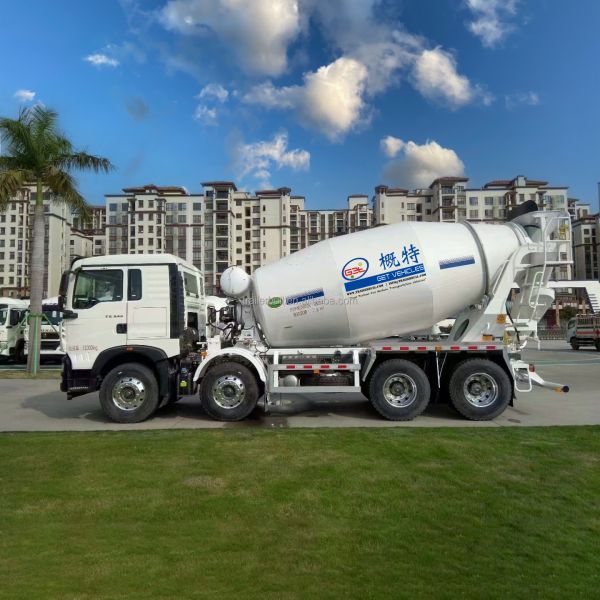

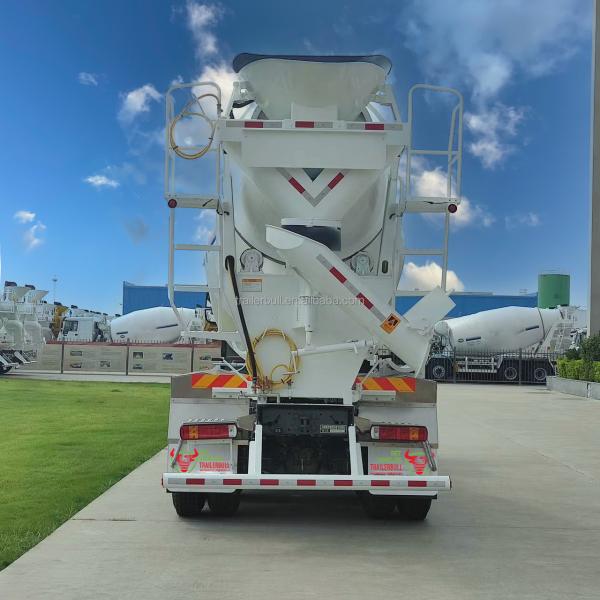

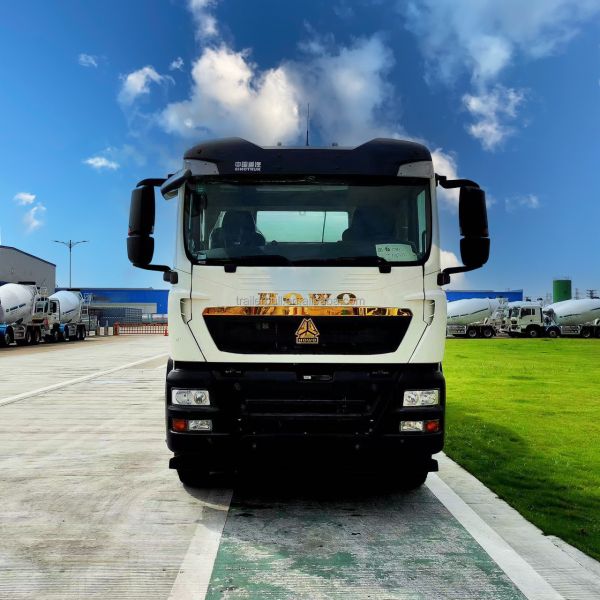

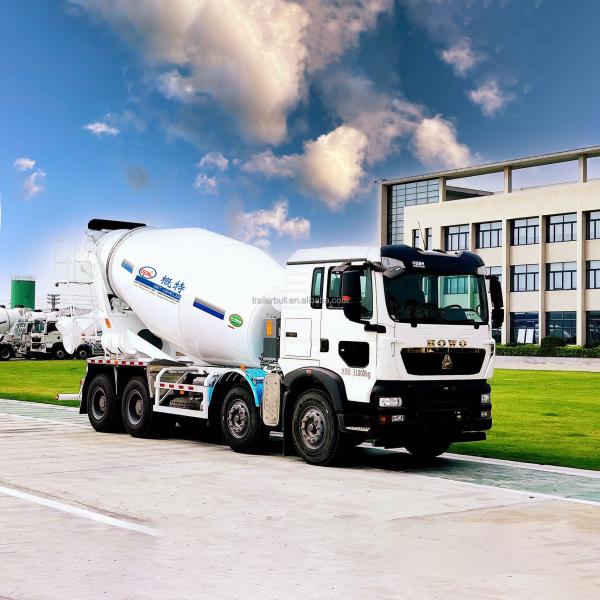

Sinotruk HOWO TX Series 350HP Mobile Concrete Mixer Truck 10cbm For Heavy Duty Truck Chassis
Sinotruk HOWO TX Series 350HP Mobile Concrete Mixer Truck 10cbm For Heavy Duty Truck Chassis
Sinotruk HOWO TX Series 350HP Mobile Concrete Mixer Truck 10cbm For Heavy Duty Truck Chassis
Sinotruk HOWO TX Series 350HP Mobile Concrete Mixer Truck 10cbm For Heavy Duty Truck Chassis
Sinotruk HOWO TX Series 350HP Mobile Concrete Mixer Truck 10cbm For Heavy Duty Truck Chassis
Sinotruk HOWO TX Series 350HP Mobile Concrete Mixer Truck 10cbm For Heavy Duty Truck Chassis
Sinotruk HOWO TX Series 350HP Mobile Concrete Mixer Truck 10cbm For Heavy Duty Truck Chassis
Sinotruk HOWO TX Series 350HP Mobile Concrete Mixer Truck 10cbm For Heavy Duty Truck Chassis
Sinotruk HOWO TX Series 350HP Mobile Concrete Mixer Truck 10cbm For Heavy Duty Truck Chassis
Sinotruk HOWO TX Series 350HP Mobile Concrete Mixer Truck 10cbm For Heavy Duty Truck Chassis
Sinotruk HOWO TX Series 350HP Mobile Concrete Mixer Truck 10cbm For Heavy Duty Truck Chassis
Sinotruk HOWO TX Series 350HP Mobile Concrete Mixer Truck 10cbm For Heavy Duty Truck Chassis
Specifications
Place of Origin :
China
Brand Name :
GET VEHICLES | HOWO
Packaging Details :
BULK VESSEL , ROL-ROL @ CBU
Supply Ability :
200 Unit/Units per Month
Price :
$56,540.00/units 1-4 units
Condition :
New
Transmission Type :
Manual
Emission Standard :
EURO 5
Fuel Type :
Diesel
Dimensions (L x W x H) (mm) :
9960x2520x3965
Gross Vehicle Weight :
31000
After-sales Service Provided :
Online support
Product name :
Concrete Mixer Truck
Mixer Tank Volume :
10 cbm
Drive Type :
8x4,12 Wheels
Chassis brand :
Sinotruk HOWO TX Series
Cab :
MAN Technology
COLOR :
White
Engine :
350HP Euro V /IV
Wheelbase :
1800+3025+1400
Hydraulic Pump :
SUNNY 90 /PMH P90
reduction gears :
TMG 51.2/PMP6.5
Port :
QINGDAO,CHINA
Description
Product Description
Sinotruk HOWO TX Series 350HP Mobile Concrete Mixer Truck 10cbm For Heavy Duty Truck Chassis
Sinotruk HOWO TX Series 350HP Mobile Concrete Mixer Truck 10cbm For Heavy Duty Truck Chassis
Sinotruk HOWO TX Series 350HP Mobile Concrete Mixer Truck 10cbm For Heavy Duty Truck Chassis
Sinotruk HOWO TX Series 350HP Mobile Concrete Mixer Truck 10cbm For Heavy Duty Truck Chassis
Sinotruk HOWO TX Series 350HP Mobile Concrete Mixer Truck 10cbm For Heavy Duty Truck Chassis
Specification
vehicle Type
Concrete Mixer Truck
Drive type
8x4
Dimension(L×W ×H)(unloaded)
9960×2520×3965
Mix round cubage (m3)
10
Rotary speed of the drum(r/min)
0-18
Input speed(m3 /min)
≥3
Output speed(m3 /min)
≥3
The rate of remaining
≤1%
Hydraulic system
Pump/ Motor/Retarder IMPORT PARTS
Approaching angle/Departure angle(°)
19/16
Overhang(front/rear) (mm)
1500/2260
Wheel base (mm)
1800+3025+1400
Max speed(km/h)
90
Curb weight(kg)
13430
Loading Weight(kg)
18270
Engine
Model
MC07H.35-60/WP8.350E61A,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly
injection
(Steyr technology)
Make
SINOTRUK
Fuel type
Diesel
Power, max(kw/rpm)
257/2200
Emission
EURO V/IV
Fuel tanker capacity(L)
300
Transmission
Model
HW15710L,10 forward&2 reverse10
Brake system
Service brake
Dual circuit compressed air brake
Parking brake
spring energy, compressed air operating on rear wheels
(emergency brake)
Auxiliary brake
engine exhaust brake
Steering system
Model
ZF8098
Front axle
cast steel I-shaped front axle VGD71

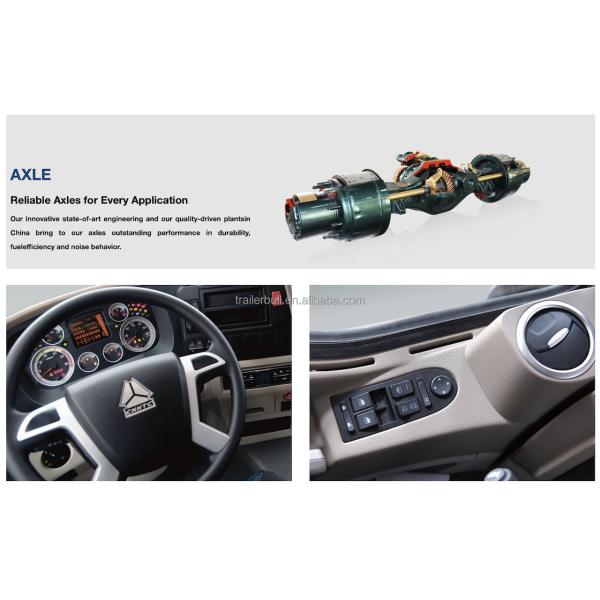

Rear axle
MCJ11 double reduction tandem axles with differential locks between wheels and axles, ratio: 5.29
Tire
12.00R20
Electrics
Battery
2X12V/165Ah
Alternator
28V-1500kw
Operating voltage
24V, negative grounded
Starter
7.5Kw/24V

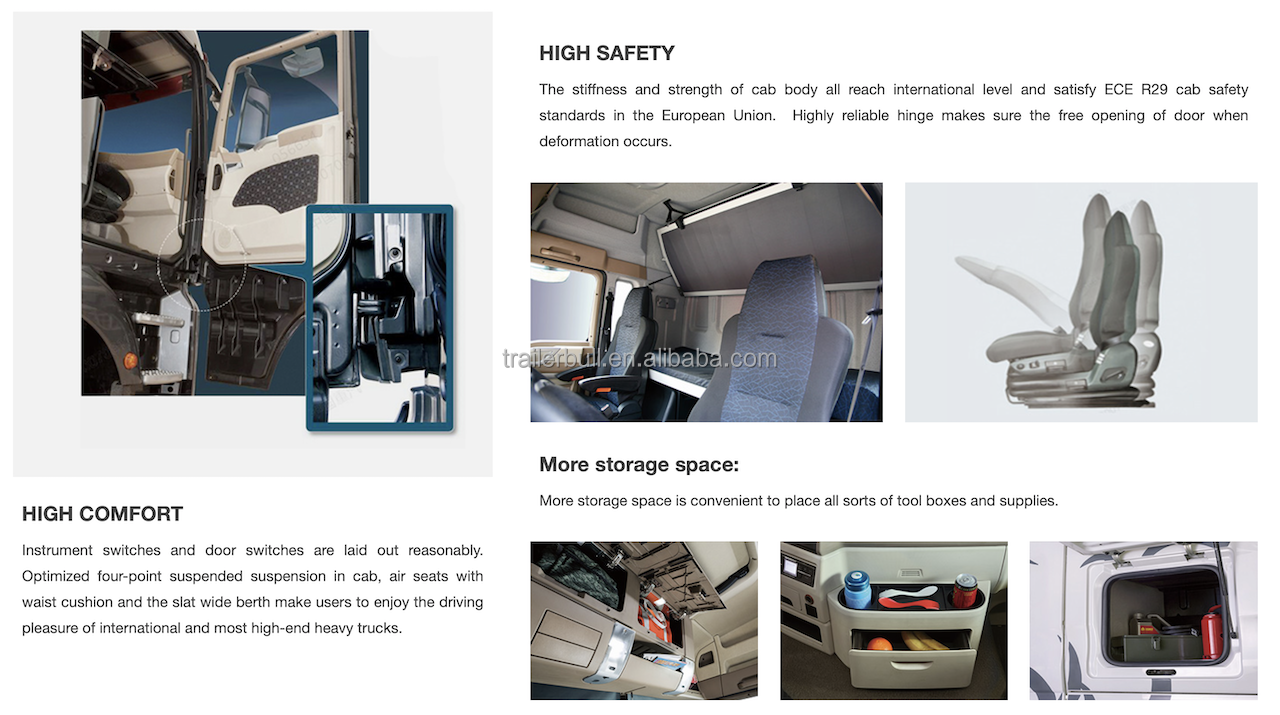

Cab
TX-M(525MM single bunk),TX-F(749MM single bunk), all-steel forward control,55ºhydraulically tiltable to the front,2- arm
windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable
driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap,
with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating
suspension and shock absorbers
Sinotruk HOWO TX Series 350HP Mobile Concrete Mixer Truck 10cbm For Heavy Duty Truck Chassis

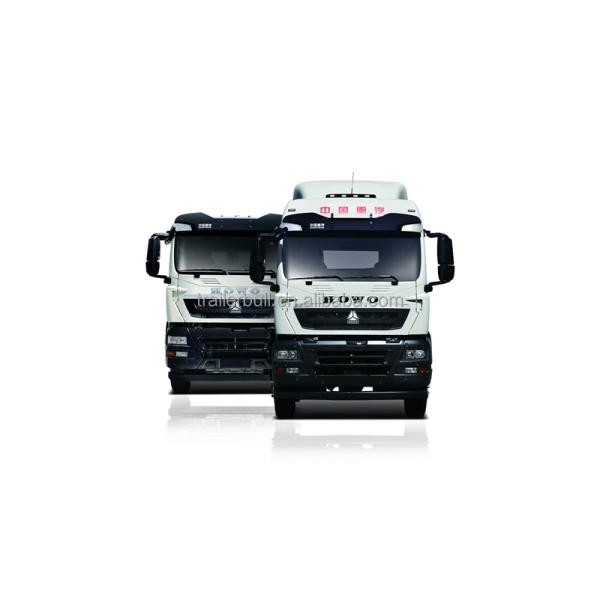

HERITAGE OF THE CLASSIC
100% OF NEW EXPERIENCE
SINOTRUK has fully upgraded the HOWO model based on its more than ten years of successful operation experience. Based on its
existing advantages and characteristics, as well as by combining, upgrading and reforming MAN-oriented technology and SINOTRUK
technology, the new HOWO product series TX series model will be put on the market in 2020.
Sinotruk HOWO TX Series 350HP Mobile Concrete Mixer Truck 10cbm For Heavy Duty Truck Chassis

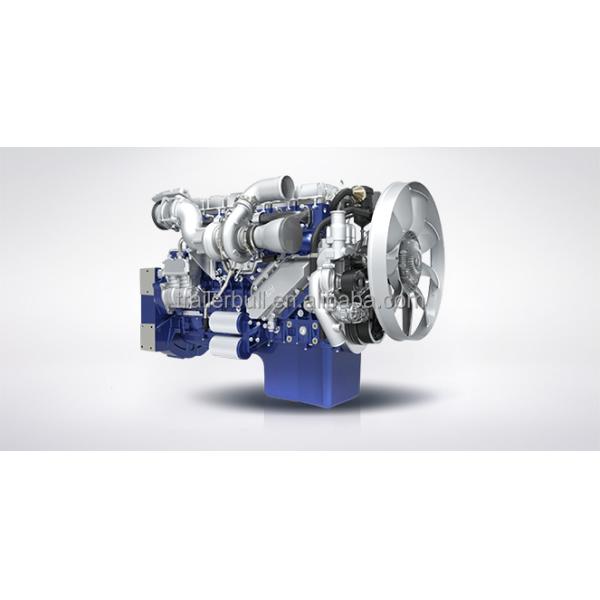

ENGINE

High reliability,Surging Power,Low Consumption
Great adaptability of fuel oil makes it suitable for Africa road condition, reduces maintenance and service fees with lower cost of using.
Sinotruk HOWO TX Series 350HP Mobile Concrete Mixer Truck 10cbm For Heavy Duty Truck Chassis

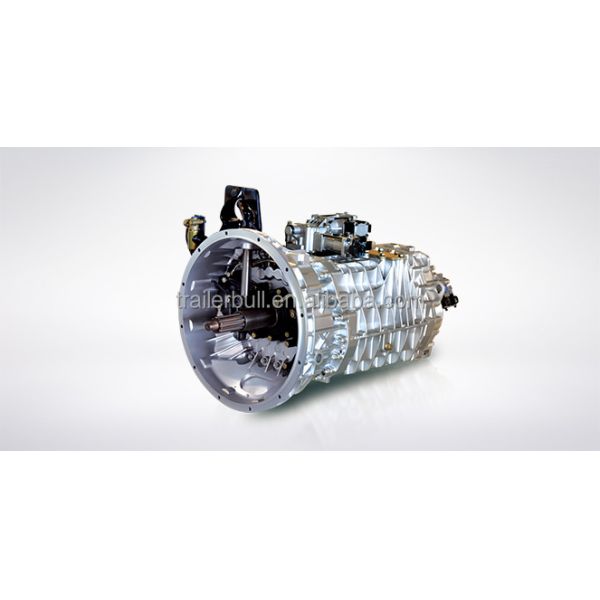

TRANSMISSION

Classic, mature and reliable
SINOTRUK HOWO series transmissions are adopted, offering high capacity and reliable quality.
MAIN SPECIFICATION OF 10 CBM MIXER
The material of the Agitator is the mix steel
BW300TP
Thickness of the tank body (mm)
End plate cover
8
Front Conical parts
5
Rear Conical parts
5
Cylindrical parts
5
Drum Bottom
5
over length (mm)
5250
Max. Diameter (mm)
2360
Mixing Tanker Volume (m3)
10
Draght angle(°)
11
Rotation speed (rpm)
1-12
Feeding speed (m3/min)
≥3
Discharging speed (m3/min)
≥2
Surplus rate (%)
≤0.5
Water tank volume (L)
450
reduction gears
TMG 51.2/PMP6.5
Hydraulic Pump
SUNNY 90 /PMH P90
Hydraulic Motor
SUNNY 90 /PMH P90
Sinotruk HOWO TX Series 350HP Mobile Concrete Mixer Truck 10cbm For Heavy Duty Truck Chassis
Sinotruk HOWO TX Series 350HP Mobile Concrete Mixer Truck 10cbm For Heavy Duty Truck Chassis
Packing & Delivery
BULK VESSEL , ROL-ROL
FAQ
1. who are we?
We are based in Shandong, China, start from 2019,sell to Domestic Market(45.00%),Africa(15.00%),Eastern Asia(5.00%),Oceania(5.00%),South America(5.00%),Southeast Asia(5.00%),Western Europe(5.00%),Mid East(4.00%),South Asia(2.00%),Southern Europe(2.00%),Northern Europe(2.00%),Central America(2.00%),Eastern Europe(2.00%),North America(1.00%). There are total about 201-300 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
RV TC Truck Camper,Refrigeration Box Body,Tippers,LPG LNG CNG Tanks,CIMC Flatbed Truck Semi Trailers

4. why should you buy from us not from other suppliers?
A Truck Trailer & Camper Company . Thanks for the trust of our partners all over the world , our factory get the 30 years steps in Supply Refrigeration Box Bodies, TC & RV Box Bodies, Container Chassis,Energy Portable Tanks & Other Special Vehicles.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,FCA,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Arabic,French
