Specifications
Place of Origin :
China
Brand Name :
GET INDUSTRY
Panel Special Designs :
FRP Square Tube Crossbeam Embeded
Panels Application :
Floor of Expedtiion Truck Campers ,RV box, Motorhome, caravan
Composite Panels Structure :
FRP-Plast Edge-Open Sandwich Panels
Sandwich Panels Materials :
FRP+PU/XPS+FRP
Compiste Process :
Pressure Machine Positive Vacuum /Negative Pressure Vacuum Table
Insulation Box. K.VALUE :
0.350 W/㎡ ℃
Capactity of the floor :
2 T /m at least
Installation adhesive :
Two component reactive adhesive Chemical Process
Shippment :
SKD/CKD Flat-packed
Working Life :
8-10 years per the working condition
Packaging Details :
CKD /SKD /CBU SHIPPED IN CONTAINER
Port :
QINGDAO,CHINA
Supply Ability :
5000 Square Meter/Square Meters per Month
MOQ :
10 square meters
Price :
$200.00 - $300.00/square meters
Description
Product Overview

What is a Sandwich Panel kits

A sandwich panel is any structure made of three layers: a low-density core (PUR XPS), and a thin skin-layer bonded to each side. Sandwich panels are used in applications where a combination of high structural rigidity and low weight is required. The structural functionality of a sandwich panel is similar to the classic I-beam, where two face sheets primarily resist the in-plane and lateral bending loads (similar to flanges of an I- beam), while the core material mainly resists the shear loads (similar to the web of an I-beam). The idea is to use a light/soft but thick layer for the core and strong but thin layers for face sheets. This results in increasing the overall thickness of the panel, which often improves the structural attributes, like bending stiffness, and maintain or even reduce the weight. Sandwich panels are an example of a sandwich structured composite: the strength and lightness of this technology makes it popular and widespread. Its versatility means that the panels have many applications and come in many forms: the core and skin materials can vary widely and the core may be a PU,XPS ,honeycomb or a solid filling Plywood. Enclosed panels are termed cassettes.
Special Design
FRP PU/XPS FRP Sandwich Panels for Expedition Truck Camper Embedded FRP Tube Crossbeam

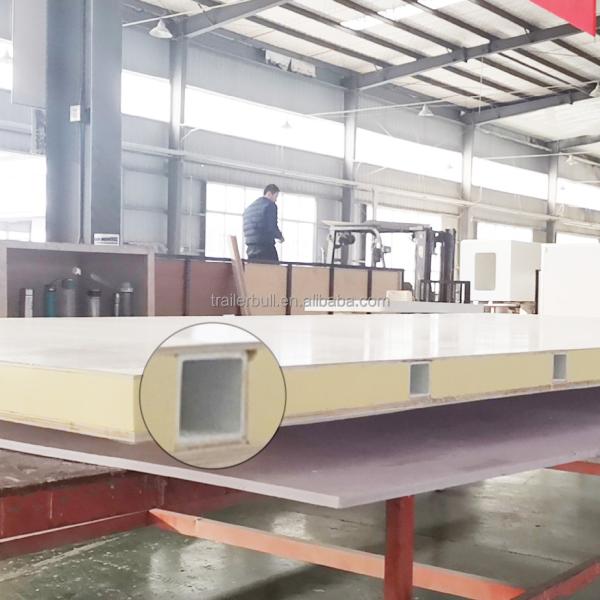

Pre-Embeded Cross Beam
FRP Square Tube or Timber Cross Beam pre-Embeded for heavy capacity request. 2T~4T /sqm
FEATURES AT A GLANCE
1. Light net Weight : 50% lighter than Metal
2. Better insulation: K value < 0.35 W/㎡ ℃
3. Machinical Continous FRP , High Gloss and Best Surface Views.
4. Different FRP Panel for different Function walls.
5. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
6. Easy assembly and repair at site ,3 work 1.5 hours for one box.

FRP PU/XPS FRP Sandwich Panels for Expedition Truck Camper Embedded FRP Tube Crossbeam
FRP PU/XPS FRP Sandwich Panels for Expedition Truck Camper Embedded FRP Tube Crossbeam

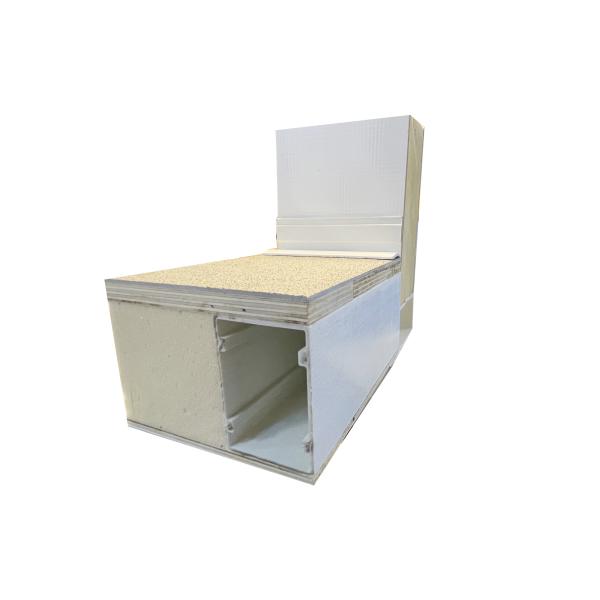

FRP Edge-Open Sandwich elevation
FRP PU/XPS FRP Sandwich Panels for Expedition Truck Camper Embedded FRP Tube Crossbeam
Installtion Extrusion elevation
FRP PU/XPS FRP Sandwich Panels for Expedition Truck Camper Embedded FRP Tube Crossbeam
Amount Box elevation
Main Parameters
Cross Beam Pre-Embedded Floor FRP-Plast Sandwich Panel Kits
Strong FRP Sandwich Panels
with FRP Square Tube Cross Beam Embeded for Heavy Capacity Refrigerated Trucks and Expedition RV Campers
Model
GET.6RVB.BS.FLOOR
1. Instruction of the FRP-PLAST SANDWICH Panels
FRP-PLAST Sandwich Panels is an insulation and freezing box set with high consisting prefabricated elements made by high-quality Fiber Glass materials from German LAMILUX and Best Glue from German KOMMERLING, And the PU foam adopt from the Germany brand PUREN, Assembled with high-strength fiber glass Profile for fast and easy box installation.
2. General Of the FRP-PLAST SANDWICH Panels
Max. Length of the Panel Kits
14750mm
Max Wideth of the panel Kits
3200mm
Thickness of the Panel Kits
30,50,,83.5,105,mm135mm
Special Design Pre-Embeded Cross Beam
FRP Square Tube or Timber Cross Beam pre-Embeded for heavy capacity request. 2T~4T /sqm
Tensile strength
>180MPa
Flexural strength
>220MPa
Barcol hardness
24.6MPa
3. Super Structure of the FRP-PLAST SANDWICH Panels
FRP- PLAST self Supporting Struture , without any Metal .Side Edge Open Structure, Embedded FRP Suqare Tube as the strengthen bone, and every layer can be choosed for different usagae of the walls.
Without metal carrier elements = without direct heat conductivity
FRP Embeded Tube = Same MAterial
Different FRP skin for specail Demands of Truck bodies like Medicines etc.
Opened Edge can easy change the design of the box for doors and holes,especial for Caravan box and Truck Camper.
STANDARD WALL PANEL
FLOOR PANEL
Length 0-14750mm
Width 0-2600mm
Thickness 27-135mm"
Length 0-14750mm
Width 0-2600mm
Thickness 27-135mm
Forklift work Avaliable
Application
1. Insulated & refrigerated truck body side and roof wall.
2. RV and Expedition side and Roof Wall.
3. Mobile Cold Room Side Walls
Application
1. Insulated & refrigerated truck body Floor.
2. RV and truck Camper Floor Wall.
3. Mobile Cold Room Floor Wall
4.Description of material
FRP can let the body get a good insulation function and light dead weight, we also Using an adhesive joining process with LAMILUX to employ the fiberglass sheets to construct boxes with completely vapour diffusion-tight surfaces to get better insulation and balance temperature inside.
Core Thermal Polyrethane Foam
All panels, Floor & Roof of the box will be insulated with POLYURETHANE foam (PU) of density 40KG~45/M3, which can carry the Thermal Conductivity value 0.3kcal/M3.
KOMMERLING Two component reaction adhesive
Model
Values
LAMILUX
High Impact
LAMILUX
Woven Fabric Gelcoat
LAMILUX
High Gloss 4000
Thickness
1.4 mm
2.0 mm
1.7mm
Weight
2250 g/㎡
2650 g/m2
2340 g/㎡
Glass content
48-52 %
27-29 %
20-24%
Flexural strength
305 N/m㎡
170N/mm
100 N/m㎡
Flexural emodulus
8550 N/m㎡
11700 N/mm2
4000N/m㎡
Tensile strength
240 N/m㎡
80 N/mm
55 N/m㎡
Tensile emodulus
14700 N/m㎡
8100 /mm2
6000 N/m㎡
Impact strength
82 KJ/㎡
Advantage of LAMILUX panel
Benefit
1. Computer manufacturing process VS hand layup
High impact resistance
2. Fiber reinforce plastic VS metal panel
Better heat insulation
3. Constant gloss level
Good surface aspect
4. Very consistent gelcoat-thicknesses
No cracks
5. FRP-sheets lie flat
No curl
6. Less translucency for sunlight and also UV-light
No color variation
7. Anti slip-PES floor
Abrasion resistance
8. TUV &ATP certificate
High quality and Food safety
FRP PU/XPS FRP Sandwich Panels for Expedition Truck Camper Embedded FRP Tube Crossbeam
FRP PU/XPS FRP Sandwich Panels for Expedition Truck Camper Embedded FRP Tube Crossbeam
FRP PU/XPS FRP Sandwich Panels for Expedition Truck Camper Embedded FRP Tube Crossbeam
5. The main characters
Advantages
1. Completely vapor diffusion-tight surfaces of FRP to get better insulation and balance temperature inside.
2. Non-Pollution and Special Function Box. German Original FRP of Lamilux can satisfied not only the best Mirror surface, but also can meet all the special requirements with their TUV certified AntiBac Panel, Anti-UV Panel, HACCP certified Panel. High Impact panel, Flex Gewebe Panel etc.
3. Best Materials to keep good insulation function and light for more capacity. The best Structure Material of FRP and Glue can let us cut the other embedded wood beams to reduce more than 20% of weight than the normal Sandwich panels.
4. Quick installation with Special Designed Fiber Glass Profile. With our patented FRP Profiles, we can assembly one box in one hours with 3 workers to save 80% of Labor cost.
5. Rapid order processing for all Size and shaped box (standard solutions can be delivered at short notice). With the Biggest Carve Machine in China, we can supply all different size and shapes Panels to fit for all the chassis of the world.
6. It is suitable for all vehicle brands and models.
7. Easy Repair with our 7*24 hours Service support.
Fault:
1) Open Edge let the Foam Oxidized a little quick than our FRP-Pie Panels
2) Side Edge Layer have the risk of Tearing.
3) Open Edge structure need super Composite Glues and Materials cause cost high
1) The FRP chemical with Glues cannot guaranty the Smoothness of the Skin, so it need paint after assembled.
2) More FRP Chemical Harden inside as Bone of the panel, so it is 10% Heavier than the Composite Sandwich Panels
3) Too Strong, Long life than the Chassis, you may Change the Chassis during its life.
BOX INSTALLATION PROCESS
Sandwich panel box is a pre-installed trailer box body which can be mounted directly onto the chassis of the vehicle using its lower fixed frame.

It is important that all specifications and guidelines from the chassis manufacturer be observed during assembly.

Requirements for installation:
Crane or alternative lifting equipment
Standard assembly tools, i.e. pneumatic screwdriver, wrenches, etc.

FERROPLAST KIT:
Prepare the chassis
Mount the partial frame and the floor plate on the chassis
Mount the side, front and rear walls and the roof
Install the required options
Finishing

FERROPLAST BOX:
Prepare the chassis
Mount the BOX tog with sub frames on the chassis
Install the required options
Finishing
Truck Body Application
FRP PU/XPS FRP Sandwich Panels for Expedition Truck Camper Embedded FRP Tube Crossbeam

Insulated & Refrigerated Truckbody


FRP PU/XPS FRP Sandwich Panels for Expedition Truck Camper Embedded FRP Tube Crossbeam

Customized Truck Camper


FRP PU/XPS FRP Sandwich Panels for Expedition Truck Camper Embedded FRP Tube Crossbeam

Ice Cream Truckbody


FRP PU/XPS FRP Sandwich Panels for Expedition Truck Camper Embedded FRP Tube Crossbeam

Partitioned Distribution TruckBody


FRP PU/XPS FRP Sandwich Panels for Expedition Truck Camper Embedded FRP Tube Crossbeam

Mobile Car Trailer Cold Room


FRP PU/XPS FRP Sandwich Panels for Expedition Truck Camper Embedded FRP Tube Crossbeam

Refrigeration Container


FRP PU/XPS FRP Sandwich Panels for Expedition Truck Camper Embedded FRP Tube Crossbeam

Communication Truck & Trailer


FRP PU/XPS FRP Sandwich Panels for Expedition Truck Camper Embedded FRP Tube Crossbeam

Mobile Army Shelter


FRP PU/XPS FRP Sandwich Panels for Expedition Truck Camper Embedded FRP Tube Crossbeam

Baby Chicks Delivery Truckbody


Production Workshop
FRP PU/XPS FRP Sandwich Panels for Expedition Truck Camper Embedded FRP Tube Crossbeam
FRP PU/XPS FRP Sandwich Panels for Expedition Truck Camper Embedded FRP Tube Crossbeam
FRP PU/XPS FRP Sandwich Panels for Expedition Truck Camper Embedded FRP Tube Crossbeam
FRP PU/XPS FRP Sandwich Panels for Expedition Truck Camper Embedded FRP Tube Crossbeam
FRP PU/XPS FRP Sandwich Panels for Expedition Truck Camper Embedded FRP Tube Crossbeam
FRP PU/XPS FRP Sandwich Panels for Expedition Truck Camper Embedded FRP Tube Crossbeam
FRP PU/XPS FRP Sandwich Panels for Expedition Truck Camper Embedded FRP Tube Crossbeam
FRP PU/XPS FRP Sandwich Panels for Expedition Truck Camper Embedded FRP Tube Crossbeam
FRP PU/XPS FRP Sandwich Panels for Expedition Truck Camper Embedded FRP Tube Crossbeam
FAQ

What is refrigerated truck box body?

Refrigerated truck, sometimes we call it reefer truck box body. Sometimes we call it freezer truck box body. Sometimes chiller truck box body. Sometimes cold room truck box body. All in all, We calls it refrigerated truck.Reefer truck box body is a kind of box which can load the cargoes which need to keep cold and fresh. Such as icecream, chill chicken, chill fish, freezer meat, sometimes vegetables and so on.

Our refrigerated truck box body is the Sandwich structure. External FRP material+PU core+Internal FRP. Normally, the thickness of FRP is 2mm. It also can be customized. As the PU core, normally, the density is more than 40kg/m. And the thickness is changeable by customers’ request and designing request.

The parts of FRP reefer truck box body is adopted the highest configuration. They are 304 stainless steel parts for door lock and door frame. Aluminum profile for connecting all the panels. The importing rubbers make the door be sealing. So the whole reefer truck box body is all-closed without any gap.

What’s the material of your refrigerated truck body?

We can produce FRP(Fiberglass Reinforced Plastic), Color Steel Sheet and Stainless Steel Material for the refrigerated truck body.The Core Material can be PU,XPS.

If want the price, what should offer us the information?

You need offer us the material, size(length, width, height and thickness of the panel) and quantity of the truck body as the
basic information.

What is the CKD and CBU means ?

CKD means completely knocked down. That means offer all the parts of the truck body(Semi-finished products), you need assemble the box first, then amount to your truck chassis. Though you have to do some works, but It can save much shipping charges.
CBU means completely Building Unit. That is, we offer you the whole truck body, you just install it your truck directly.

How long life of your truck body?

It depends how will use it. Normally, the life is about 15~20 years
