TDA7297 Integrated Circuit Chip new & original 15+15W DUAL BRIDGE AMPLIFIER
TDA7297 Integrated Circuit Chip new & original 15+15W DUAL BRIDGE AMPLIFIER
Specifications
Brand Name :
Anterwell
Model Number :
TDA7297
Certification :
new & original
Place of Origin :
original factory
MOQ :
10pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
7200pcs
Delivery Time :
1 day
Packaging Details :
Please contact me for details
Supply Range :
6.5 to 18 V
Total Quiescent Current :
50 mA
Output Offset Voltage :
120 mV (Max)
Output Power :
15 W
Supply Voltage Rejection :
56 dB
Thermal Threshold :
150 °C
Description

TDA7297

15+15W DUAL BRIDGE AMPLIFIER

  • WIDE SUPPLY VOLTAGE RANGE (6V -18V)
  • MINIMUM EXTERNAL COMPONENTS
    • – NO SWR CAPACITOR
    • – NO BOOTSTRAP
    • – NO BOUCHEROT CELLS
    • – INTERNALLY FIXED GAIN
  • STAND-BY & MUTE FUNCTIONS
  • SHORT CIRCUIT PROTECTION
  • THERMAL OVERLOAD PROTECTION

DESCRIPTION

The TDA7297 is a dual bridge amplifier specially designed for TV and Portable Radio applications.

TECHNOLOGY BI20II

TDA7297 Integrated Circuit Chip new & original 15+15W DUAL BRIDGE AMPLIFIER

ABSOLUTE MAXIMUM RATINGS

Symbol Parameter Value Unit
VS Supply Voltage 20 V
IO Output Peak Current (internally limited) 2 A
Ptot Total Power Dissipation (Tcase = 70°C) 33 W
Top Operating Temperature 0 to 70 °C
Tstg, Tj Storage and Junction Temperature -40 to +150 °C

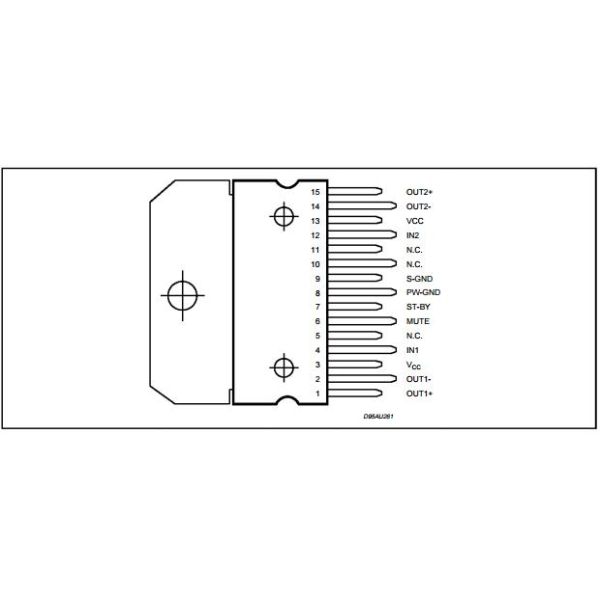

PIN CONNECTION (Top view)

TDA7297 Integrated Circuit Chip new & original 15+15W DUAL BRIDGE AMPLIFIER

BLOCK AND APPLICATION DIAGRAM

TDA7297 Integrated Circuit Chip new & original 15+15W DUAL BRIDGE AMPLIFIER

Stock Offer (Hot Sell)

Part NO. Q'ty MFG D/C Package
MPX2200DP 6062 FREESCALE 12+ SIP
MAX3430ESA+T 6060 MAXIM 14+ SOP
MC68000P8 6050 MOT 13+ DIP
MT8981DP 6048 MITEL 10+ PLCC
MC44603AP 6025 ON 01+ DIP
MC9S08QG8CPBE 6020 FREESCALE 13+ DIP
LT3694EUFD#TRPBF 6010 LINEAR 10+ QFN
ACF451832-333-TD01 6008 TDK 15+ inductor
CA324E 6003 INTERSIL 15+ DIP-14
MLX90217LUA 6002 MELEXIS 15+ TO-92
MAX1472AKA-T 6002 MAXIM 15+ SOT
LT1009CZ 6001 LINEAR 15+ TO-92
ZXSC400E6TA 6000 DIODES 14+ SOT23-6
ZXMS6004FFTA 6000 DIODES 14+ SOT23
ZTX849 6000 ZETEX 15+ TO-92
ZHCS500TA 6000 ZETEX 15+ SOT23
XPT2046 6000 XPT 15+ TSSOP-16
XL1530E1 6000 XLSEMI 10+ SOP-8
MC33298P 6000 ON 14+ DIP
LPV321M5 6000 NSC 15+ SOT-23-5
LA1S109-43LF 6000 LB 16+ RJ-45
