TLE6232GP Integrated Circuit Chip Smart Six Channel Low-Side Switch
TLE6232GP Integrated Circuit Chip Smart Six Channel Low-Side Switch
Specifications
Model Number :
TLE6232GP
Certification :
Original Factory Pack
Place of Origin :
Philippines
MOQ :
20
Price :
Negotiate
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
20000
Delivery Time :
1
Packaging Details :
please contact me for details
VS :
4.5 – 5.5 V
VDS(AZ)typ. :
53 V
RON1-4 :
0.25 W
RON 5,6 :
0.45 W
ID(NOM) :
2 A
Description

Smart Six Channel Low-Side Switch

TLE6232GP Integrated Circuit Chip Smart Six Channel Low-Side SwitchFeatures

· Short Circuit Protection up to 24 V

· Over-temperature Protection

· Over-voltage Protection

· 16 bit Serial Data Input and Diagnostic Output (2 bit/ch. acc. SPI protocol)

· Direct Parallel Control of all six Channels for PWM Applications

· General Fault Flag

· Low Quiescent Current

· Compatible with 3V Micro Controllers

· Electrostatic Discharge (ESD) Protection

· Parallel Inputs High or Low Active Programmable

· Green Product (RoHS compliant)

· AEC qualified

Application

· µC Compatible Power Switch for 12 V and 24V Applications

· Switch for Automotive and Industrial System

· Solenoids, Relays and Resistive Loads

· Robotic Controls

General description

Six Channel Low-Side Switch in Smart Power Technology (SPT) with a Serial Peripheral Interface (SPI) and six open drain DMOS output stages. The TLE 6232 GP is protected by embedded protection functions and designed for automotive and industrial applications. The output stages are controlled via an SPI Interface. Additionally all six channels can be controlled direct in parallel for PWM applications. Therefore the TLE 6232 GP is particularly suitable for engine management and powertrain systems.

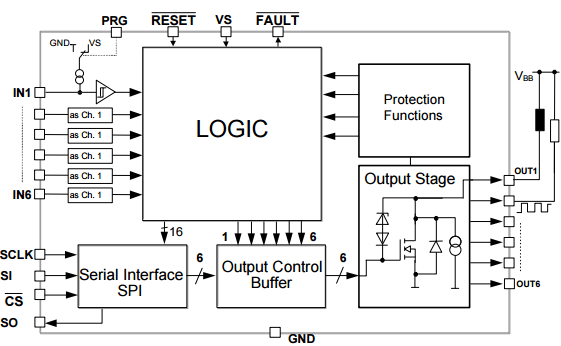

Block Diagram

TLE6232GP Integrated Circuit Chip Smart Six Channel Low-Side Switch
