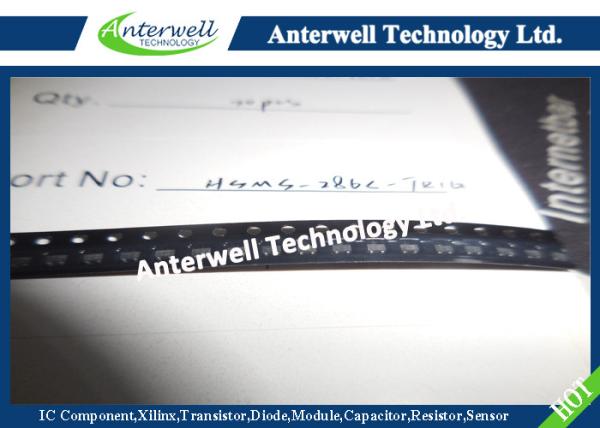

HSMS-286C- TR1G Rectifier Diode Surface Mount Microwave Schottky Detector Diodes
HSMS-286C- TR1G Rectifier Diode Surface Mount Microwave Schottky Detector Diodes
Specifications
Brand Name :
AVAGO
Model Number :
HSMS-286C- TR1G
Certification :
Original Factory Pack
Place of Origin :
Original
MOQ :
20pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal, Western Union
Supply Ability :
5200PCS
Delivery Time :
1 Day
Packaging Details :
please contact me for details
Peak Inverse Voltage :
4.0 V
Junction Temperature :
150 °C
Storage Temperature :
-65 to 150 °C
Operating Temperature :
65 to 150 °C
Description

Features

• Surface Mount SOT-23/SOT‑143 Packages HSMS-286C- TR1G Rectifier Diode Surface Mount Microwave Schottky Detector Diodes

• Miniature SOT-323 and SOT‑363 Packages

• High Detection Sensitivity:

up to 50 mV/µW at 915 MHz

up to 35 mV/µW at 2.45 GHz

up to 25 mV/µW at 5.80 GHz

• Low FIT (Failure in Time) Rate*

• Tape and Reel Options Available

• Unique Configurations in Surface Mount SOT-363 Package

– increase flexibility

– save board space

– reduce cost

• HSMS-286K Grounded Center Leads Provide up to 10 dB Higher Isolation

• Matched Diodes for Consistent Performance

• Better Thermal Conductivity for Higher Power Dissipation

• Lead-free

Description

Avago’s HSMS‑286x family of DC biased detector diodes have been designed and optimized for use from 915 MHz to 5.8 GHz. They are ideal for RF/ID and RF Tag applications as well as large signal detection, modulation, RF to DC conversion or voltage doubling.

Available in various package configurations, this family of detector diodes provides low cost solutions to a wide variety of design problems. Avago’s manufacturing techniques assure that when two or more diodes are mounted into a single surface mount package, they are taken from adjacent sites on the wafer, assuring the highest possible degree of match.

Absolute Maximum Ratings, TC = +25°C, Single Diode

Symbol Parameter Unit SOT-23/143 SOT-323/363
PIV Peak Inverse Voltage V 2.0 2.0
TJ Junction Temperature °C 150 150
TSTG Storage Temperature °C -65 to 150 -65 to 150
TOP Operating Temperature °C -65 to 150 -65 to 150
θjc Thermal Resistance[2] °C/W 500 150

HSMS-286C- TR1G Rectifier Diode Surface Mount Microwave Schottky Detector Diodes
