Triacs Silicon 3 Pin Transistor , bidirectional triode thyristor BTA16-800BW
Triacs Silicon 3 Pin Transistor , bidirectional triode thyristor BTA16-800BW
Specifications
Brand Name :
STMICROELECTRONICS
Model Number :
BTA16-800BW
Certification :
Original Factory Pack
Place of Origin :
Philippines
MOQ :
20
Price :
Negotiate
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
20000
Delivery Time :
1
Packaging Details :
please contact me for details
IT(RMS) :
16 A
VDRM/VRRM :
600, 700 and 800 V
IGT (Q1) :
10 to 50 mA
Peak gate current :
4 A
Average gate power dissipation :
1 W
Description

Triacs Silicon 3 Pin Transistor , bidirectional triode thyristor BTA16-800BW

MAIN FEATURES:

Triacs Silicon 3 Pin Transistor , bidirectional triode thyristor BTA16-800BW

Symbol Value Unit
IT(RMS) 16 A
VDRM/VRRM 600, 700 and 800 V
IGT (Q1) 10 to 50 mA

DESCRIPTION

Available either in through-hole or surface-mount packages, the BTA/BTB16 and T16 triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits... or for phase control operation in light dimmers, motor speed controllers, ... The snubberless versions (BTA/BTB...W and T16 series) are specially recommended for use on inductive loads, thanks to their high commutation performances. By using an internal ceramic pad, the BTA series provides voltage insulated tab (rated at 2500V RMS) complying with UL standards (File ref.: E81734).

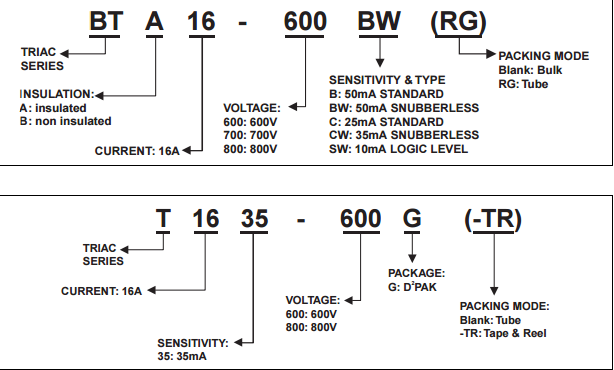

ORDERING INFORMATION

Triacs Silicon 3 Pin Transistor , bidirectional triode thyristor BTA16-800BW
