Silicon PNP Power Transistors ( Power Amplifier Applications ) 2SA1943
Silicon PNP Power Transistors ( Power Amplifier Applications ) 2SA1943
Specifications
Brand Name :
Anterwell
Model Number :
2SA1943
Certification :
new & original
Place of Origin :
original factory
MOQ :
20pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000pcs
Delivery Time :
1 day
Packaging Details :
Please contact me for details
Collector-base voltage :
-230 V
Collector-emitter voltage :
-230 V
Emitter-base voltage :
-5 V
Collector current :
-15 A
Base current :
-1.5 A
Collector power dissipation :
150 W
Junction temperature :
150℃
Storage temperature :
-55~150 ℃
Description

Silicon PNP Power Transistors 2SA1943

DESCRIPTION

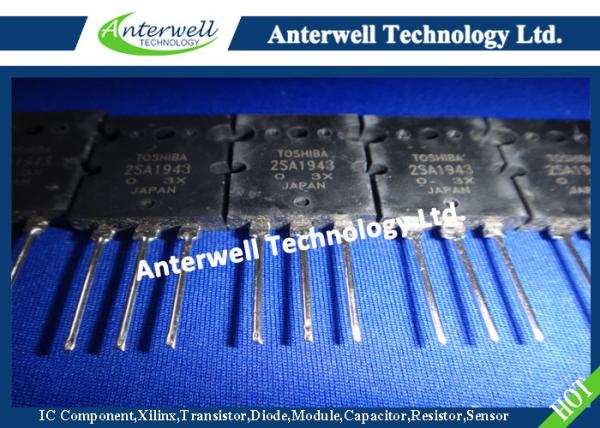

·With TO-3PL package Silicon PNP Power Transistors ( Power Amplifier Applications ) 2SA1943

·Complement to type 2SC5200

APPLICATIONS

·Power amplifier applications

·Recommended for 100W high fidelity

audio frequency amplifier output stage

PINNING

PIN DESCRIPTION
1 Emitter
2

Collector;connected to

mounting base
3 Base

CHARACTERISTICS Tj=25℃ unless otherwise specified

SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V(BR)CEO Collector-emitter breakdown voltage IC=-50mA ;IB=0 -230 V
VCEsat Collector-emitter saturation voltage IC=-8A IB=-0.8A -3.0 V
VBE Base-emitter voltage IC=-7A ; VCE=-5V -1.5 V
ICBO Collector cut-off current VCB=-230V; IE=0 -5 μA
IEBO Emitter cut-off current VEB=-5V; IC=0 -5 μA
hFE-1 DC current gain IC=-1A ; VCE=-5V 55 160
hFE-2 DC current gain IC=-7A ; VCE=-5V 35
fT Transition frequency IC=-1A ; VCE=-5V 30 MHz
COB Collector output capacitance f=1MHz;VCB=-10V 360 pF

‹ hFE-1 classifications

R O
55-110 80-160
