1500 Watt Peak Power Rectifier Diode Transient Voltage Suppressors 1.5ke68a
1500 Watt Peak Power Rectifier Diode Transient Voltage Suppressors 1.5ke68a
Specifications
Brand Name :
Anterwell
Model Number :
1.5KE68A
Certification :
new & original
Place of Origin :
original factory
MOQ :
20pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000pcs
Delivery Time :
1 day
Packaging Details :
Please contact me for details
VOLTAGE RANGE :
6.8 to 440 Volts
Peak Power :
1500 Watts
Steady State :
5.0 Watts
Surge Capability at 1ms :
1500 Watts
Weight :
1.20 grams
Operating and Storage Temperature Range :
-55 to +175 ℃
Description

1.5KE SERIES

1500 WATT PEAK POWER TRANSIENT VOLTAGE SUPPRESSORS

FEATURES

* 1500 Watts Surge Capability at 1ms

* High temperature soldering guaranteed:

260 ℃ / 10 seconds / .375"(9.5mm) lead length, 5lbs.(2.3kg) tension

* Typical IR less than 1 μA above 10V

* Fast response time: Typically less than 1.0ps from 0 volt to BV min.

* Low zener impedance

* Excellent clamping capability

MECHANICAL DATA

* Case: Molded plastic

* Epoxy: UL 94V-0 rate flame retardant

* Lead: Axial leads, solderable per MIL-STD-202, method 208 guranteed

* Polarity: Color band denotes cathode end

* Mounting position: Any

* Weight: 1.20 grams

VOLTAGE RANGE 6.8 to 440 Volts

1500 Watts Peak Power

5.0 Watts Steady State

1500 Watt Peak Power Rectifier Diode Transient Voltage Suppressors 1.5ke68a

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Rating 25 ℃ ambient temperature uniess otherwies specified.

Single phase half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

RATINGS SYMBOL VALUE UNITS
Peak Power Dissipation at TA=25 ℃, TP=1ms(NOTE 1) PPK Minimum 1500 Watts

Steady State Power Dissipation at TL=75 ℃

Lead Length .375"(9.5mm) (NOTE 2)

 PD 5.0 Watts

Peak Forward Surge Current at 8.3ms Single Half Sine-Wave

superimposed on rated load (JEDEC method) (NOTE 3)

 IFSM 200 Amps
Operating and Storage Temperature Range TJ, TSTG -55 to +175 ℃

NOTES:

1. Non-repetitive current pulse per Fig. 3 and derated above TA=25 ℃ per Fig. 2.

2. Mounted on Copper Pad area of 0.8" X 0.8" (20mm X 20mm) per Fig.5.

3. 8.3ms single half sine-wave, duty cycle = 4 pulses per minute maximum.

DEVICES FOR BIPOLAR APPLICATIONS

1. For Bidirectional use C or CA Suffix for types 1.5KE6.8 thru 1.5KE440.

2. Electrical characteristics apply in both directions.

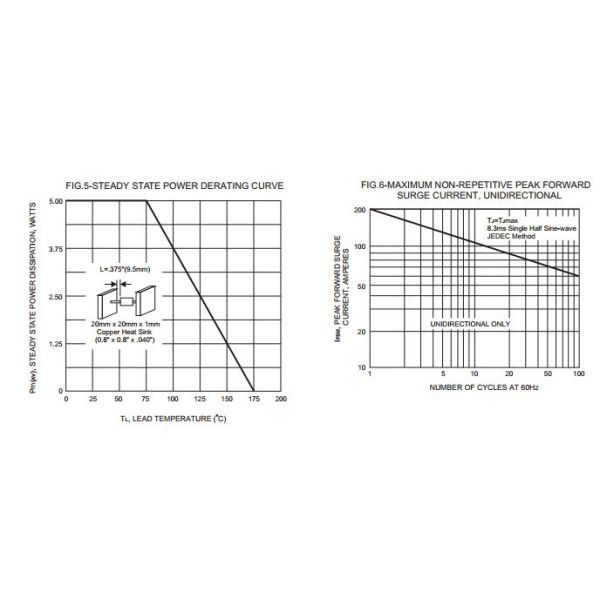

RATING AND CHARACTERISTIC CURVES (1.5KE SERIES)

1500 Watt Peak Power Rectifier Diode Transient Voltage Suppressors 1.5ke68a1500 Watt Peak Power Rectifier Diode Transient Voltage Suppressors 1.5ke68a
