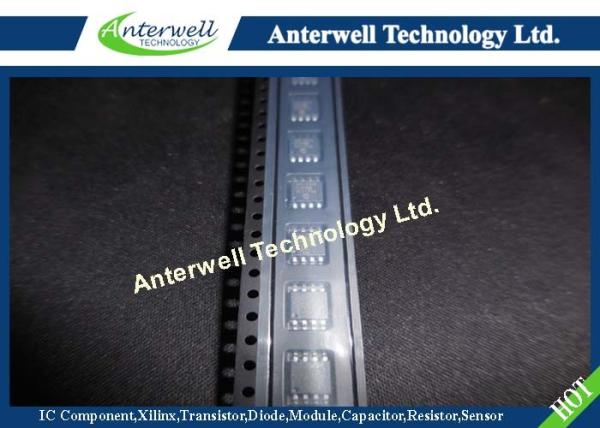

512K I2C™ CMOS Serial Integrated Circuit Ic EEPROM 24LC512-I/SM
512K I2C™ CMOS Serial Integrated Circuit Ic EEPROM 24LC512-I/SM
Specifications
Brand Name :
anterwell
Model Number :
24LC512-I/SM
Certification :
new & original
Place of Origin :
original factory
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
300pcs
Delivery Time :
1 day
Packaging Details :
please contact me for details
feature 1 :
Cascadable for up to Eight Devices
feature 2 :
Schmitt Trigger Inputs for Noise Suppression
feature 3 :
Output Slope Control to Eliminate Ground Bounce
feature 4 :
100 kHz and 400 kHz Clock Compatibility
feature 5 :
Page Write Time 5 ms max.
feature 6 :
Self-Timed Erase/Write Cycle
Description

Features: Block Diagram

512K I2C™ CMOS Serial Integrated Circuit Ic EEPROM 24LC512-I/SM

• Single Supply with Operation Down to 1.7V for

24AA512 and 24FC512 Devices, 2.5V for

24LC512 Devices

• Low-Power CMOS Technology:

- Active current 400 uA, typical

- Standby current 100 nA, typical

• 2-Wire Serial Interface, I2C™ Compatible

• Cascadable for up to Eight Devices

• Schmitt Trigger Inputs for Noise Suppression

• Output Slope Control to Eliminate Ground Bounce

• 100 kHz and 400 kHz Clock Compatibility

• Page Write Time 5 ms max.

• Self-Timed Erase/Write Cycle

• 128-Byte Page Write Buffer

• Hardware Write-Protect

• ESD Protection >4000V

• More than 1 Million Erase/Write Cycles Package Type

• Data Retention > 200 years

• Packages Include 8-lead PDIP, SOIJ and DFN 512K I2C™ CMOS Serial Integrated Circuit Ic EEPROM 24LC512-I/SM

• Pb-Free and RoHS Compliant

• Temperature Ranges:

- Industrial (I): -40°C to +85°C

- Automotive (E):-40°C to +125°C

Description:

The Microchip Technology Inc. 24AA512/24LC512/

24FC512 (24XX512*) is a 64K x 8 (512 Kbit) Serial

Electrically Erasable PROM, capable of operation

across a broad voltage range (1.7V to 5.5V). It has

been developed for advanced, low-power applications

such as personal communications and data acquisi-

tion. This device also has a page write capability of up

to 128 bytes of data. This device is capable of both

random and sequential reads up to the 512K boundary.

Functional address lines allow up to eight devices on

the same bus, for up to 4 Mbit address space. This

device is available in the standard 8-pin plastic DIP,

SOIJ and DFN packages.
