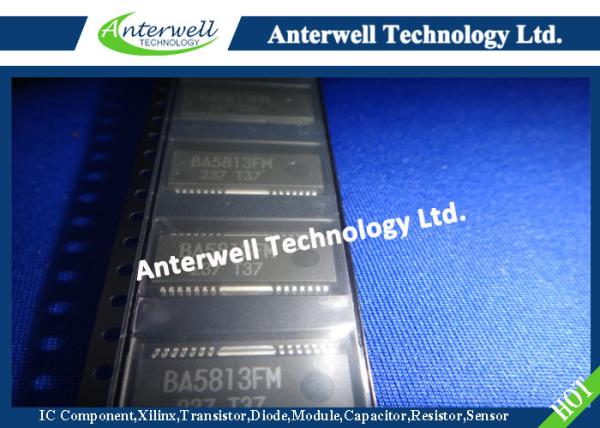

New & Original 5 Channel Drivers/Regulator for car Mini Disk BA5813FM
New & Original 5 Channel Drivers/Regulator for car Mini Disk BA5813FM
Specifications
Brand Name :
Anterwell
Model Number :
BA5813FM
Certification :
new & original
Place of Origin :
original factory
MOQ :
10pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
5200pcs
Delivery Time :
1 day
Packaging Details :
Please contact me details
Power supply voltage :
13.5 V (Limits)
Power dissipation :
2.2 W (Limits)
Operating temperature range :
–40 ~ +85 ˚C
Storage temperature range :
–55 ~ +150 ˚C
Wide dynamic range :
4.0V typical at PreVcc=8V, PowVcc=5V
package :
HSOP-M28
Description

5 Channel Drivers/Regulator for car Mini Disk

BA5813FM

Description

The BA5813FM is a 5-channel driver including a 4-channel BTL driver and a 1-channel reversible motor driver and regulator for car applications. Separating the Vcc into Pre and Pow can make the unit morepower efficient.

Features

1) Wide dynamic range (4.0V typical at PreVcc=8V, PowVcc=5V)

2) The loading output voltage is adjustable by the voltage control terminal.

3) Variable regulator built-in

4) Thermal shut down circuit built-in

5) Small surface mount power package HSOP-M28

Applications

MD

Dimension (Units : mm)

New & Original 5 Channel Drivers/Regulator for car Mini Disk BA5813FM

HSOP-M28

Absolute Maximum Ratings (Ta=25˚C)

Parameter Symbol Limits Unit
Power supply voltage PREVcc, POWVcc 13.5 V
Power dissipation Pd 2.2 W
Operating temperature range Topr –40 ~ +85 ˚C
Storage temperature range Tstg –55 ~ +150 ˚C

Derating : 17.6mV/ ˚C for operation above Ta=25˚C.

On less than 3% (percentage occupied by copper foil), 70mm 70mm, t=1.6mm, glass epoxy mounting.

Guaranteed operating ranges (Ta=25˚C)

Parameter Symbol Min. Typ. Max. Unit
Power supply voltage PREVcc 4.3 -- 13.2 V
POWVcc 4.3 -- PREVcc V

Application circuit

New & Original 5 Channel Drivers/Regulator for car Mini Disk BA5813FM
