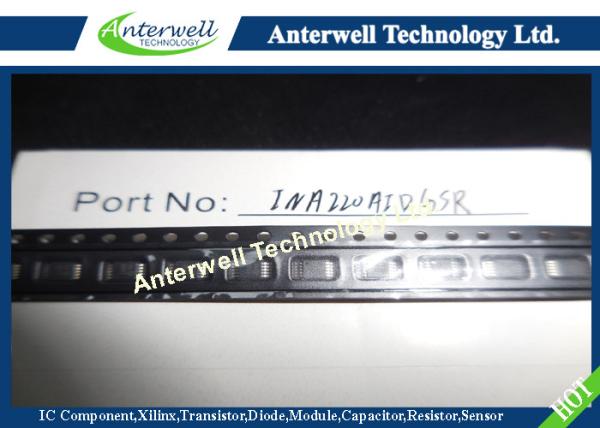

High Or Low Side Bi-Directional Current / Power Monitor With Two Wire Interface Ina220aidgsr
High Or Low Side Bi-Directional Current / Power Monitor With Two Wire Interface Ina220aidgsr
Specifications
Brand Name :
anterwell
Model Number :
INA220AIDGSR
Certification :
new & original
Place of Origin :
original factory
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
1000pcs
Delivery Time :
1 day
Packaging Details :
please contact me for details
Supply Voltage, Vs :
6V
Analog Inputs, VIN+, VIN– :
Differential (VIN+) – (VIN–) (2), Common-Mode
Differential (VIN+) – (VIN–) (2) :
–26 to +26V
Common-Mode :
–0.3 to +26V
SDA :
GND – 0.3 to +6V
SCL :
GND – 0.3 to VS + 0.3V
Description

FEATURES High Or Low Side Bi-Directional Current / Power Monitor With Two Wire Interface Ina220aidgsr

• HIGH- or LOW-SIDE SENSING

• SENSES BUS VOLTAGES FROM 0V TO +26V

• REPORTS CURRENT, VOLTAGE, AND POWER

• 16 PROGRAMMABLE ADDRESSES

• HIGH ACCURACY: 1% (Max) OVER

TEMPERATURE

• USER PROGRAMMABLE CALIBRATION

• FAST (3.4MHz) TWO-WIRE MODE

• MSOP-10 PACKAGE

APPLICATIONS

High Or Low Side Bi-Directional Current / Power Monitor With Two Wire Interface Ina220aidgsr

• SERVERS

• TELECOM EQUIPMENT

• NOTEBOOK COMPUTERS

• POWER MANAGEMENT

• BATTERY CHARGERS

• AUTOMOTIVE

• POWER SUPPLIES

• TEST EQUIPMENT

DESCRIPTION

The INA220 is a current shunt and power monitor with an Two-Wire interface. The INA220 monitors both shunt drop and supply voltage. A programmable calibration value, combined with an internal multiplier, enables direct readouts in

amperes. An additional multiplying register

calculates power in watts. The Two-Wire

interface features 16 programmable addresses.

The separate shunt input on the INA220

allows it to be used in systems with

low-side sensing.

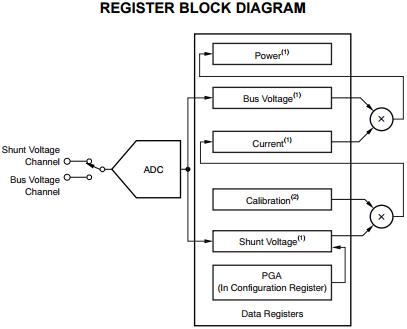

INA220 Register Block Diagram
