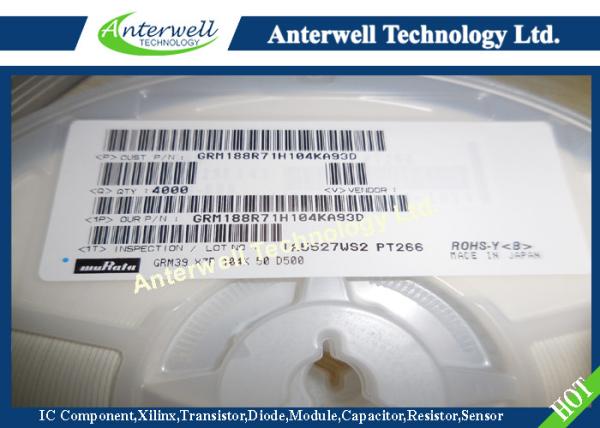

Enhancement Mode pHEMT Technology SMD Ferrite Bead ( E- pHEMT) GRM188R71H104KA93D
Enhancement Mode pHEMT Technology SMD Ferrite Bead ( E- pHEMT) GRM188R71H104KA93D
Specifications
Brand Name :
anterwell
Model Number :
GRM188R71H104KA93D
Certification :
new & original
Place of Origin :
original factory
MOQ :
4000pcs
Price :
negotiation
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
24000pcs
Delivery Time :
1 day
Packaging Details :
please contact me for details
Supply Voltage :
6 V
Supply Current :
130 mA
RF Input Power :
13 dBm
Storage Temperature Range :
--65 to +150 °C
Junction Temperature :
150 °C
Thermal Resistance, Junction to Case/Case Temperature 85°C, 5 Vdc, 84 mA, no RF applied :
59°C/W
Description

Enhancement Mode pHEMT Technology (E--pHEMT)

High Linearity Amplifier

The MMG15241H is a high dynamic range, low noise amplifier MMIC, housed

in a SOT --89 standard plastic package. It is ideal for Cellular, PCS, LTE,

TD--SCDMA, W--CDMA base station, wireless LAN and other systems in the

500 to 2800 MHz frequency range. With high OIP3 and low noise figure, it can

be utilized as a driver amplifier in the transmit chain and as a second stage LNA

in the receive chain.

Features

• Frequency: 500--2800 MHz

• Noise Figure: 1.6 dB @ 2140 MHz

• P1dB: 24 dBm @ 2140 MHz

• Small--Signal Gain: 15.9 dB @ 2140 MHz

• Third Order Output Intercept Point: 39.4 dBm @ 2140 MHz

• Single 5 Volt Supply

• Supply Current: 85 mA

• 50 Ohm Operation (some external matching required)

• Low Cost SOT--89 Surface Mount Package

• RoHS Compliant

• In Tape and Reel. T1 Suffix = 1000 Units, 12 mm Tape Width, 7 inch Reel.

Enhancement Mode pHEMT Technology SMD Ferrite Bead ( E- pHEMT) GRM188R71H104KA93D Functional Pin Description

Pin

Number

 Pin Function
1 RFin
2 Ground
3 RFout/DC Supply

Enhancement Mode pHEMT Technology SMD Ferrite Bead ( E- pHEMT) GRM188R71H104KA93D
