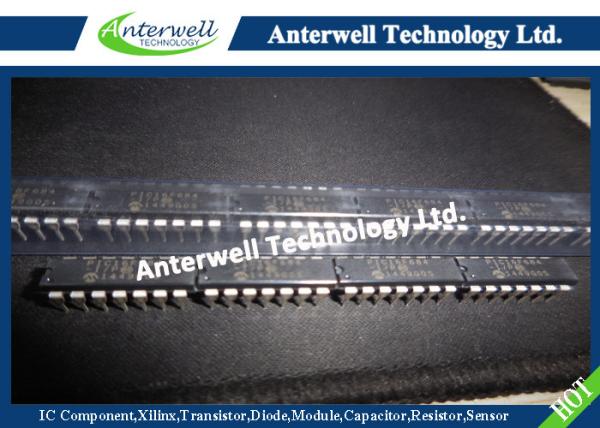

PIC16F684-I/P 4-Pin Flash-Based, 8-Bit CMOS Microcontrollers tv circuit board components
PIC16F684-I/P 4-Pin Flash-Based, 8-Bit CMOS Microcontrollers tv circuit board components
Specifications
Brand Name :
TSC
Model Number :
PIC16F684-I/P
Certification :
Original Factory Pack
Place of Origin :
Original
MOQ :
50pcs
Price :
negotiation
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
5200PCS
Delivery Time :
1 day
Packaging Details :
please contact me for details
Standby Current: :
1 nA @ 2.0V, typical
Operating Current: :
- 8.5 µA @ 32 kHz, 2.0V, typical - 100 µA @ 1 MHz, 2.0V, typical
• Watchdog Timer Current: :
- 1 µA @ 2.0V, typical
Only 35 instructions to learn: :
- All single-cycle instructions except branches
• Precision Internal Oscillator: :
Factory calibrated to ±1%
Description

PIC16F684-I/P

4-Pin Flash-Based, 8-Bit CMOS Microcontrollers tv circuit board components

DEVICE OVERVIEW

This document contains device specific information for the PIC16F684. Additional information may be found in the “PICmicro® Mid-Range MCU Family Reference Manual” (DS33023), which may be obtained from your local Microchip Sales Representative or downloaded from the Microchip web site.

The reference manual should be considered a complementary document to this data sheet and is highly recommended reading for a better understanding of the device architecture and operation of the peripheral modules.

The PIC16F684 is covered by this data sheet. It is available in 14-pin PDIP, SOIC and TSSOP packages. Figure 1-1 shows a block diagram of the PIC16F684 device. Table 1-1 shows the pinout description.

PIC16F684-I/P 4-Pin Flash-Based, 8-Bit CMOS Microcontrollers tv circuit board components

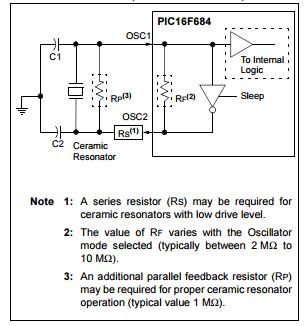

The LP, XT and HS modes support the use of quartz crystal resonators or ceramic resonators connected to the OSC1 and OSC2 pins (Figure 3-1). The mode selects a low, medium or high gain setting of the internal inverter-amplifier to support various resonator types and speed

LP Oscillator mode selects the lowest gain setting of the internal inverter-amplifier. LP mode current consumption is the least of the three modes. This mode is best suited to drive resonators with a low drive level specification, for example, tuning fork type crystals

XT Oscillator mode selects the intermediate gain setting of the internal inverter-amplifier. XT mode current consumption is the medium of the three modes. This mode is best suited to drive resonators with a medium drive level specification, for example, low-frequency/AT-cut quartz crystal resonators.

PIC16F684-I/P 4-Pin Flash-Based, 8-Bit CMOS Microcontrollers tv circuit board components
