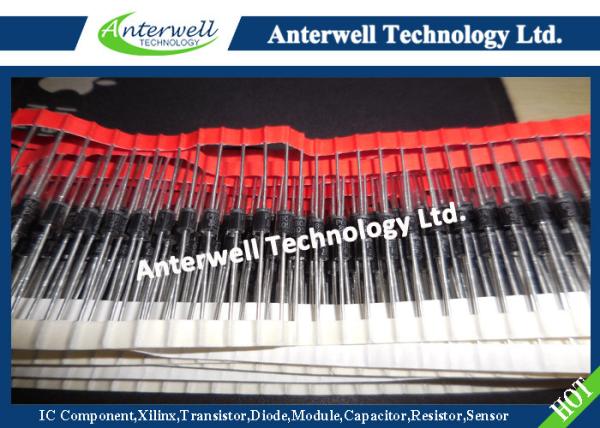

P6KE68A 600 Watts Transient Voltage Suppressor double diode model
P6KE68A 600 Watts Transient Voltage Suppressor double diode model
Specifications
Brand Name :
TSC
Model Number :
P6KE68A
Certification :
Original Factory Pack
Place of Origin :
Original
MOQ :
50pcs
Price :
negotiation
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
5200PCS
Delivery Time :
1 day
Packaging Details :
please contact me for details
PPK :
600 Watts
PD :
5 Watts
IFSM :
100 Amps
VF :
3.5 / 5.0 Volts
RθJL :
10 ℃/W
Description

P6KE68A

600 Watts Transient Voltage Suppressor double diode model

P6KE68A 600 Watts Transient Voltage Suppressor double diode modelFeatures

UL Recognized File # E-326243

Qualified as per AEC-Q101

Plastic package has Underwriters Laboratory Flammability Classification 94V-0

600 watts surge capability at 10 / 1000 us waveform

Excellent clamping capability

Low Dynamic impedance

Fast response time: Typically less than 1.0ps from 0 volt to VBR for unidirectional and 5.0ns for bidirectional

Typical IR less than 1uA above 10V

High temperature soldering guaranteed: 260℃ / 10 seconds / .375",(9.5mm) lead length / 5lbs., (2.3kg) tension

Green compound with suffix "G" on packing code & prefix "G" on datecode

Mechanical Data

Case: Molded plastic

Lead: Pure tin plated lead free, solderable per MIL-STD-202, Method 208

Polarity: Color band denotes cathode except bipolar

Weight: 0.42 gram

P6KE68A 600 Watts Transient Voltage Suppressor double diode model
