Specifications
Brand Name :
Anterwell
Model Number :
2SK2996
Certification :
new & original
Place of Origin :
original factory
MOQ :
20pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
7900pcs
Delivery Time :
1 day
Packaging Details :
Please contact me for details
Gate leakage current :
±10 μA
Gate−source breakdown voltage :
±30 V
Drain cut−off current :
100 μA
Drain−source breakdown voltage :
600 V
Gate threshold voltage :
2.0 to 4.0 V
Drain−source ON resistance :
0.74 Ω
Description

Stock Offer (Hot Sell)

Part No. Quantity Brand D/C Package
L6599D 6828 ST 13+ SOP-16
L7805ABP 12978 ST 11+ TO-220F
L7812CV 60000 STM 14+ TO-220
L78L33ACUTR 38000 ST 15+ SOT-89
L78M05CDT 98000 ST 16+ TO-252
L78M08ABDT-TR 14698 ST 16+ SOT-252
L78M12CDT 101000 ST 13+ TO-252
L78S05CV 11629 ST 16+ TO-220
L78S12CV 4245 ST 16+ TO-220
L7985ATR 13028 STM 15+ HSOP-8
L9407F 3184 ST 15+ ZIP
L9637D013TR 1520 ST 15+ SOP
L9826TR 3101 ST 12+ SOP-20
LA4440 3580 SANYO 13+ ZIP-14
LA78040 15692 SANYO 14+ TO-220
LA78041 14769 SANYO 15+ TO-220
LA78045 16047 SANYO 13+ TO-220-7
LAN83C185-JT 2746 SMSC 16+ QFP64
LAN8710A-EZK-TR 5987 SMSC 13+ QFN32
LAN8710AI-EZK-TR 15547 SMSC 14+ QFN
LAN8720A-CP-TR 4876 MICROCHIP 16+ QFN24
LAN9115-MT 7959 MICROCHIP 09+ QFP
LCDA05.TBT 7787 SEMTECH 11+ SOP-8
LCMXO640C-3TN100C 4897 LATTICE 12+ TQFP100
LCMZO640C-4TN100C 1113 LATTICE 16+ QFP100
LCP02-150B1RL 6643 ST 16+ SOP-8
LD1086D2M33TR 4316 ST 14+ TO-263
LD1086V33 6714 ST 08+ TO-220
LD1117ADT18TR 51000 ST 15+ TO-252
LD1117S18TR 101000 ST 11+ SOT-223

TOSHIBA Field Effect Transistor Silicon N Channel MOS Type

(π−MOSV) 2SK2996

DC−DC Converter, Relay Drive and Motor Drive Applications

Low drain−source ON resistance : RDS (ON) = 0.74 Ω (typ.)

High forward transfer admittance : |Yfs| = 6.8 S (typ.)

Low leakage current : IDSS = 100 μA (max) (VDS = 600 V)

Enhancement mode : Vth = 2.0~4.0 V (VDS = 10 V, ID = 1 mA)

Absolute Maximum Ratings (Ta = 25°C)

Characteristics Symbol Rating Unit
Drain−source voltage VDSS 600 V
Drain−gate voltage (RGS = 20 kΩ) VDGR 600 V
Gate−source voltage VGSS ±30 V
Drain current DC (Note 1) ID 10 A
Pulse (Note 1) IDP 30
Drain power dissipation (Tc = 25°C) PD 45 W
Single pulse avalanche energy (Note 2) EAS 252 mJ
Avalanche current IAR 10 A
Repetitive avalanche energy (Note 3) EAR 4.5 mJ
Channel temperature Tch 150 °C
Storage temperature range Tstg −55~150 °C

Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings. Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook (“Handling Precautions”/Derating Concept and Methods) and individual reliability data (i.e. reliability test report and estimated failure rate, etc).

2SK2996 3 Pin Transistor N Channel MOS FET NPN Silicon Transistor

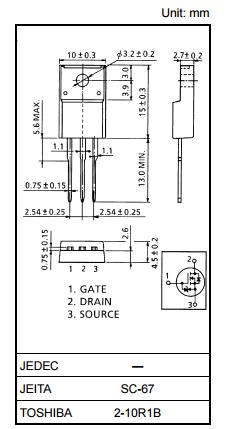

Weight: 1.9 g (typ.)
