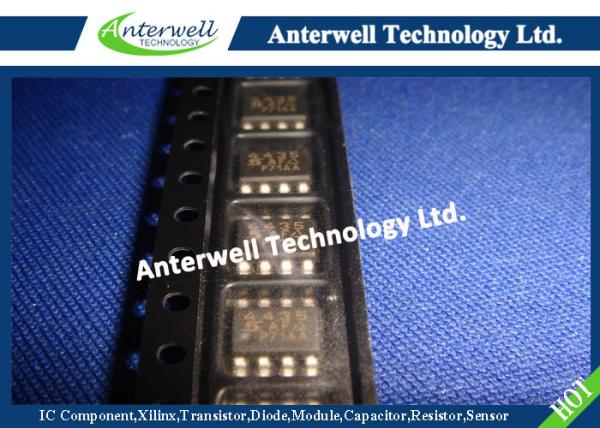

SI4435DY trench power mosfet Power Mosfet Transistor 30V P-Channel PowerTrench MOSFET
SI4435DY trench power mosfet Power Mosfet Transistor 30V P-Channel PowerTrench MOSFET
Specifications
Brand Name :
Anterwell
Model Number :
SI4435DY
Certification :
new & original
Place of Origin :
original factory
MOQ :
10pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
8600pcs
Delivery Time :
1 day
Packaging Details :
Please contact me for details
Drain-Source Voltage :
–30 V
Gate-Source Voltage :
±20 V
Drain Current – Continuous :
–8.8 A
Power Dissipation for Single Operation :
2.5 W
Operating and Storage Junction Temperature Range :
–55 to +175 °C
Thermal Resistance, Junction-to-Case :
25 °C/W
Description

SI4435DY

30V P-Channel PowerTrench MOSFET

General Description

This P-Channel MOSFET is a rugged gate version of Fairchild Semiconductor’s advanced PowerTrench process. It has been optimized for power management applications requiring a wide range of gave drive voltage ratings (4.5V – 25V).

Applications

· Power management

· Load switch

· Battery protection

Features

· –8.8 A, –30 V RDS(ON) = 20 mW @ VGS = –10 V

RDS(ON) = 35 mW @ VGS = –4.5 V

· Low gate charge (17nC typical)

· Fast switching speed

· High performance trench technology for extremely low RDS(ON)

· High power and current handling capability

Absolute Maximum Ratings TA=25℃ unless otherwise noted

Symbol Parameter Ratings Units
VDSS Drain-Source Voltage -30 V
VGSS Gate-Source Voltage ±20 V
ID

Drain Current – Continuous (Note 1a)

– Pulsed

 –8.8 A
–50
PD

Power Dissipation for Single Operation (Note 1a)

(Note 1b)

(Note 1c)

 2.5

W
1.2
1
TJ, TSTG Operating and Storage Junction Temperature Range –55 to +175 °C

Thermal Characteristics

RθJA Thermal Resistance, Junction-to-Ambient (Note 1a) 50 °C/W
RθJA Thermal Resistance, Junction-to-Ambient (Note 1c) 125 °C/W
RθJC Thermal Resistance, Junction-to-Case (Note 1) 25 °C/W

Package Marking and Ordering Information

Device Marking Device Reel Size Tape width Quantity
SI4435DY SI4435DY 13’’ 12mm 2500 units
