79L05 transistor integrated circuit Integrated Circuit Chip Negative-Voltage Regulators
79L05 transistor integrated circuit Integrated Circuit Chip Negative-Voltage Regulators
Specifications
Brand Name :
Anterwell
Model Number :
79L05
Certification :
new & original
Place of Origin :
original factory
MOQ :
10pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
8600pcs
Delivery Time :
1 day
Packaging Details :
Please contact me for details
Ripple rejection :
49 dB
Output noise voltage :
40 µV
Dropout voltage :
1.7 V
Input voltage: 79L05 :
-30 V
Lead temperature 1.6 mm (1/16 inch) from case for 10 seconds :
260°C
Storage temperature range :
–65°C to 150°C
Description

Negative-Voltage Regulators

  • 3-Terminal Regulators
  • Output Current Up to 100 mA
  • No External Components Required
  • Internal Thermal-Overload Protection
  • Internal Short-Circuit Current Limiting
  • Direct Replacement for Motorola MC79L00 Series

79L05 transistor integrated circuit Integrated Circuit Chip Negative-Voltage Regulators

description

This series of fixed negative-voltage integrated-circuit voltage regulators is designed for a wide range of applications. These include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used to control series pass elements to make high-current voltage-regulator circuits. One of these regulators can deliver up to 100 mA of output current. The internal current-limiting and thermal-shutdown features make them essentially immune to overload. When used as a replacement for a zener-diode and resistor combination, these devices can provide effective improvement in output impedance of two orders of magnitude, with lower bias current.

absolute maximum ratings over operating free-air temperature range

(unless otherwise noted)†

Input voltage: 79L05 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -30 V

Operating free-air, case, or virtual junction temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150°C

Lead temperature 1.6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . 260°C

Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –65°C to 150°C

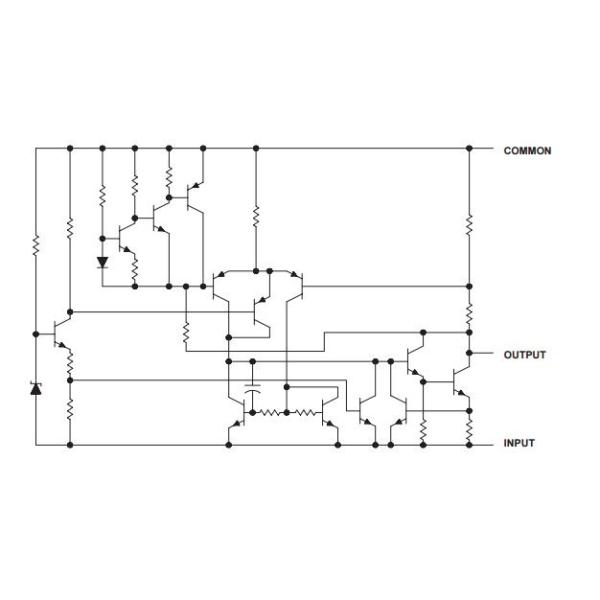

equivalent schematic

79L05 transistor integrated circuit Integrated Circuit Chip Negative-Voltage Regulators
