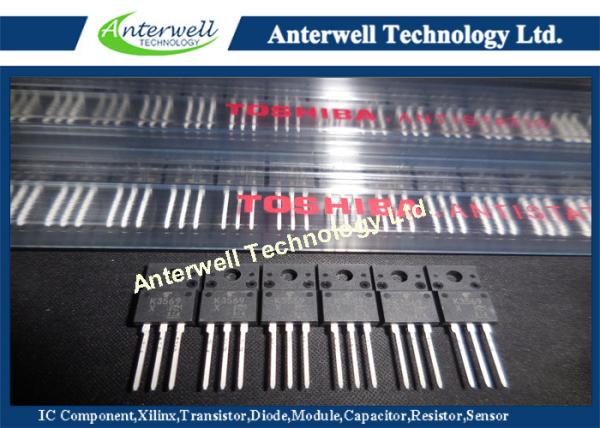

2SK3569 TO-220 Transistor Integrated circuit Chip IC Electronics China Golden IC Supplier
2SK3569 TO-220 Transistor Integrated circuit Chip IC Electronics China Golden IC Supplier
Specifications
Brand Name :
TOS
Model Number :
2SK3569
Certification :
Original Factory Pack
Place of Origin :
Japan
MOQ :
50pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
12000PCS
Delivery Time :
1 Day
Packaging Details :
TUBE
Temperature Range :
-55°C to +150°C
Typical Thermal Resistance :
50mA
Voltage :
600V
Forward Surge Current :
200mW
Package :
TO-220
Factory Package :
TUBE
Description

TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π-MOSVI)

2SK3569

Switching Regulator Applications

• Low drain-source ON resistance: RDS (ON) = 0.54Ω (typ.)

• High forward transfer admittance: |Yfs| = 8.5S (typ.)

• Low leakage current: IDSS = 100 μA (VDS = 600 V)

• Enhancement-mode: Vth = 2.0~4.0 V (VDS = 10 V, ID = 1 mA)

Electrical Characteristics (Ta = 25°C)

Characteristics Symbol Test Condition Min Typ Max Unit
Gate leakage current IGss VGS = ±25 V, VDS = 0 V - - ±10 uA
Gate-source breakdown voltage VGss IG = ±10 µA, VDS = 0 V ±30 - - V
Drain cut-off current IDss VDS = 600 V, VGS = 0 V - - 100 uA
Drain-source breakdown voltage VDss ID = 10 mA, VGS = 0 V 600 - - V
Gate threshold voltage Vth VDS = 10 V, ID = 1 mA 2.0 - 4.0 V

A part of stock list

DS18B20+ MAXIM 1603 TO-92
BTA41-800BRG STM 628 TO-247
IRF740 IR 508D TO-220
FT231XS-R FTDI 1605 SSOP-20
K9F1G08UOD-SCBO SAMSUNG 549 TSOP-48
B39440-X6764-N201 EPSON 2874 SIP-5
LM3578AM NSC CSRC SOP-8
MAX489CPD MAXIM 1618 DIP-14
AT89C2051-24PU ATMEL 1506 DIP-20
FR2J PANJIT 1628 SMB
UF5408 VISHAY 1632 DO-201
SMAJ250A LITTLEFUSE 16H128 SMA
DS1603 DAllas 9944A1/102795 DIP-7
93LC86C-I/SN MICROCHIP 1243 SOP-8
SMF3.3.TCT SEMTECH 1622/F03 SC70-5
DS1338Z-33+TR MAXIM 1630A3 SOP-8
GQM1885C1H150GB01D MURATA IA6903WR4 SMD0603
C0402C222K5RACTU KEMET 1603 SMD0402
GCM155R71H223KA55D MURATA IA6903WR4 SMD0402
C1608X5R1A475K080AC TDK IB16C15763SD SMD0603
C0402C473K9RACTU KEMET 1622 SMD0402
C0402C472K5RACTU KEMET 1603 SMD0402
CC0805KKX7R6BB106 YAGEO 1618 SMD0805
GRM31CR61E226KE15L MURATA IA6903WR4 SMD1206
CC0402KRX7R7BB103 YAGEO 1618 SMD0402
CC0603JRNP09BN120 YAGEO 1618 SMD0603
CC0603KRX5R8BB105 YAGEO 1618 SMD0603
RC0603FR-0715KL YAGEO 1636 SMD0603
RC0603FR-07232RL YAGEO 1619 SMD0603
RC0603FR-07240KL YAGEO 1617 SMD0603
